Chapter 17 Safe T
orque Off Function
C2000-HS
17-4
17-3-3

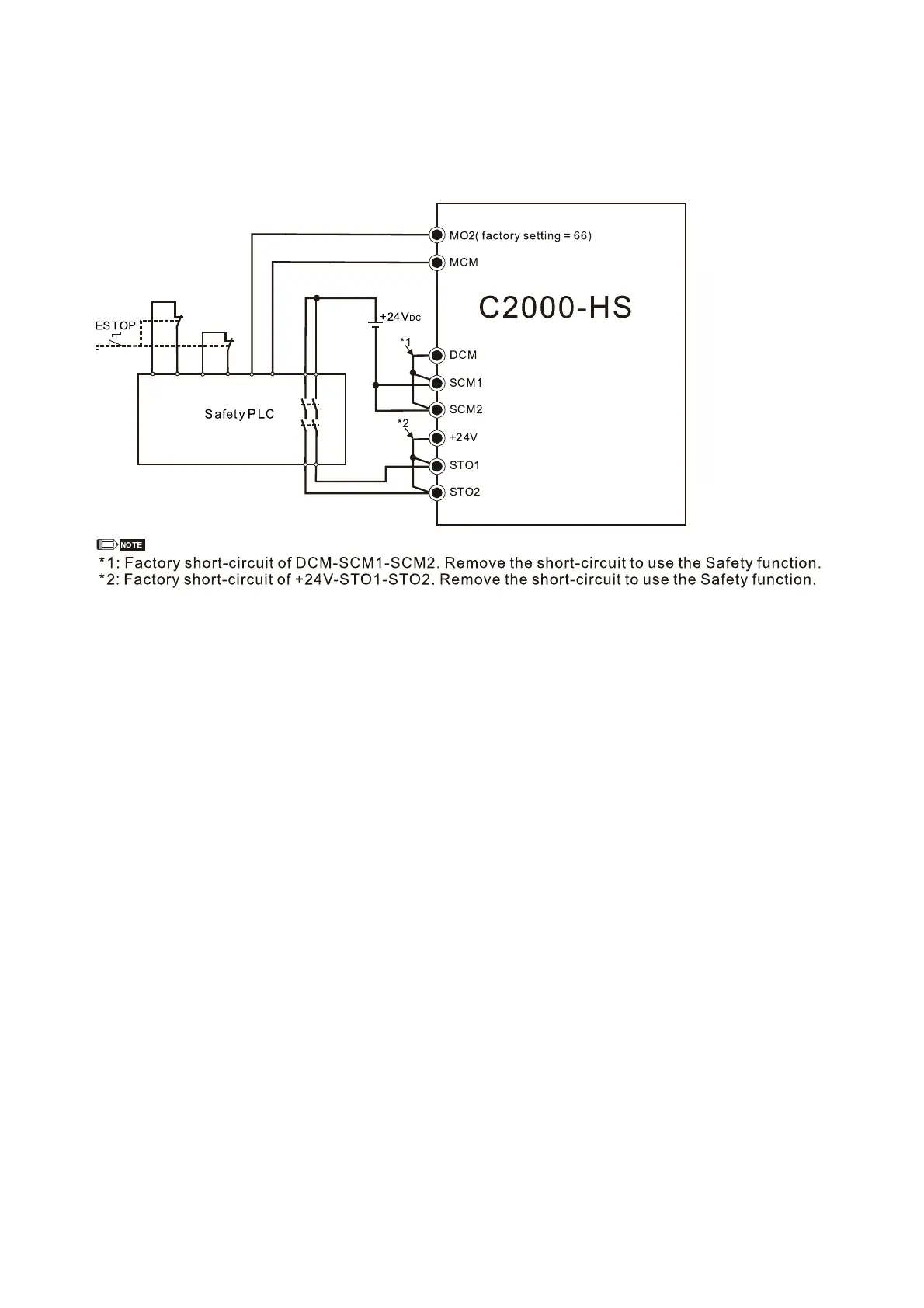

The control loop wiring diagram:
1. Remove the shot-circuit of +
24V
-STO1-STO2 and DCM-SCM1-SCM2.
2. The
wiring as
below diagram. The
ESTOP
switch must at
Clos
e status
in normal
situation an
d drive
will be able to Run.
3. STO mode, switch EST
OP open. Drive output stop and keyp
ad
display STO.
809
811
