Chapter 8 Option CardsC2000 Plus
8-32
PG
OUT
AO, /AO,
BO, /BO,
ZO, /ZO,
SG
PG Card Output signals. It has division frequency function: 1–255 times
Max. output voltage for Line driver: 5 V
DC
Max. output current: 15 mA
Max. output frequency: 600 kHz 5%
SG is the GND of PG card. It is also the GND of position machine or PLC
to make the output signal to be the common pivot point.
FSW1
Use FSW1 to switch the power of VP: +5V / +8V
NOTE:
1. Open Collector application, input current 5
–15 mA to each set then each set needs one pull-up resistor. If
input voltage of open collector is 24V, the power of encoder needs to be connected externally. Refer to
diagram 2 of PG2.
5V
Recommended pull-up resistor: above 100–220 , 1/2W
12V
Recommended pull-up resistor: above 510–1.35 k, 1/2W
24V
Recommended pull-up resistor: above 1.8k–3.3 k, 1/2W

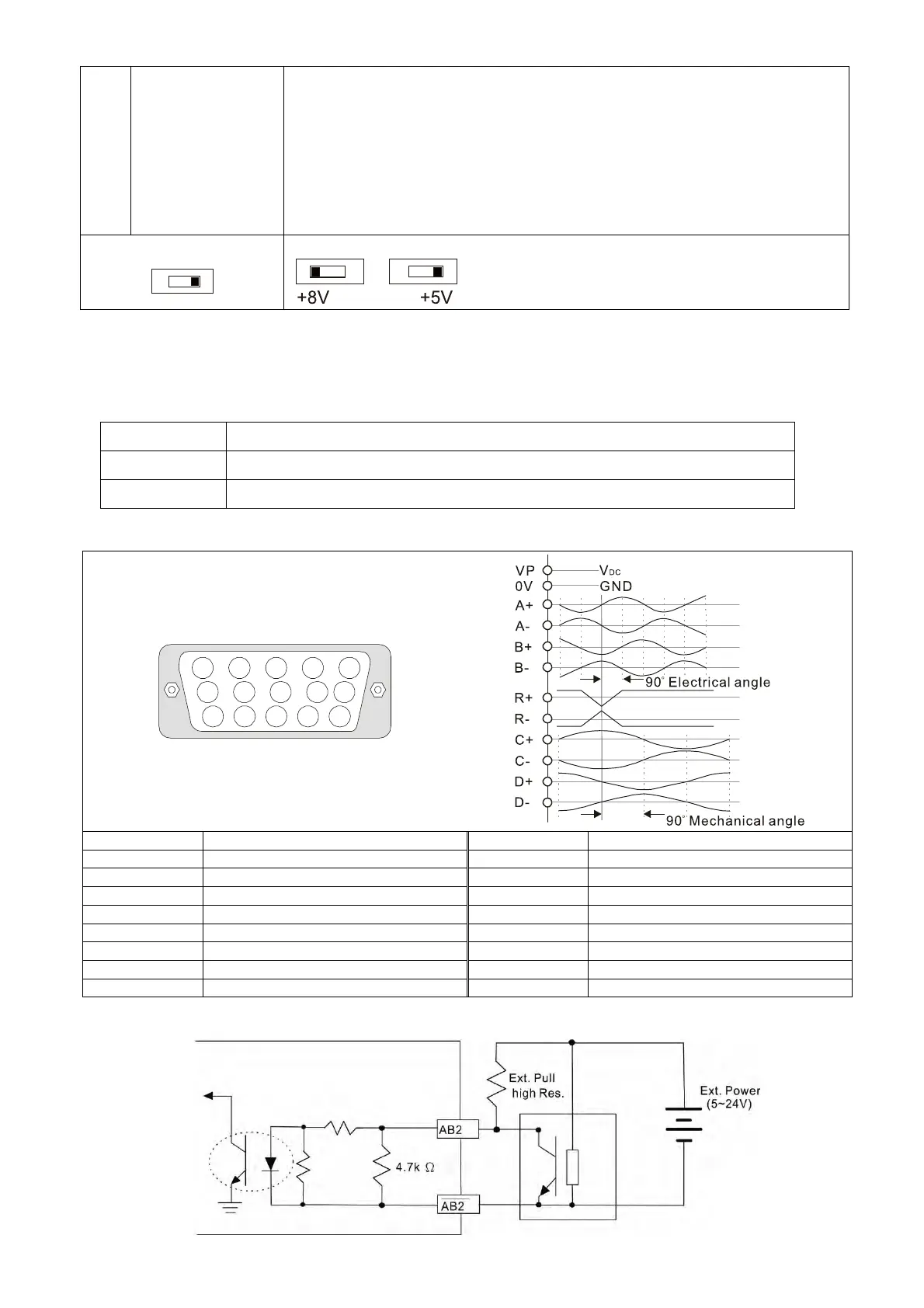

PG1 Terminal descriptions (15pin D-SUB female connector)
5
4
3
2
1
10 9 8 7
6
15
14
13 12
11
No. Terminals No. Terminals
1 B- 9 VP
2 NC 10 C+
3 R+ 11 C-
4 R- 12 D+
5 A+ 13 D-
6 A- 14 NC
7 DCM 15 NC
8 B+
PG2 wiring diagram
To Next Page
