Delta VFD450C43S-21 User Manual

Chapter 8 Option CardsC2000 Plus
8-33

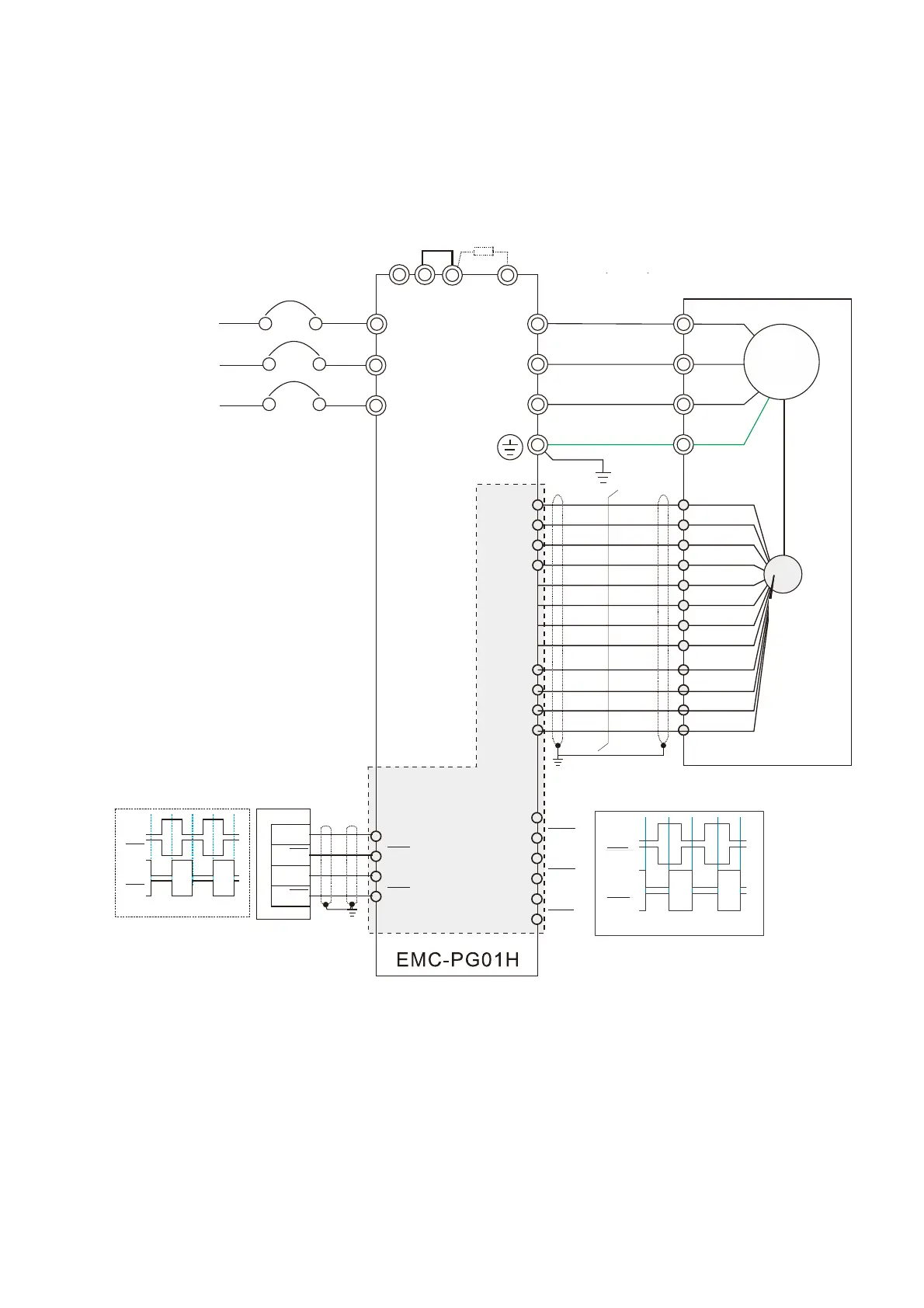

8-11-2 EMC-PG01H Wiring Diagram

Use a shielded cable to prevent interference. Do not run control wires parallel to any high voltage
AC power line (200 V
AC
and above).

Recommended wire size 0.2–0.75 mm
2
(24–18 AWG).

Cable length: PG1 input, less than 10 m; PG2 single-phase input, less than 30 m / two-phase input,
less than 100 m.
R/L1
S/L2
T/L3
無熔絲斷路器
NFB
R
S
T
+1
+2/B1
B2
U/T1
V/T2
W/T3
M
3~
制動電阻 選購()
馬達
短路片
-
U
W
V
VP
DCM
A+
B+
R+
PG
A2
A2
B2
B2
Y0
Y0
Y1
Y1
Y0
Y0
Y1
Y1
相位差90
o
AO
AO
BO
BO
ZO
ZO
AO
AO
BO
BO
相位差
90
o
A-
B-
R-
C+
D+
C-
D-
編碼器
Jumper
Braking resistor (optional)
No-Fuse Breaker
Phase difference 90
º
Line drive
Motor
