Chapter 10 Digital KeypadCP2000
10-16
When the setting value is 10 Min, the backlight
will be OFF in 10 minutes.

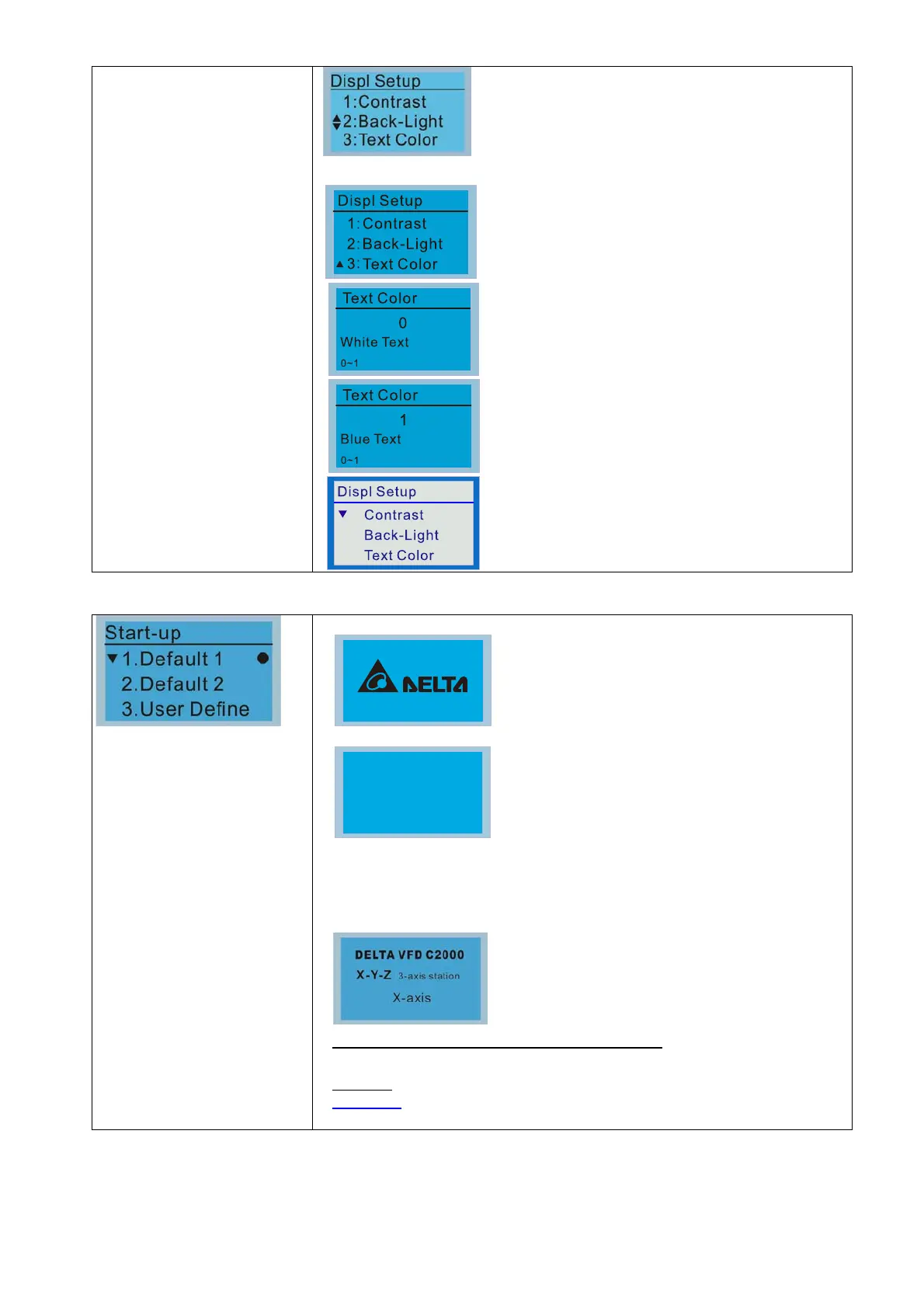

3. Text Color
Press ENTER to go to Text Color Setting
screen.
The default value is White Text.
Use Up / Down key to adjust the setting value.
1:
2:
3:
The setting value changes to Blue Text.
13. Start-up
1. Default 1 DELTA LOGO
Industrial Automation
2. Default 2 DELTA Text
Industrial Automation
CSeries
3. User Defined: optional accessory is require (TPEditor & USB / RS-485
Communication Interface-IFD6530)
Install an editing accessory would allow users to design their own start-up
page. If editor accessory is not installed, “user defined” option will display a
blank page.
USB/RS-485 Communication Interface-IFD6530
Please refer to Chapter 07 Optional Accessories for more detail.
TPEditor
Download TPEditor software at Delta website, select TPEditor version 1.60
or above. Refer to instruction for TPEditor in Chapter 10-3.
