Chapter 12 Description of Parameter SettingsCP2000
12.1-03-23


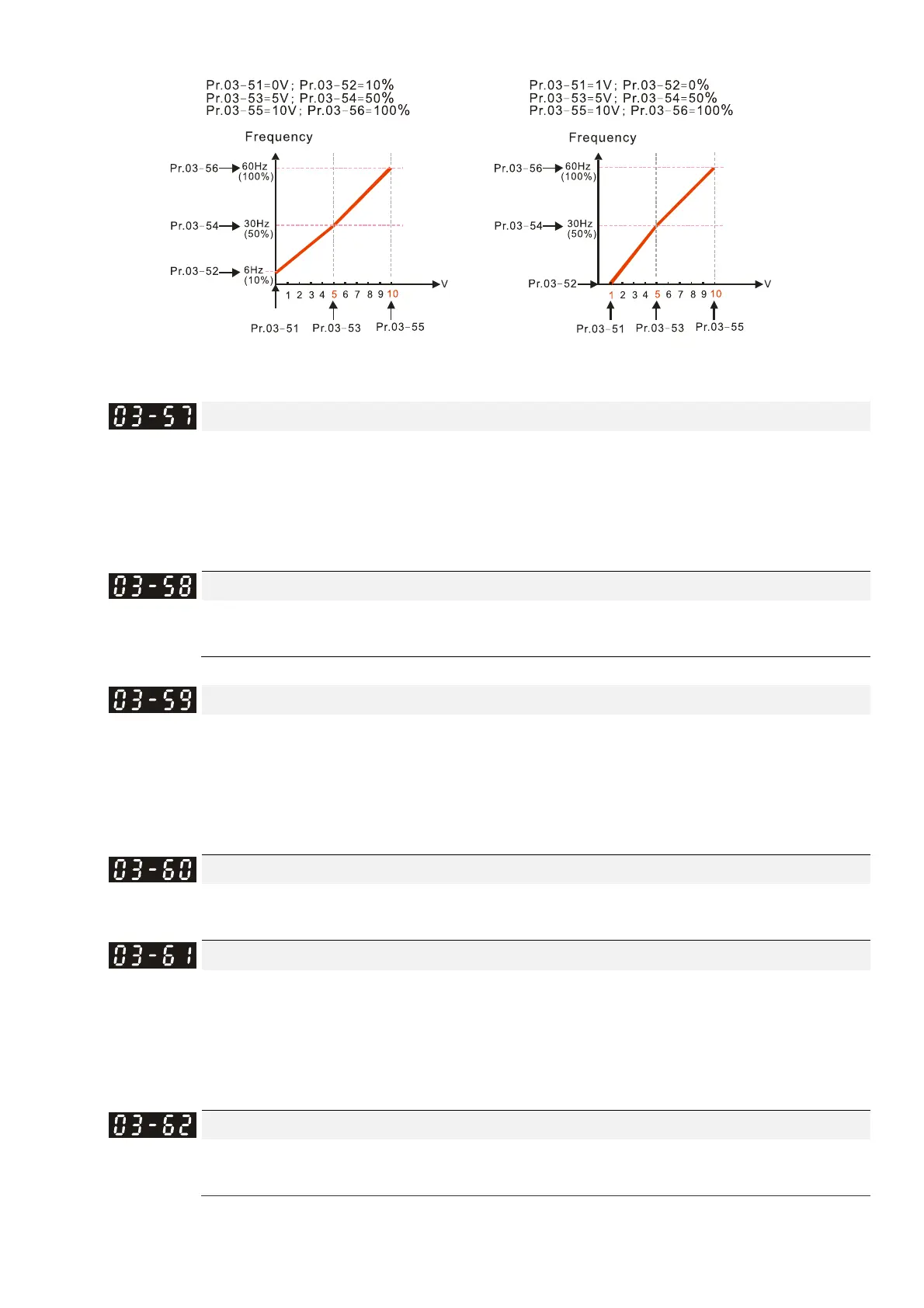

ACI Lowest Point
Default:
4.00 / 0.00 / 0.00
Settings Pr.03-29=0, 0.00–20.0 mA
Pr.03-29=1, 0.00–10.00 V
Pr.03-29=2, 0.00–20.00 mA

ACI Proportional Low Point
Default: 0.00
Settings -100.00–100.00%

ACI Mid-Point
Default:
12.00 / 5.00 / 10.00
Settings Pr.03-29=0, 0.00–20.00 mA
Pr.03-29=1, 0.00–10.00 V
Pr.03-29=2, 0.00–20.00 mA

ACI Proportional Mid-Point
Default: 50.00
Settings -100.00–100.00%

ACI Highest Point
Default:
20.00 / 10.00 / 20.00
Settings Pr.03-29=0, 0.00–20.00 mA
Pr.03-29=1, 0.00–10.00 V
Pr.03-29=2, 0.00–20.00 mA

ACI Proportional Highest Point
Default: 100.00
Settings -100.00–100.00%
 When Pr.03-29=1, ACI setting is 0–10 V and the unit is in voltage (V). When Pr.03-29≠1, ACI
