Chapter 2 Wiring | VFD-VJ
2-6
*1 Verify the polarity before using KTY84
*2

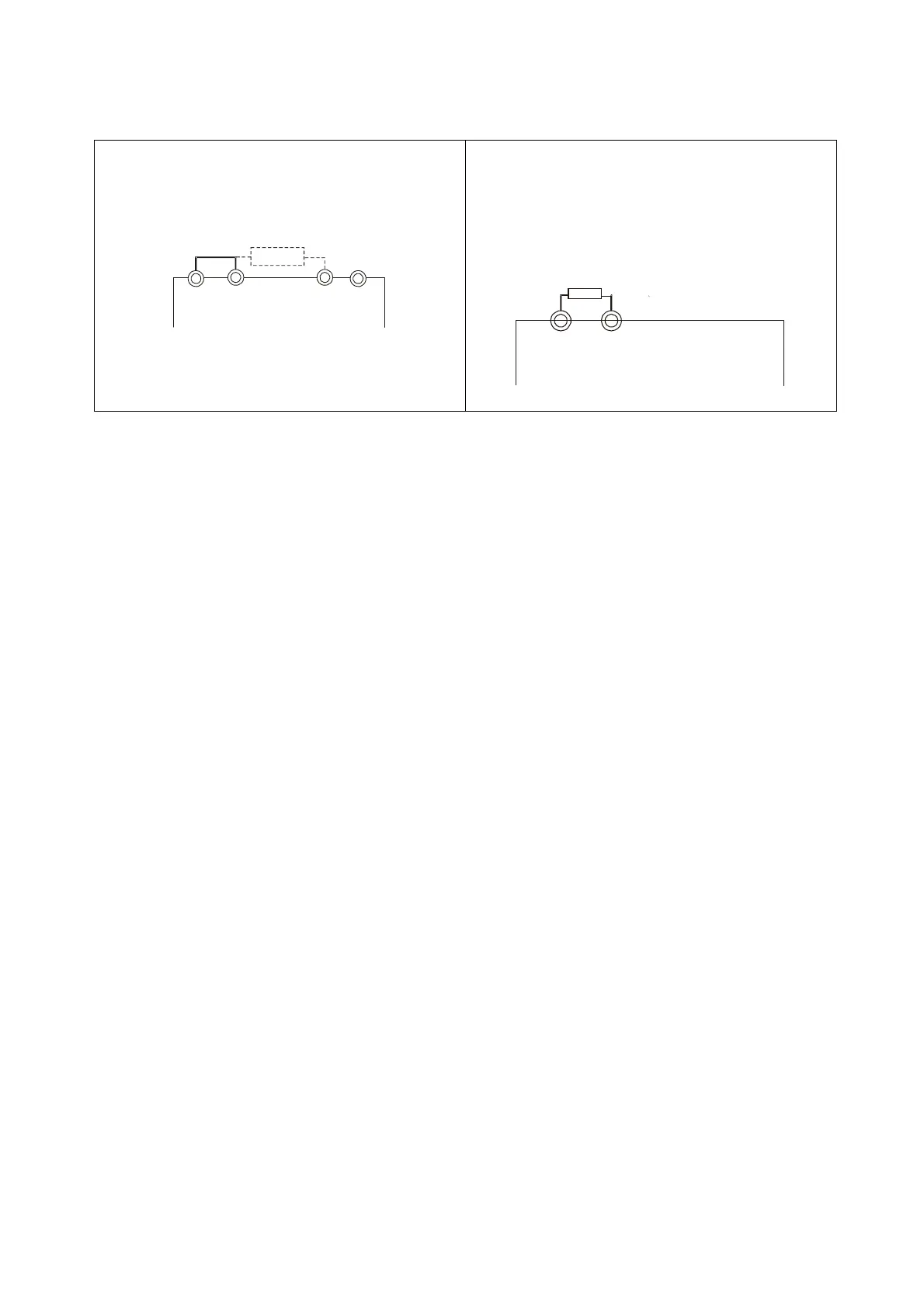

For 460V, 37kW (included) models and below:
(with built-in brake unit)
+1 +2/B1 B2
brake resistor
-
For 230V_30kW, 230V_37kW and 460V_45kW
(included) models and above:
(with built-in brake unit)
B1
B2
Brake Resistor
*3 The peripheral braid sleeve of the pressure sensors needs to shield completely the internal signal wires.
Make the signal wires which are not shielded by the braid sleeve as short as possible. Also bring signal
wires as close to the control terminals as possible. Connect the peripheral braid sleeve to PE grounding
terminal. If the impulse noise or any other noise is too strong, connect the signal wire to the ACM terminal
to eliminate noise.
