Chapter 9 SpecificationsMS300

191

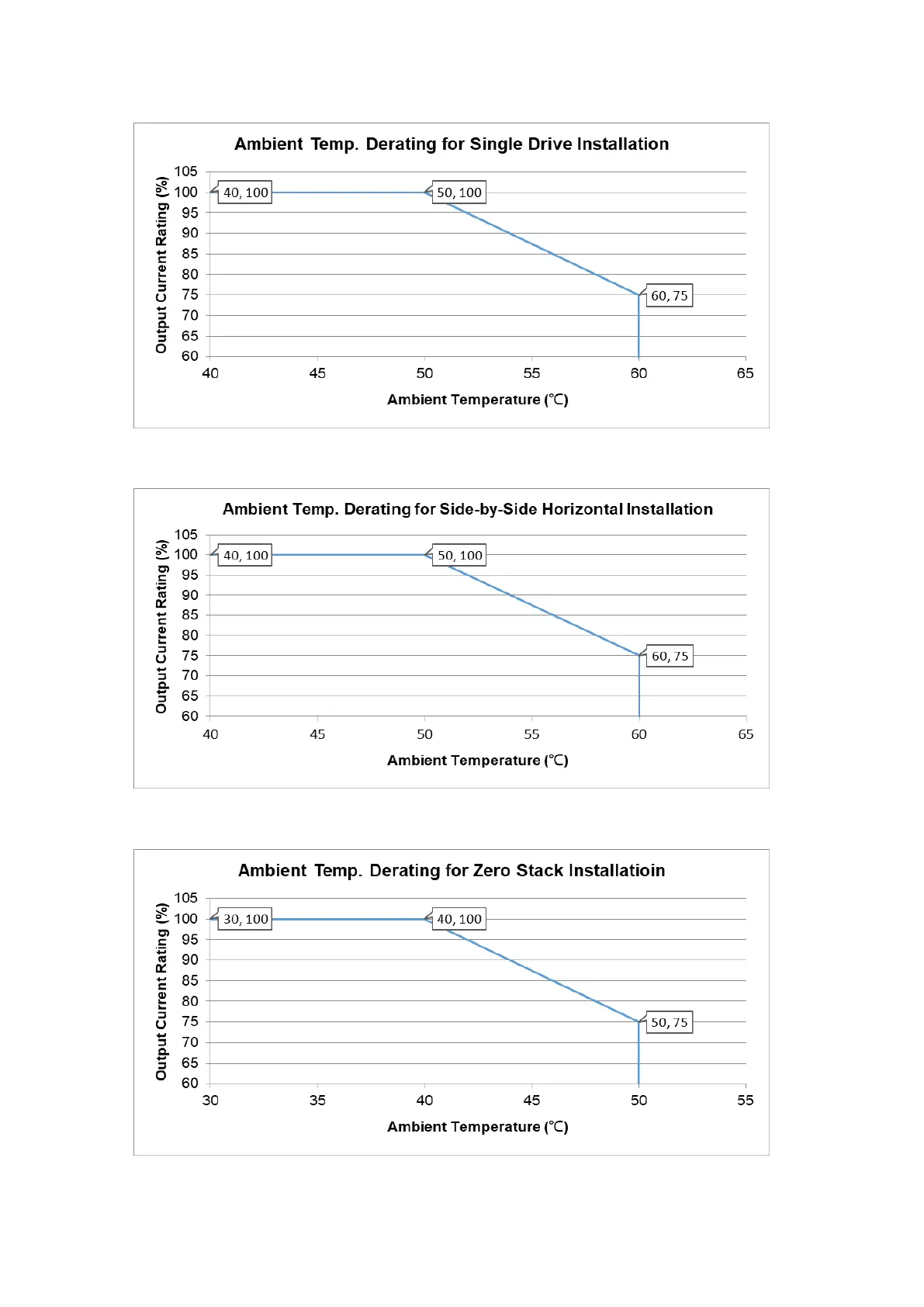

9-7-2 Derating Curve for Each Installation Method

 Single drive installation

Figure 9-4

 Side-by-side horizontal installation

Figure 9-5

 Zero-stack installation

Figure 9-6
