Chapter 5 Main Circuit TerminalsMS300
29
Remove the front cover
 Remove the front cover before wiring the main circuit terminals and control circuit terminals.
Remove the cover according to the figures below.
 The example uses the Frame A model. For different frame size models, use the same removing
method.

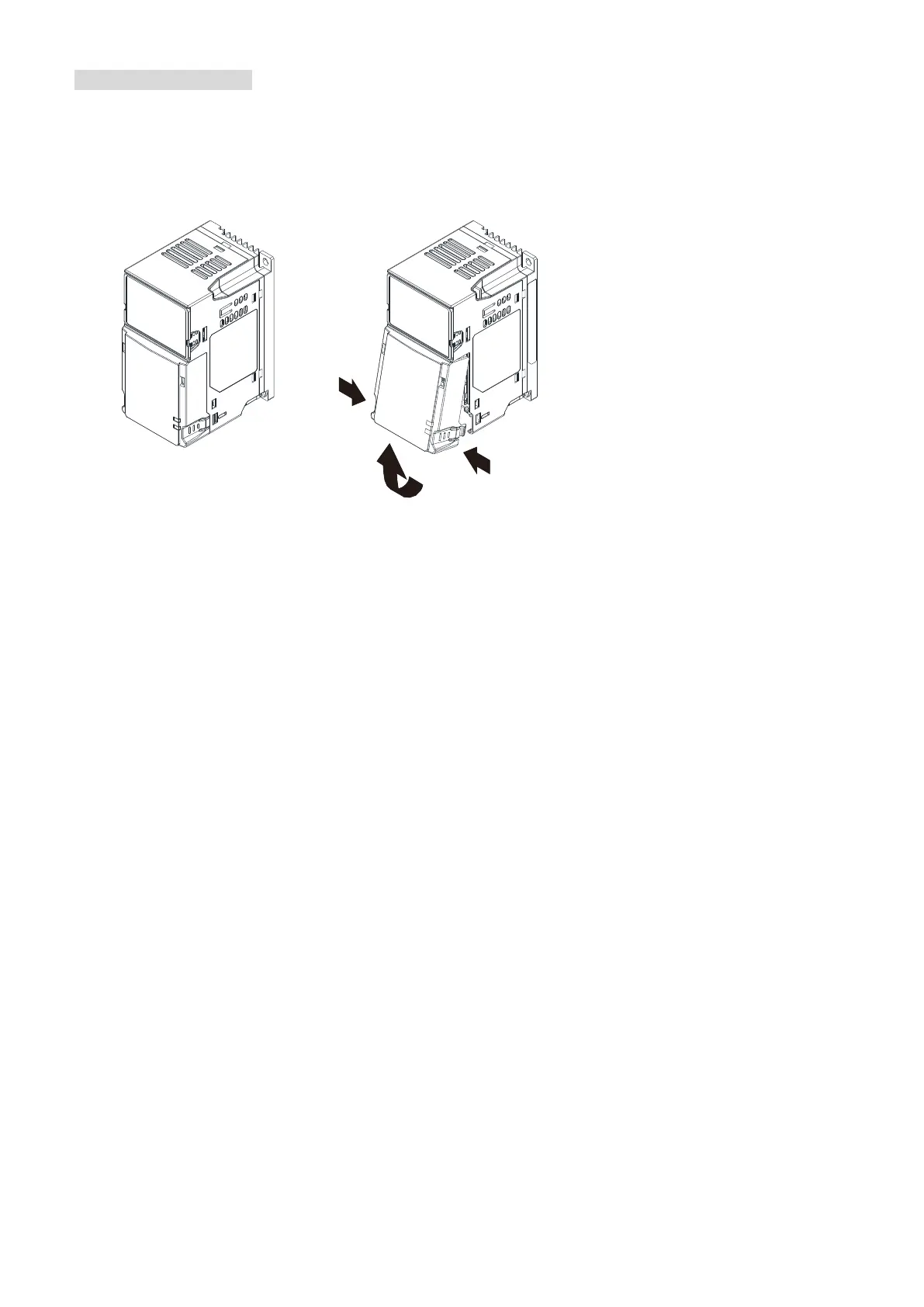

Figure 5-4
Press the clip on both sides, and then
remove the cover by rotating it.
