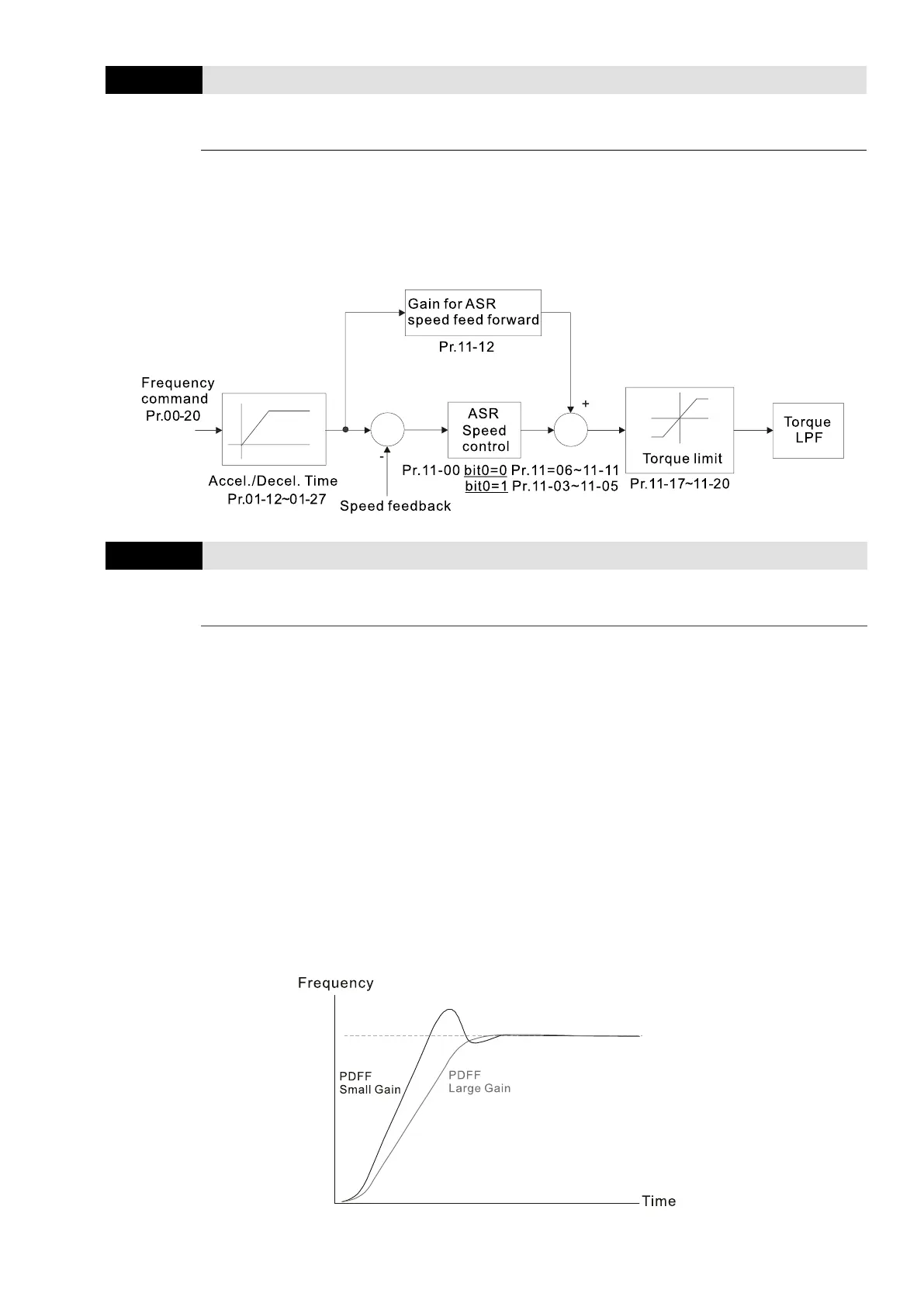

This function enables when Pr.11-00 bit 0 = 1.
Increase the setting for Pr.11-12 to reduce the command tracking difference and improve the
speed response. Use this function for speed tracking applications.
Set Pr.11-01 correctly to get excellent improvement of the speed response.
This parameter is invalid when Pr.05-24 = 1.
This parameter is valid only when Pr.11-00 bit0 = 1.
After you estimate and set Pr.11-00 bit0 = 1 (auto-tuning), use Pr.11-13 to reduce overshoot.
However, a shift of the curve may occur earlier. In this case, you can set Pr.11-13 = 0 first, and
then increase the setting value to "a condition with best acceleration and without overshoot"
when the acceleration time meets your application but overshoot occurs.
Increasing Pr.11-13 improves the overshoot of speed tracking, but an excessive value may
reduce the transient response.
Increasing Pr.11-13 enhances the system stiffness in high-speed steady state and reduces the
speed transient fluctuation at a sudden loading.
Ensure that you set the Pr.11-01 system inertia correctly to get excellent improvement of the
speed response.
