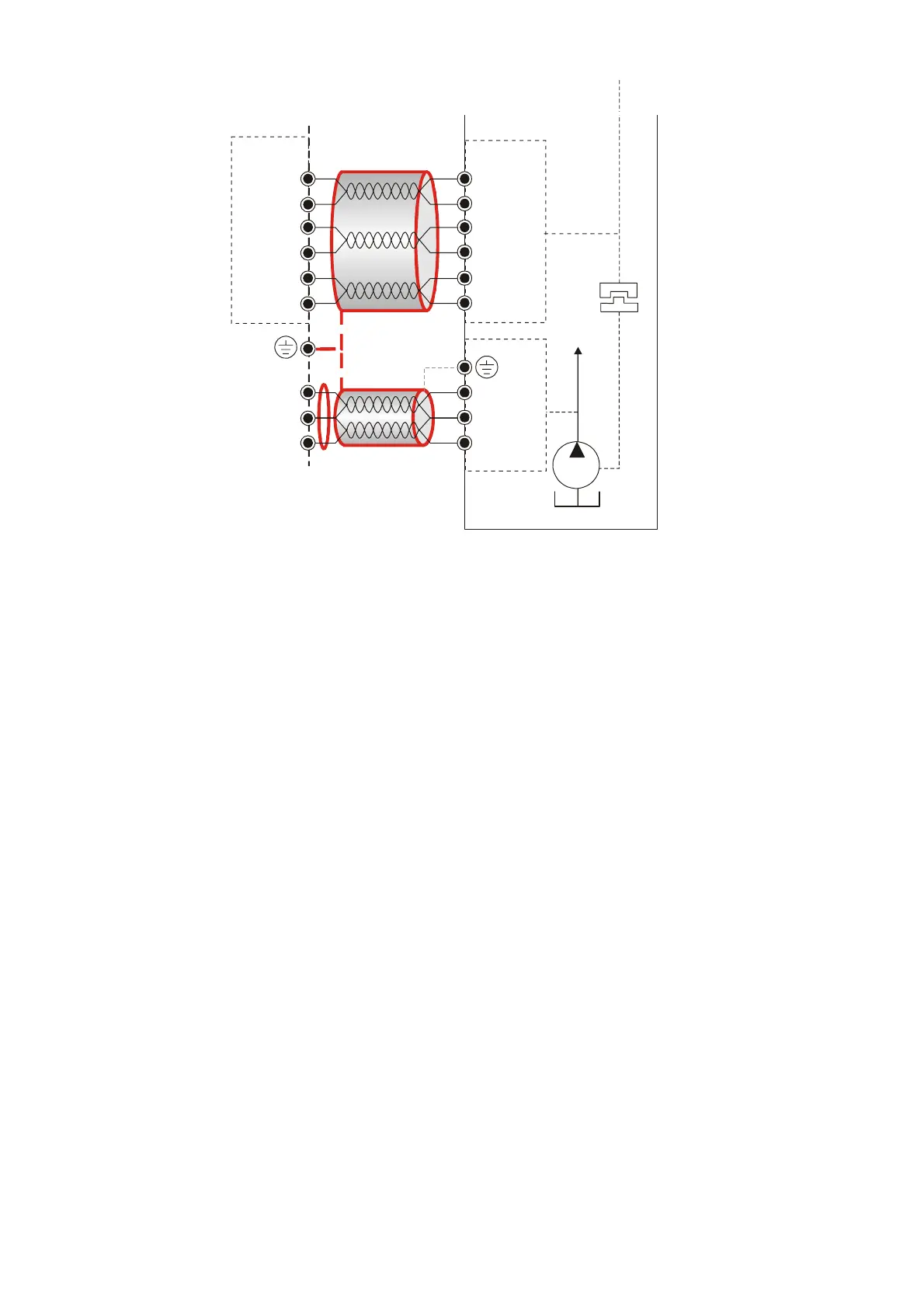

3. Machine Adjustment Procedure
3-15
R1
R2
S2
S4
S1
S3
PG Card
14,16
13,15
5
4
7
9
Resolver
+V
-V
+24V
ACM
Output
PO
Pressure sensor
4. If there is any abnormal condition that can not be solved, please contact the manufacturer.
Step 8. Adjustment of system transient response
Reduce the pressure rise time, increase Kp1 (Parameter 00-20) and reduce the Ki1 time
(Parameter 00-21)
For pressure overshoot, increase the Kp3 time (Parameter 00-24) and reduce the Ki3 time
(Parameter 00-25)
