Delta VFD750C43A-HS User Manual

Chapter 9 Specification C2000-HS
9-6
9-4 Derating Curve of Ambient Temperature
Table 9-5

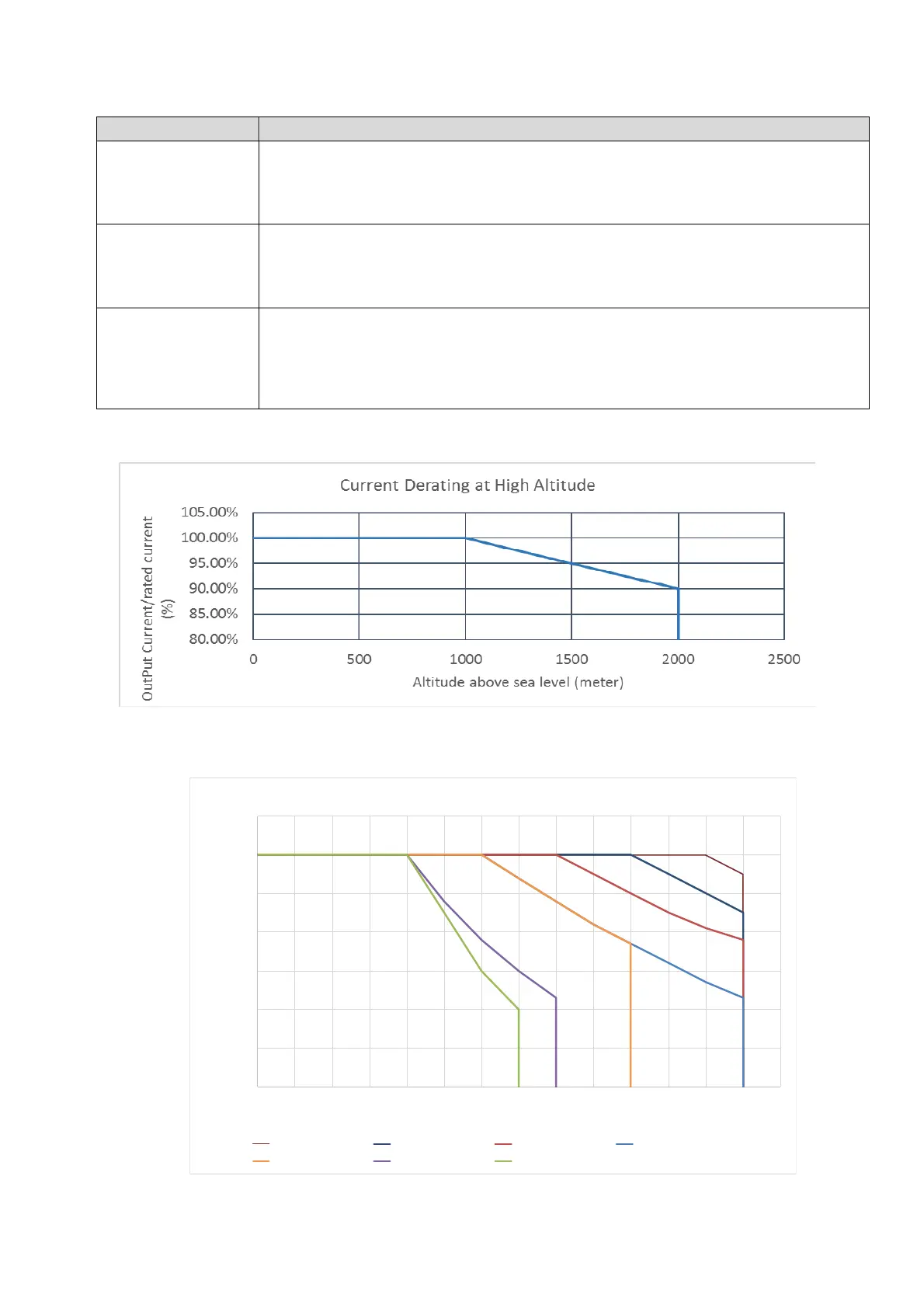

Current derating at high altitude
Figure 9-2
Advanced Control Ambient Temperature Derating Curve
40%
50%
60%
70%
80%
90%
100%
110%
2345678910111213141516
Ratio
Fc (kHz)
C2000‐HSDeratingCurve
VFD300C43A-HS VFD370C43A-HS VFD750C43A-HS VFD1100C43A-HS
VFD1600C43A-HS VFD2200C43A-HS VFD3550C43A-HS
Figure 9-3
Protection Level Operating Environment
UL Type I / IP20
(Install conduit box)
When the AC motor drive is operating at the rated current and the ambient temperature
has to be between -10°C– +40°C. When the temperature is over 40°C, for every
increase by 1°C, decrease 2% of the rated current. The maximum allowable
temperature is 60°C.
UL Open Type / IP20
When the AC motor drive is operating at the rated current and the ambient temperature
has to be between -10°C– +50°C. When the temperature is over 50°C, for every
increase by 1°C, decrease 2% of the rated current. The maximum allowable
temperature is 60°C.
High Altitude
If AC motor drive is installed at altitude 0–1000m, follow normal operation restriction. If
it is install at altitude 1000–2000m, decrease 1% of rated current or lower 0.5°C of
temperature for every 100m increase in altitude. Maximum altitude for Corner
Grounded is 2000m. Contact Delta for more information, if you need to use this motor
drive at an altitude of 2000m or higher.
