Chapter 5 Main Circuit TerminalsC2000-HS
5-5

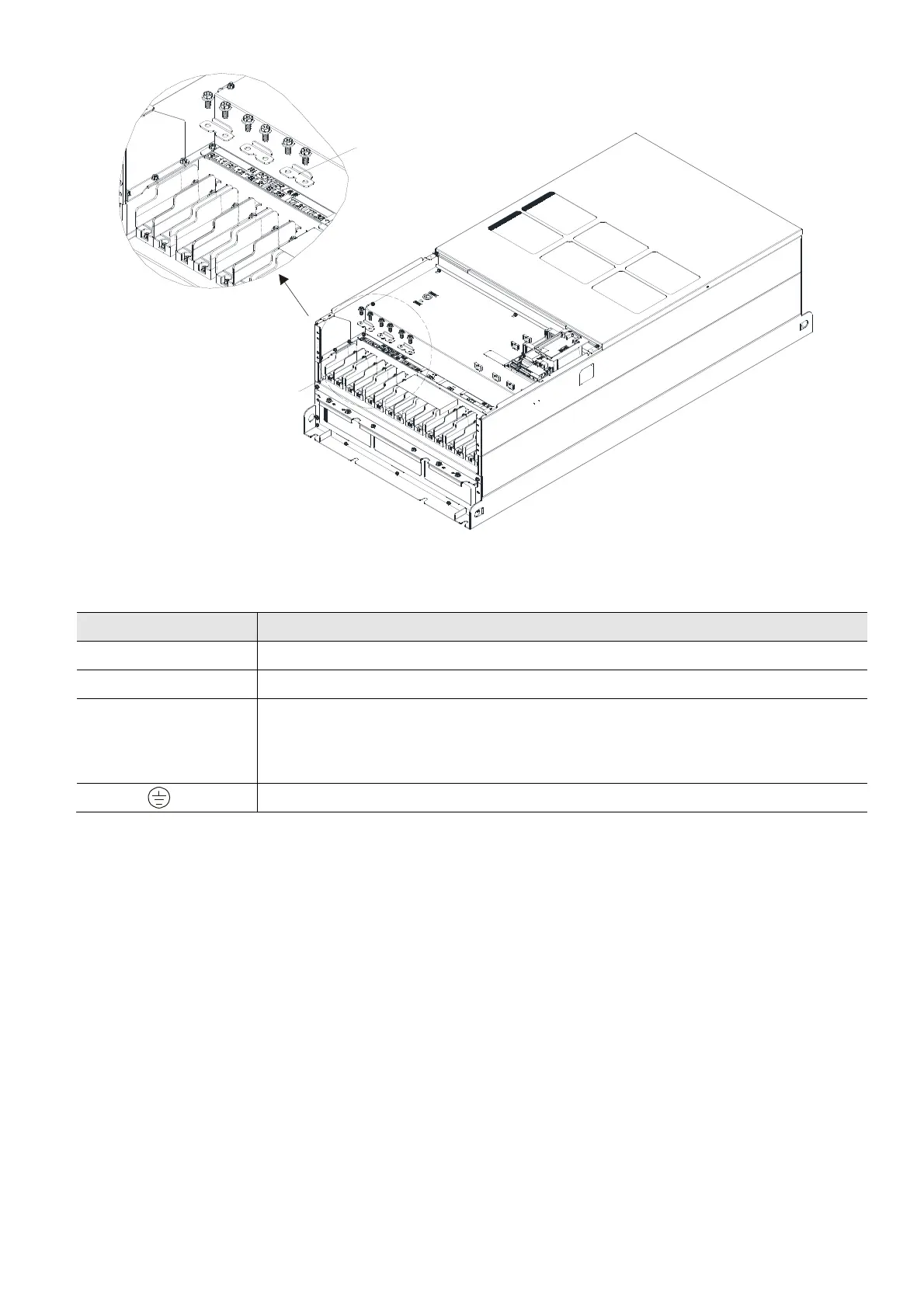

Figure 5-5
Terminals Descriptions
R/L1, S/L2, T/L3 AC line input terminals 3-phase
U/T1, V/T2, W/T3 AC drive output terminals for connecting 3-phase induction motor
+1/DC+, -/DC-
Connections for brake unit (VFDB series)
(for 460V models: ≤ 30kW, built-in brake unit)
Common DC-BUS
Earth connection, please comply with local regulations.
Table 5-1
Fasten the screw after the copper is removed.
Screw torque: 100–110 kg-cm / [ 86.8–95.5 lb-in.] / [9.8–10.8 Nm]
Detail A
See
Detail A
To Next Page
