Chapter 16 PLC Function ApplicationsC2000-HS
16-8

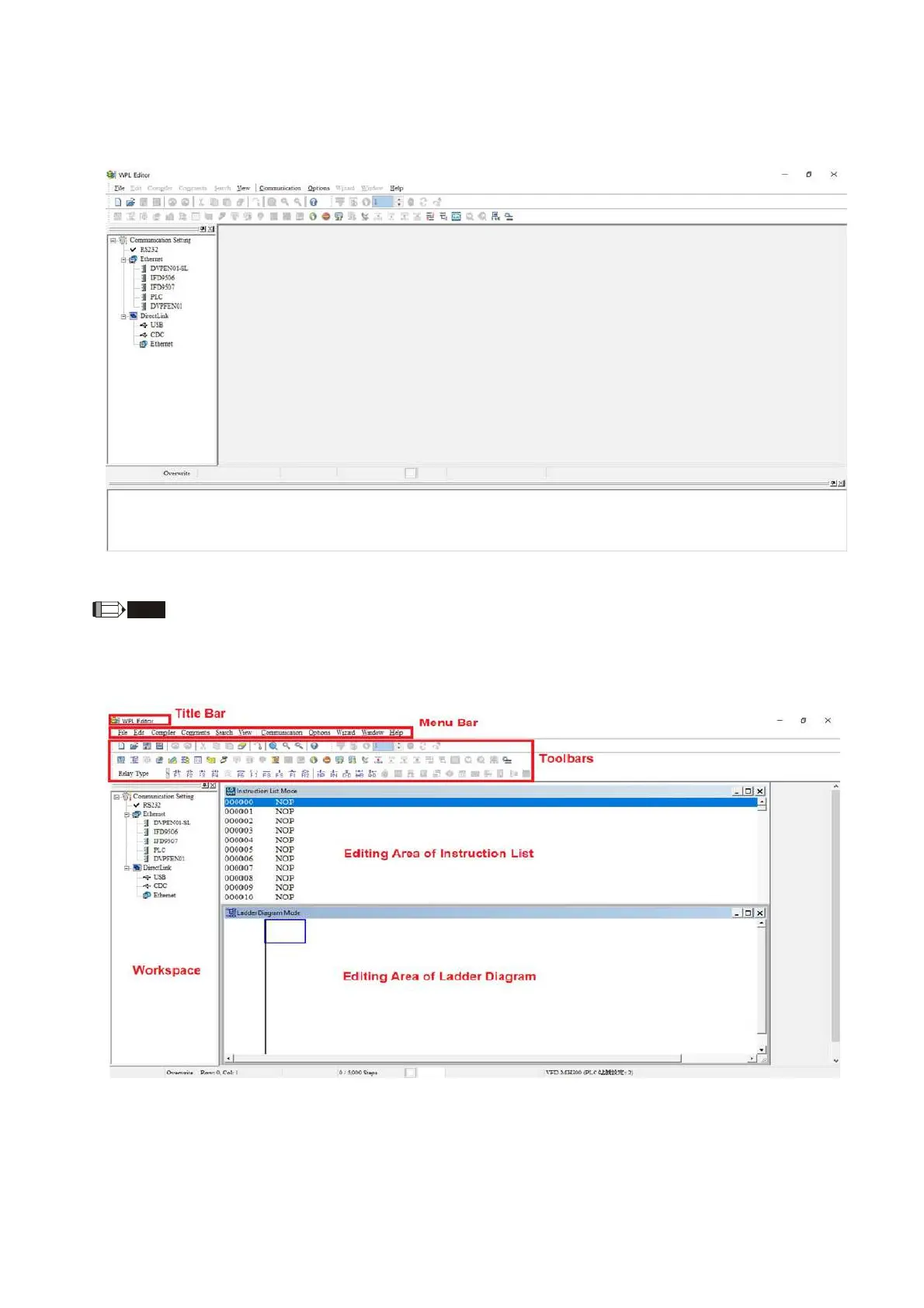

Step 2: The WPLSoft editing window appears (see figure 16-2 below). When running WPLSoft for the
first time, before "New file" has been used, only the "File (F)," "Communications (C)," View
(V)," "Options (O)," and "Help (H)" columns will appear on the function toolbar.
Figure 16-2
NOTE
After running WPLSoft for the second time, the last file edited will open and be displayed
in the editing window. The following figure 16-3 provides an explanation of the WPLSoft editing
software window:
Figure 16-3
