Delta VFD7A5MS21ANSAA User Manual

Chapter 7 Optional AccessoriesMS300
72

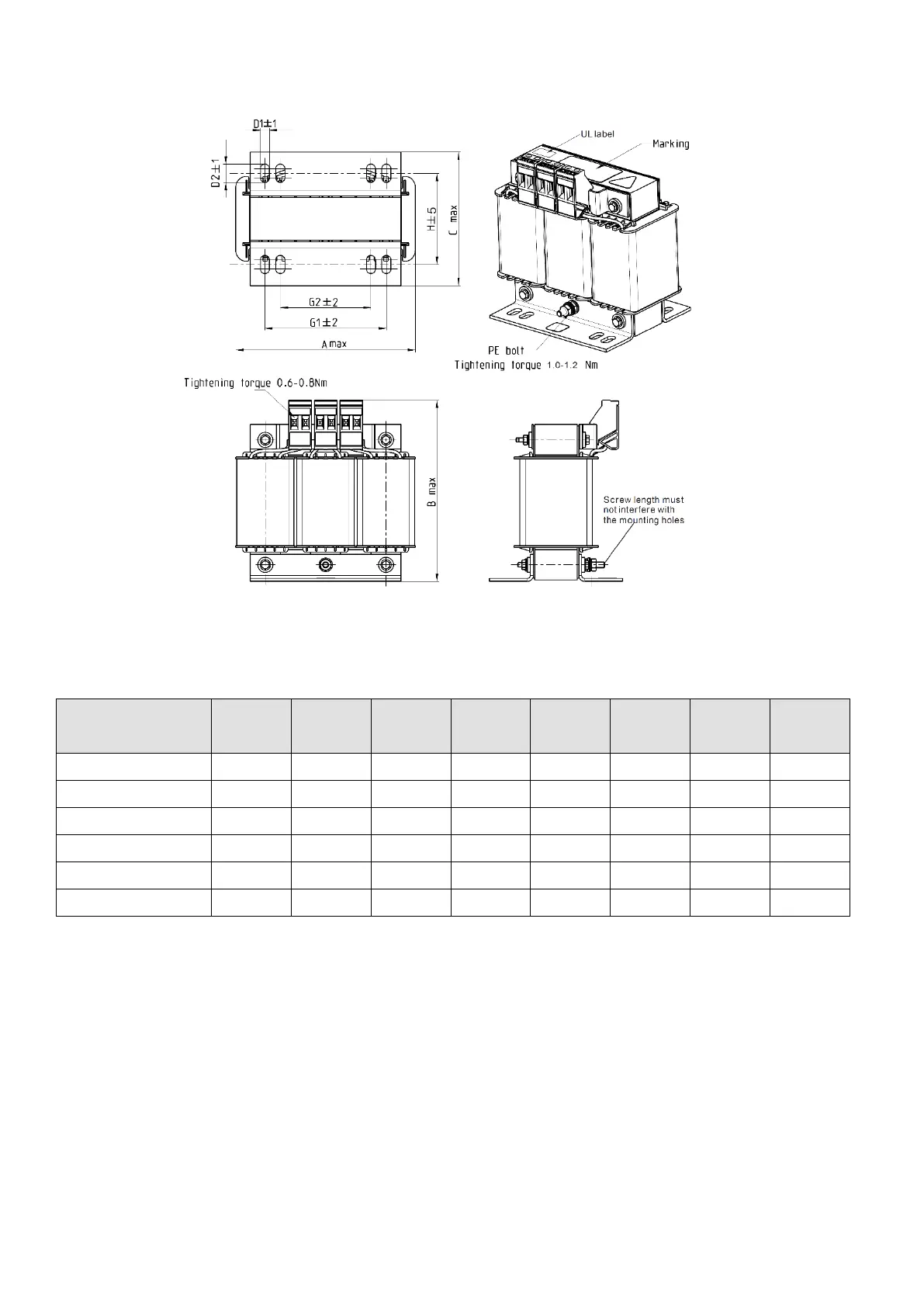

AC Output Reactor:
Figure 7-14
Unit: mm
AC Output
Reactors
Delta Part #
A
B
C
D1*D2
E
G1
G2
PE D
DR005L0254
96
110
70
6*9
42
60
40
M4
DR008L0159
120
135
96
6*12
60
80.5
60
M4
DR011L0115
120
135
96
6*12
60
80.5
60
M4
DR017LP746
120
135
105
6*12
65
80.5
60
M4
DR025LP507
150
160
120
6*12
88
107
75
M4
DR033LP320
150
160
120
6*12
88
107
75
M4
Table 7-30
