NO.6 Detailed Function Description
Figure 6-12.

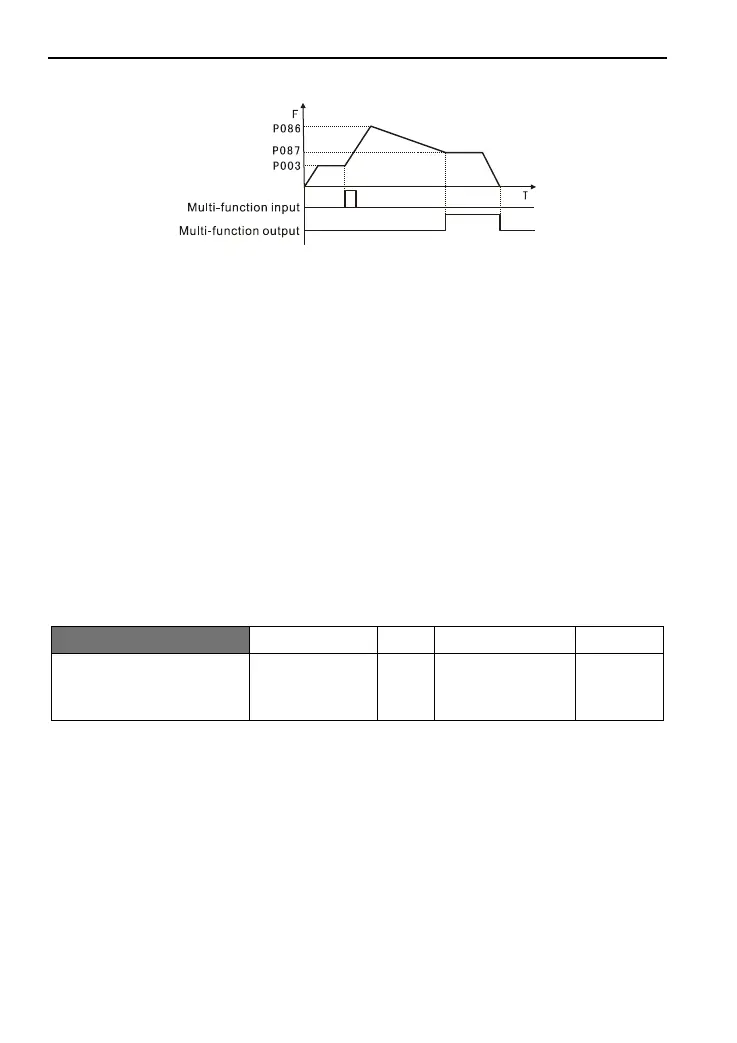

Figure 6-12 Daft Actuation Curve
[Description] 1) Draft will be actuated upon triggering of the external multi-function
terminal.
2) During draft actuation, running time T is P101×10.
3) After the completion of draft actuation, the inverter outputs at a constant speed
(P087), and corresponding multi-function output contacts are actuated until the stop
command is issued, and then, the inverter stops running, and multi-function output
contact resets.
5: Disturbance (traverse function) This parameter is specific for the chemical fiber, printing
and dyeing; any command input, except stop, external fault, and emergency stop in the
running, is not accepted.
[Description] 1) Each frequency of the turning point is determined by P003 and P086;
2) The hopping frequency is determined by P092;
3) The running time is determined by P101 and P102;
4）Related parameters：P003 and P086-P116.
Running mode selection of
internally controlled
multi-segment speed
0: Program running stops after one cycle
1: Circular running
2: Automatic running (stop interval) stops after one cycle
3: Automatic running (stop interval) in circular running.
This parameter setting is only effective when P080 is set as 4. Refer to P003, P080, and
P082-P116 for related parameters.
[Description] 1) Program running stops after one cycle: the inverter runs at the set
value of internal parameters after the command of automatic program running is given,
and stops automatically after running for one cycle. The inverter can restart after the
second running command is given.
