NO.6 Detailed Function Description
51
2) Circular running: the inverter runs in sequence and circularly at the set value of
internal parameters for segment speed frequency and running time; any command
input, except stop, external fault, and emergency stop in the circular running, is not
accepted.
3) Automatic running (stop interval) stops after one cycle.

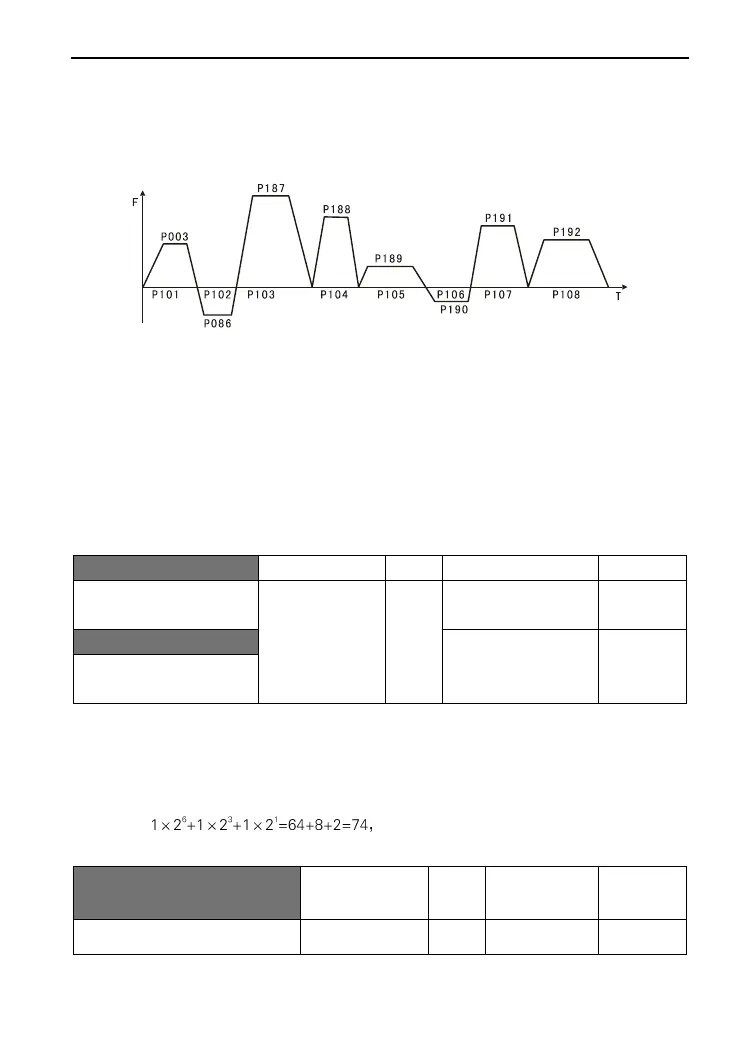

Figure 6-13 Running Curve and Control Parameters for Internally Controlled Multi-segment
Speed
[Description] 1) The inverter runs according to parameters after the command of
automatic programming running is given, but stop first and then restart in the
transformation of each stage; stop automatically after running for one cycle, and the
inverter restarts after the second running command is given;
2) The frequency for each segment speed is set by P003 and P086-P092;
3) The running time for each segment speed is set by P101-P108;
4) The running direction is set by P082.
Speed running direction
of first 8 segments
Speed running direction
of last 8 segments
This parameter set is only effective when P080 is set as 1. The setting mode of running
direction for frequency band of P086-P092 and P003 in the programming running is as
follows:
The running direction is set by binary 8bit which can be changed into decimal value for the
parameter setting. For example, parameter value 01001010 can be changed into decimal
value, i.e., P082=74. P083 is set for the speed running
direction of last 8 segments (calculation method is as the same as that for P082).
Acceleration/deceleration time
