Deming 5063 - Cross-Sections & Parts List

13

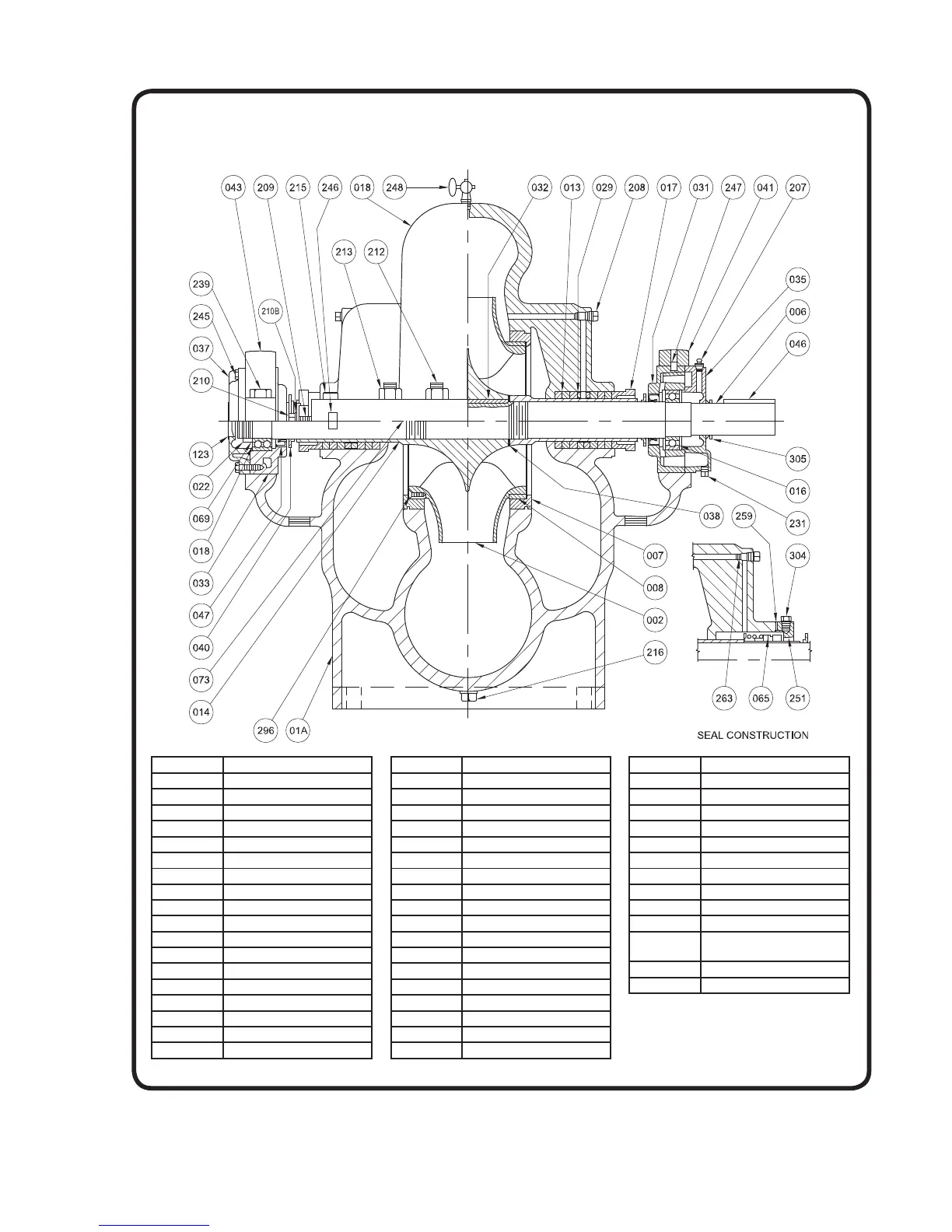

FIG. 5060 SERIES
HORIZONTAL - GREASE LUBRICATED
ITEM No.DESCRIPTION
1ALower Half Casing
1BUpper Half Casing
2Impeller
6Pump Shaft
7Casing Ring
8Impeller Ring
13Packing
14Shaft Sleeve
16Ball Bearing (inboard)
17Split Gland
18Ball Bearing (outboard)
22Lock nut
29Lantern Ring
31Bearing Housing (inboard)
32Impeller Key
33Bearing Housing (outboard)
35Bearing Cover (inboard)
37Bearing Cover (outboard)
ITEM No.DESCRIPTION
38Shaft Sleeve Gasket
40DeÀ ector
41Bearing Cap (inboard)
43Bearing Cap (outboard)
46Coupling Key
47Lip Seal
65Mechanical Seal
69Lock Washer
73Parting Gasket
123Bearing End Cover
206Gland Clips
207Grease Fitting
208Pipe Plug
209Swing Bolt
210Nuts
210BWasher
212Studs
213Nuts
215Cap Screws
ITEM No.DESCRIPTION
216Pipe Plug
231Pipe Plug
239Cap Screws
245Cap Screws
246Dowel Pin
247Dowel Pin
248Pet Cock
251Seal Gland
259Seal Gasket
263Pipe Plug (Socket Head)
When Speci¿ ed
296Set Screws
304Pipe Plug
