3.3 Rear Panel

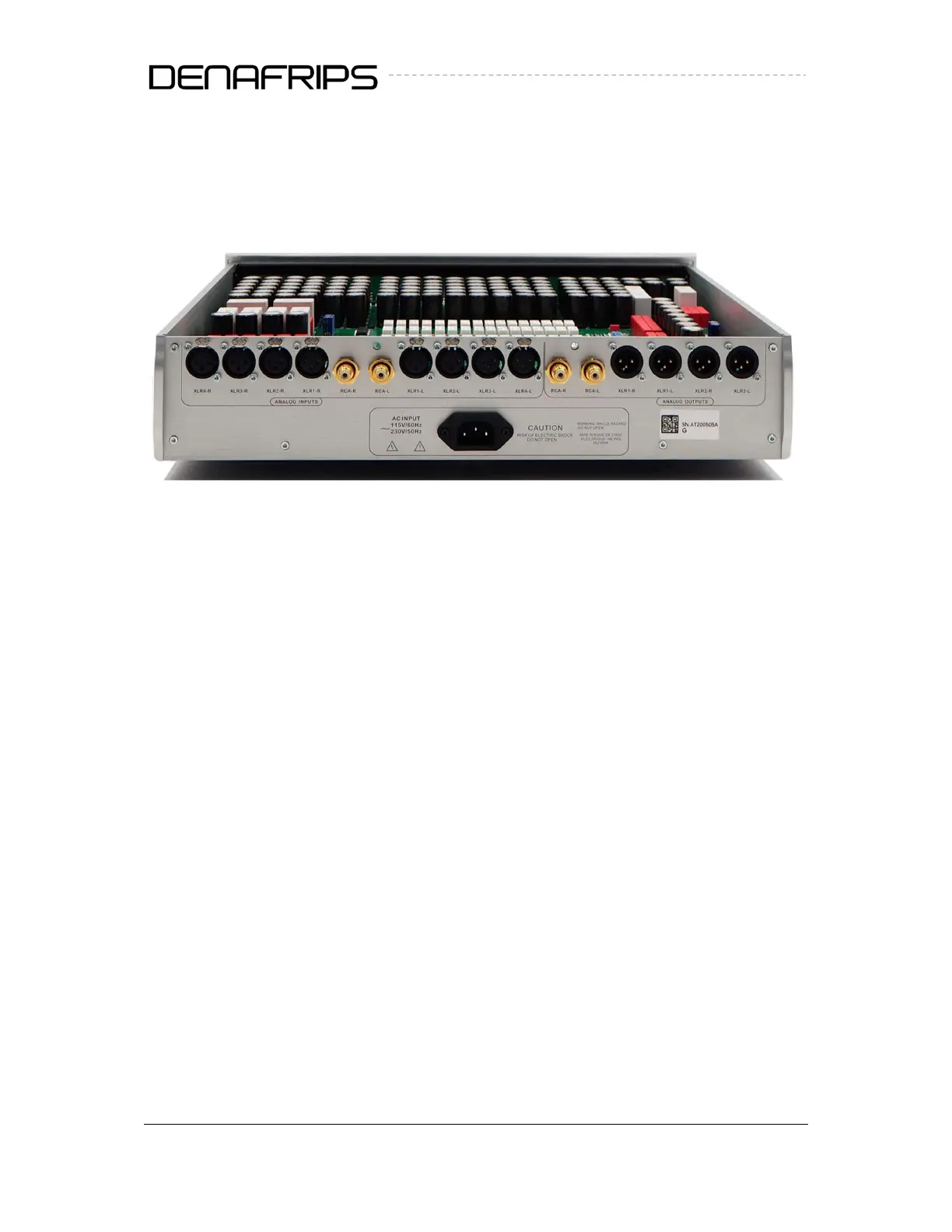

Figure 2. Read Panel

Description:

(1) AC Power Supply

CAUTION! ATHENA supports worldwide AC mains, range from 100-250VAC. The Please use a

good quality power cord with earth/ground pin connected

(2) Analog Inputs

Connected the input sources cable to the desire input XLR1/XLR2/XLR3/RCA. XLR4 is

recommended for user with one source, i.e. DENAFRIPS DAC. The ATHENA is a true balanced

PREAMP with XLR (Pin 2 Hot, Pin 3 Cold, Pin 1 Gnd).

(3) Analog Outputs

All outputs are active at the same time. Connect desire output to the power amplifier. When

use with single-ended input source, the XLR outputs are active.
