1. Device Overview
1.1 - Overview of Device
DENALIELECTRONICS.COM
1.2 - Overview of System Features
The two auxiliary light circuits enable independent adjustment of high and
low beam brightness right from the vehicle’s “WonderWheel”. It also
features a “flash to pass” and “strobe when horn active” setting that will
strobe the auxiliary lights when you pulse your high beam switch or sound
your horn.
The feature-rich brake light circuit will transform a simple 2-wire brake light
into a “smart brake light” complete with running light, multiple flash
patterns, and deceleration activated braking functionality.
The horn circuit enables the addition of an auxiliary horn without having to
add a relay and dedicated horn wiring harness.
For a full list of features and available settings refer to Section 6.
The DENALI CANsmart™ Controller provides plug-n-play installation and
integrated control of up to four accessories to enable dozens of customiz-
able settings that can be controlled right from the BMW Multi Controller or
the CANsmart™ Accessory Manager Software.
The four circuits are pre-programmed to connect and independently control
two sets of DENALI 2.0 lights, a SoundBomb horn, and our B6 auxiliary
brake light. However, our Circuit Function Selector in the CANsmart
software will let you run any accessory of your choice on any of the four
circuits.

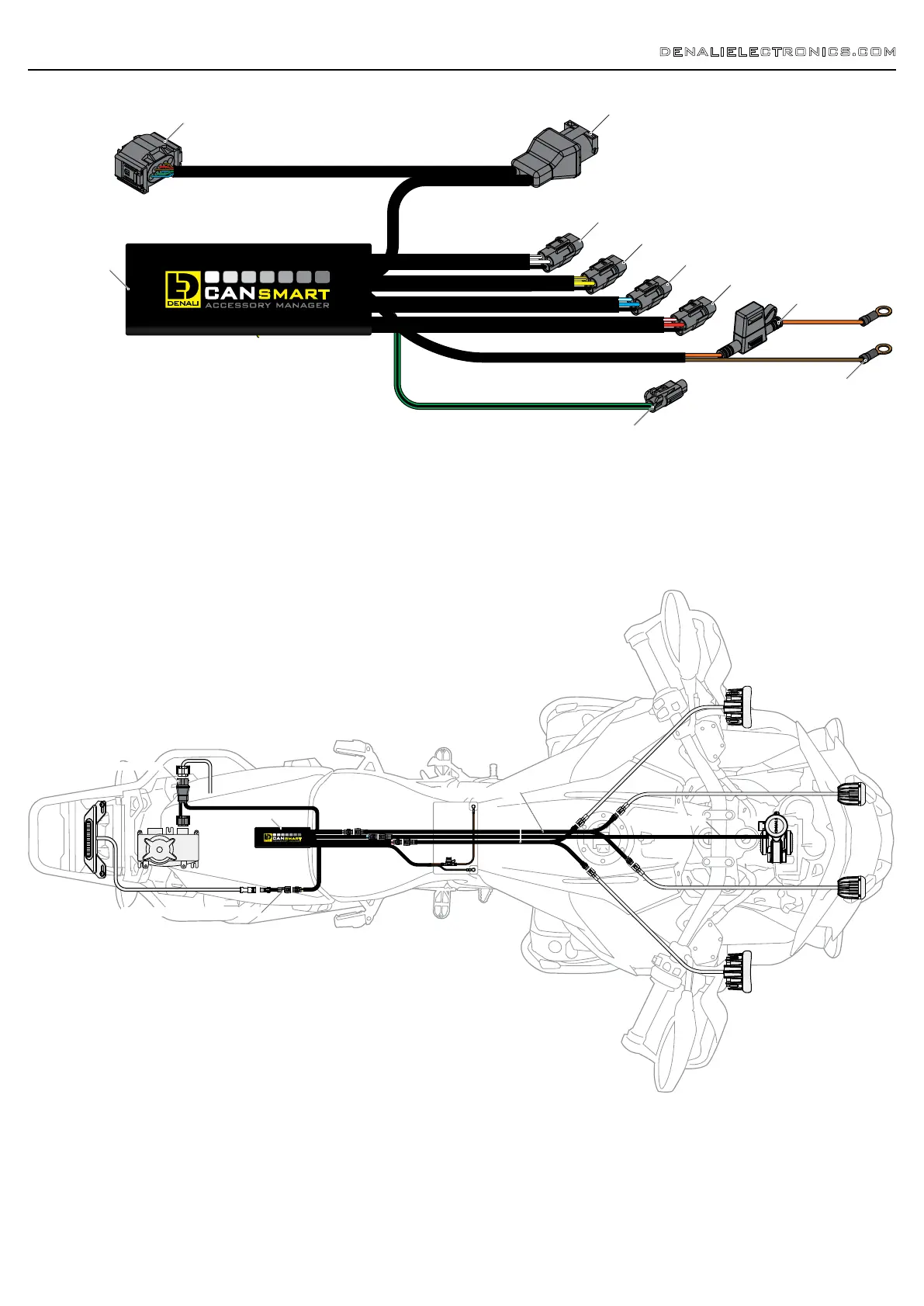

The illustration above depicts the preprogrammed default configuration, to
see a all available circuit functions and settings please refer Section 6 or
visit our online user guide at: DENALIelectronics.com/cansmart-user-guide
Brake Light Wiring Adapter
Horn Extension
Light Extensions
CAN bus Connector
Horn Input
CAN bus Pass Through Male
CAN bus Pass Through Female
Battery Terminals
LED Light Circuit Two
Brake Circuit
Horn Circuit
LED Light Circuit One
Fuse Holder
Micro USB Port
CANsmart™
CAN bus Connector
