CAIRplus Assembly
PR-2009-0096-GB • Subject to modifications • R8-10/2015 37
Centrally-split roof panels

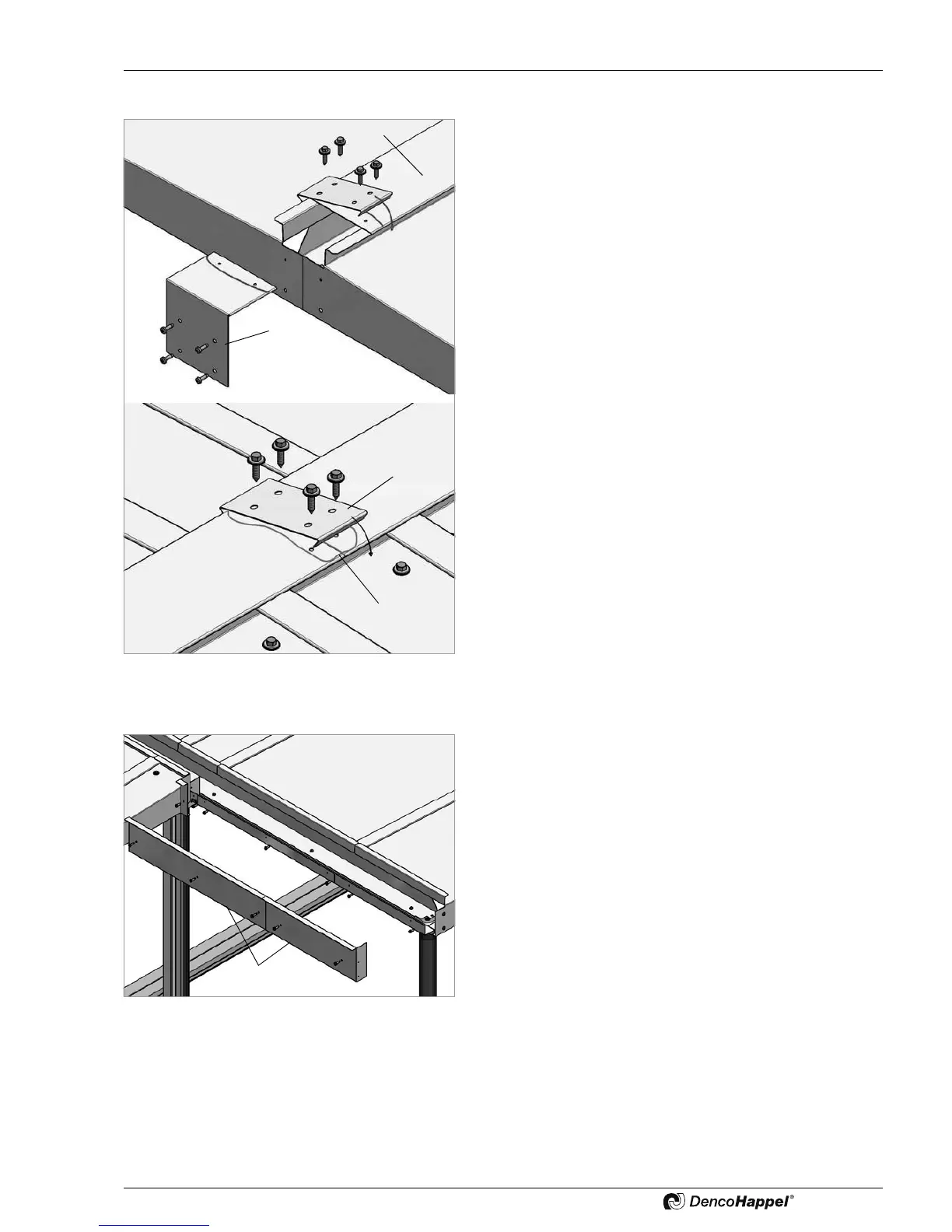

• With centrally-split roof panels slide the separately provided
roof joint strips (1) over the flanges.
• Secure in place a terminating angle plate (2) on each front
wall.
• Apply sealant (3) as presented in the figure.
• Attach the separately provided weatherproof covers (4) and
use supplied screws to secure them in place.
Fig. 5-30: Centrally-split roof panels
Consider the following for side-by-side units with misalignment, sizes 128.xxx and 160.xxx
• Depending on the unit shipping splits, install a separately en-
closed roof panel for „side-by-side casing“ (1), if necessary,
as presented in the drawing.
Fig. 5-31: Side-by-side units with offset,
sizes 128.xxx and 160.xxx
