6.3. Relay connection

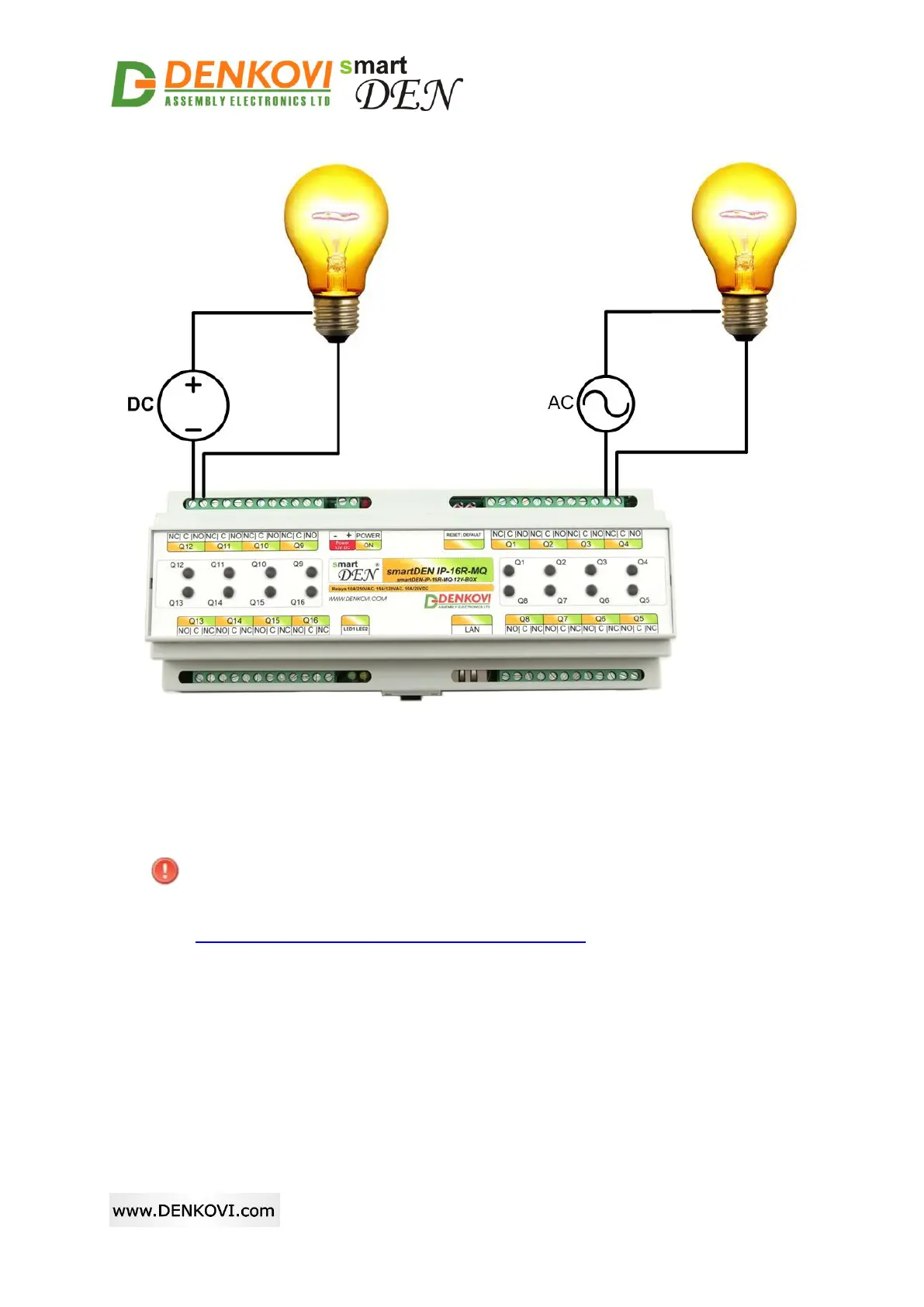

Figure 6.4. Connecting a lamp to relay
smartDEN IP-16R-XX has 16 SPDT relays with parameters specified in the
technical parameters section. Every relay channel has normally open (NO) and
normally closed (NC) contacts connected directly to the terminals.
If you are connecting inductive loads to the relays an extra measures must
be taken in order to ensure the proper work of the device. For more
information please refer to this link:
http://denkovi.com/controlling-inductive-devices
