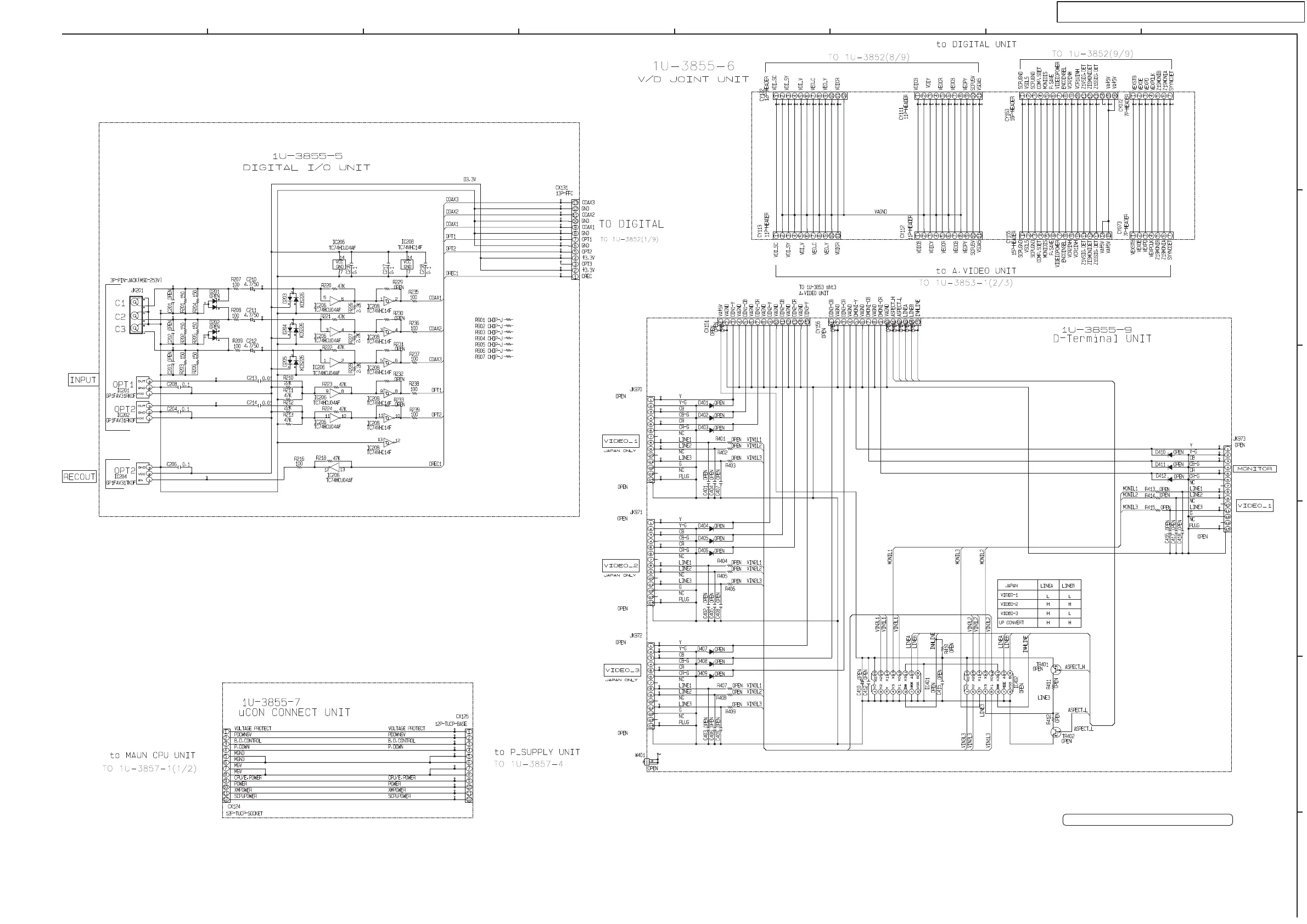

SCHEMATIC DIAGRAMS (17/29)
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (17/29)
1U-3855-5 DIGITAL I/O UNIT
1U-3855 FRONT UNIT(3/3)
1U-3855-6 V/D JOINT UNIT
1U-3855-7 uCON CONNECT UNIT
1U-3855-9 D-Terminal UNIT
AVR-2308CI/AVR-2308/AVC-2308 model
