SCHEMATIC DIAGRAMS (18/29)
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (18/29)

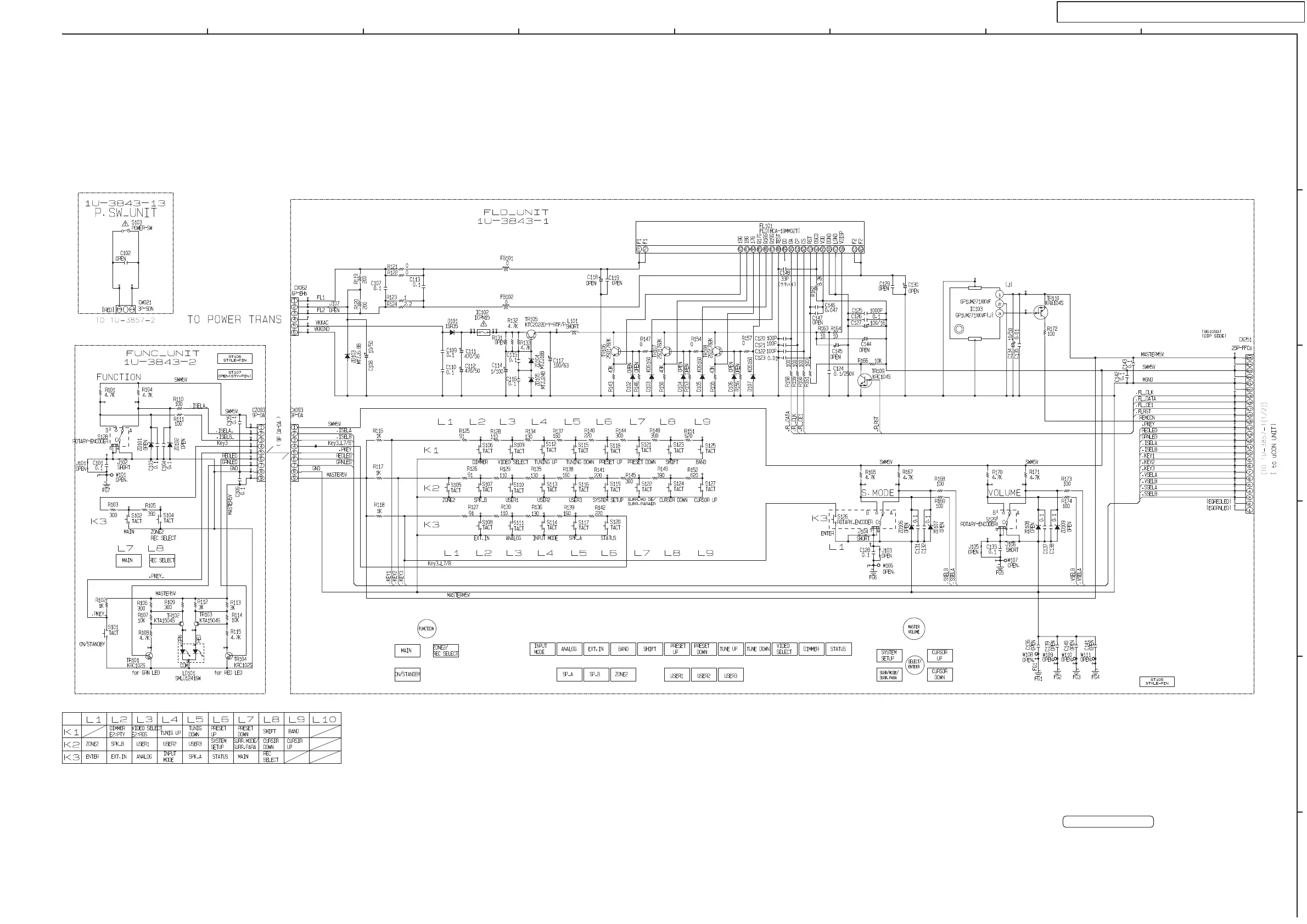

1U-3843-1 FLD UNIT
1U-3843 FRONT UNIT(1/3)
1U-3843-2 FUNCTION UNIT
1U-3843-13 P.SW UNIT
AVR-888 model
