Connecting 15.1-channel speakers
This system can connect with up to 15.1-channel speakers and simultaneously play up to 13.1-channels for Dolby Atmos and Auro-3D playback.
Use the Front Height, Top Middle or Rear Height speakers for Dolby Atmos playback.
Use the Front Height, Rear Height, Center Height or Top Surround speakers for Auro-3D playback.
o

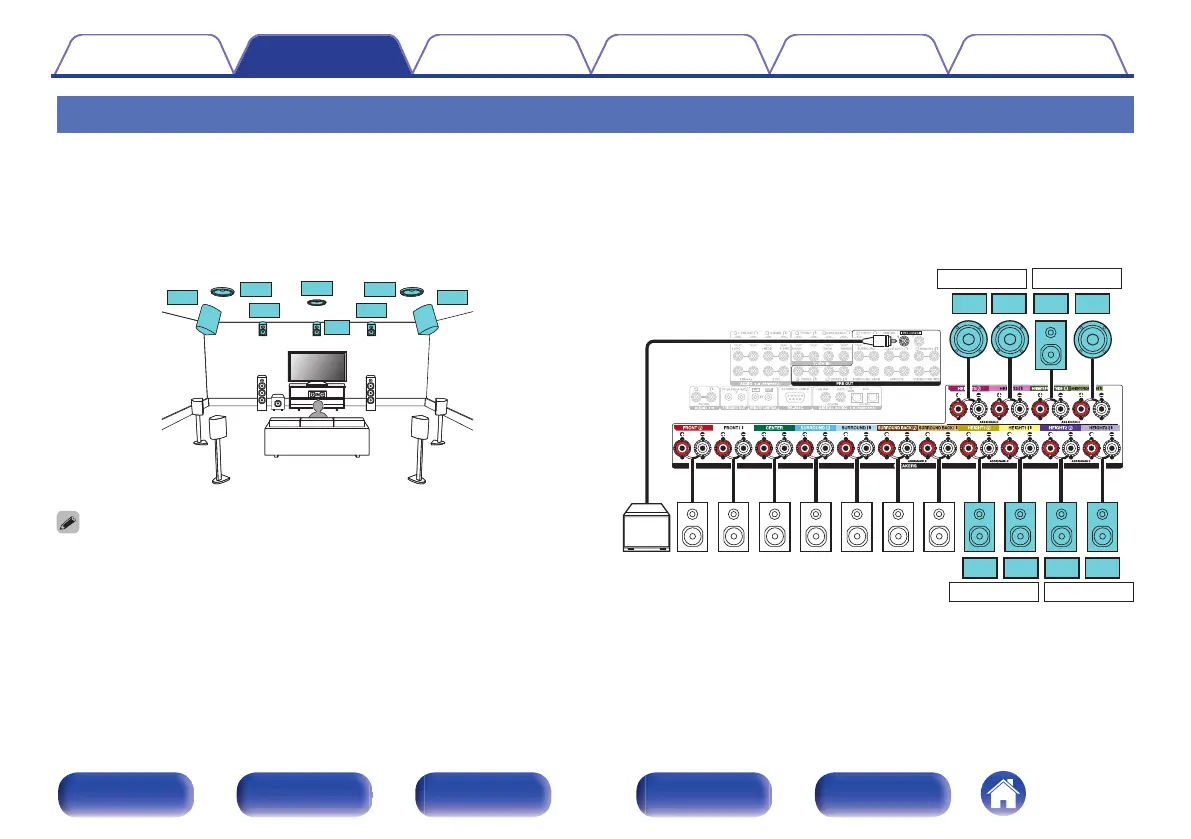

Example connection
.
TML TMR
C
SW
RSLS
RHL RHR
SBL
SBR
FHL FHR
FL FR
CH
TS
0
Set “Floor” - “Layout” to “5ch & SB” and “Height Sp” to “8ch” in the menu when
connecting in this configuration. (v p. 229)
.
HEIGHT 4
SW
FR FL C SR SL
SBR SBL
RHR RHLFHR FHL
HEIGHT 1 HEIGHT 2
z
TMR TML
HEIGHT 3
TSCH
z
Use Surround Height speakers for optimal Auro-3D playback. Install Rear Height
speakers instead of Surround Height speakers to enjoy both Auro-3D and Dolby
Atmos with 13.1-channel playback.
