Connecting multi-zone speakers
o

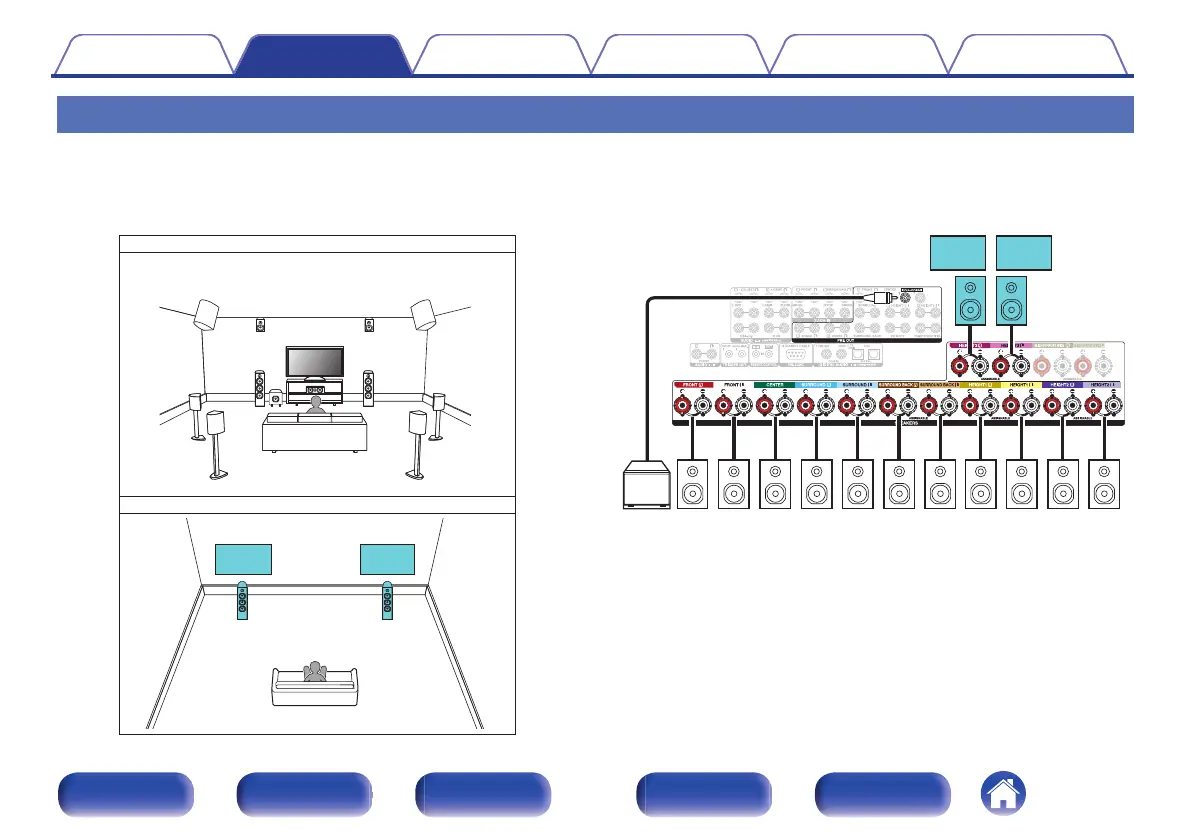

11.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2 or ZONE3)
This type of configuration plays back 11.1-channels in MAIN ZONE and 2-channels in ZONE2.
(Speakers can output audio from ZONE3 instead of ZONE2 (Assign Mode: 11.1ch + ZONE3)).
.
MAIN ZONE
ZONE2
ZONE2
L
ZONE2
R
C
SW
RSLS
FHL FHR
RHL RHR
SBL
SBR
FL FR
.
SW
CSRFR FL SL
SBR SBL
FHR FHL
zz
RHR RHL
zz
ZONE2
R
ZONE2
L
z
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can
be connected to the HEIGHT1 and HEIGHT2 speaker terminals. Set the speaker
to be connected from “Height” in the menu. (v p. 229)
