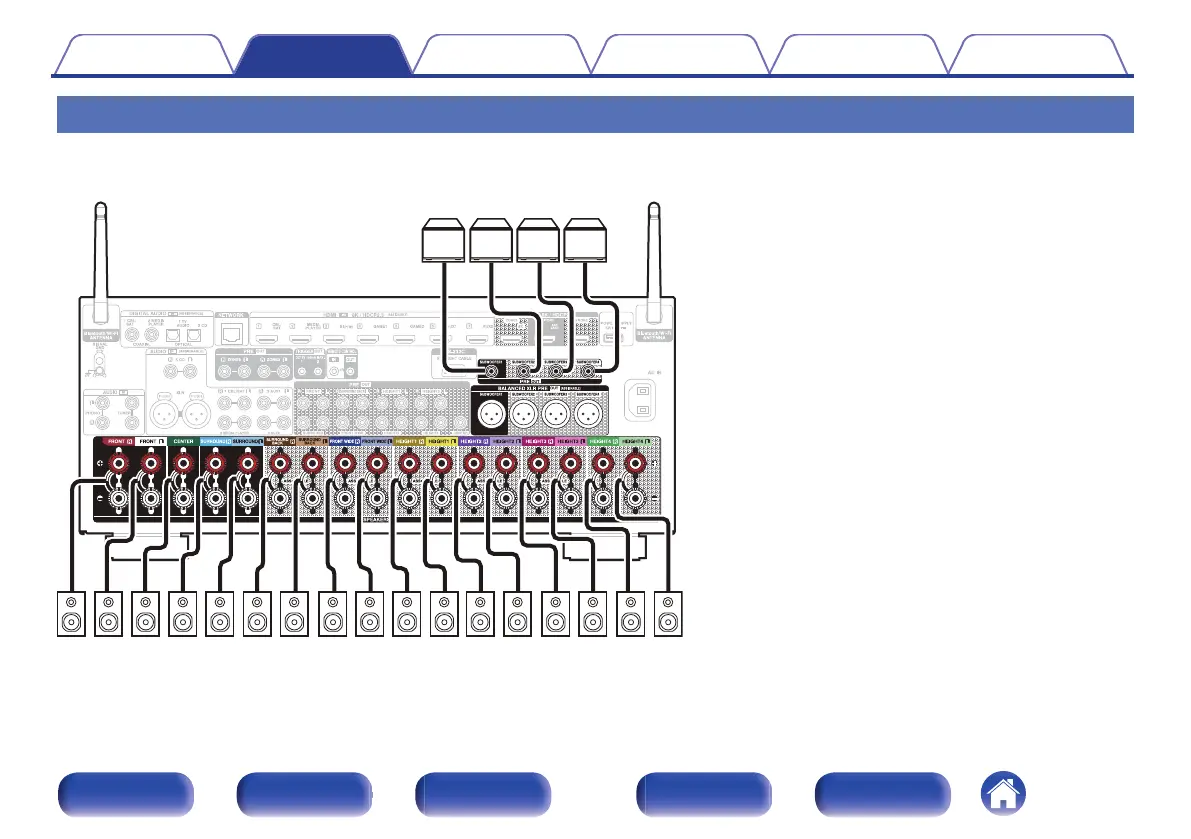

Connecting speakers to the speaker terminals
You can connect 17.4 channel speakers to this unit.
Connect each speaker according to the speakers you are using.
z1
When using a single surround back speaker, connect it to the
SURROUND BACK L terminal.
z2
The output terminals for Height/Ceiling/Dolby Atmos Enabled
speakers vary according to the speaker combination that you use.
For the speaker terminal that connects each Height/Ceiling/Dolby
Atmos Enabled speaker, refer to “Amp Assign” -
“Layout” (v p. 217).
SW1 SW2 SW3 SW4
SR SLFR FL C RHR RHL TMR TML CH TSFHR FHLFWR FWL
SBLSBR
z
1
z
2
z
2
z
2
z
2
z
2
z
2
z
2
z
2
