[!QJ

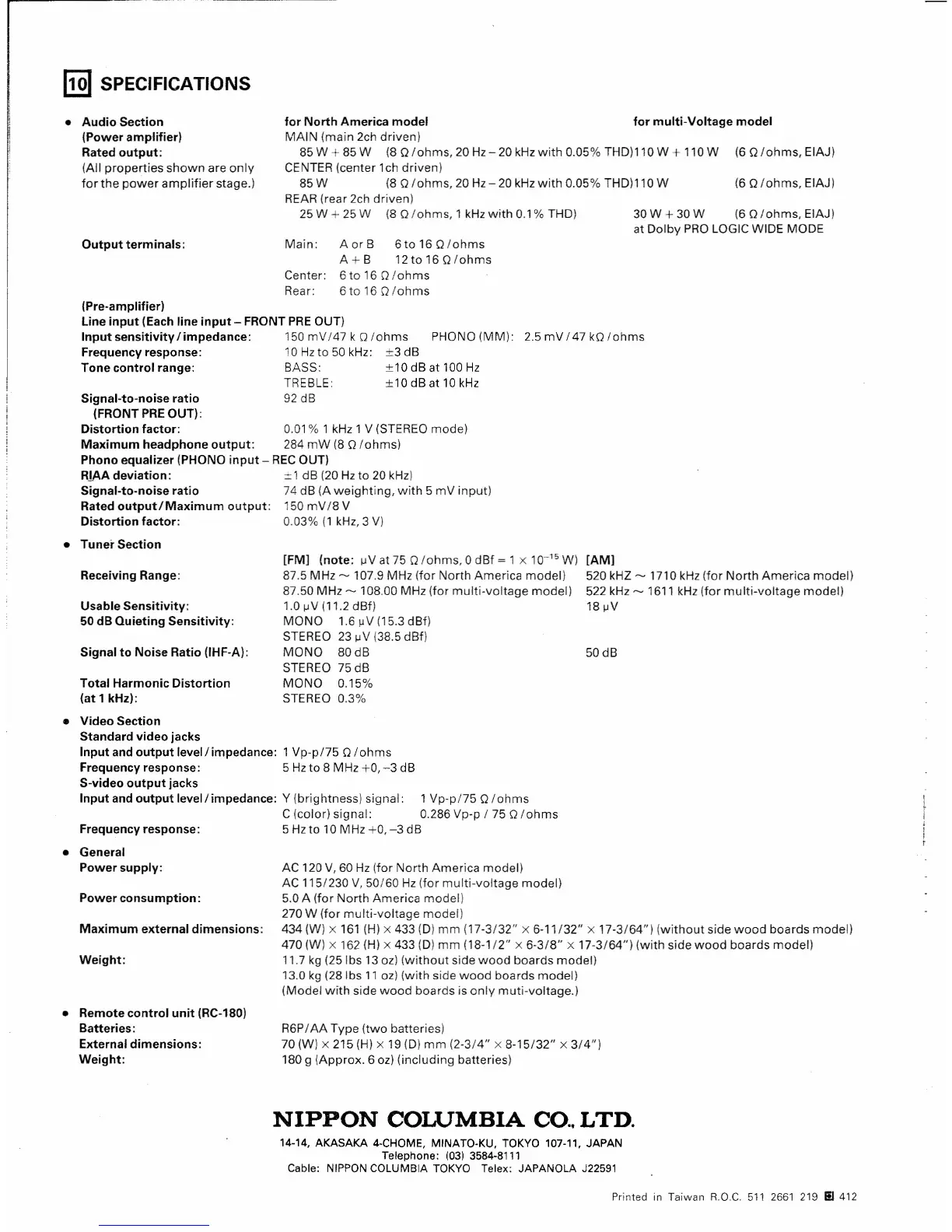

SPECIFICATIONS
• Audio Section
(Power amplifier)
Rated output:
(All properties shown are only
for the power amplifier stage.)
Output terminals:
for multi-Voltage modelfor North America model
MAIN (main 2ch driven)
85 W + 85 W (8 a/ohms, 20 Hz - 20 kHz with 0.05% THD)110 W + 110 W
CENTER (center lch driven)
85 W (8 a/ohms, 20 Hz - 20 kHz with 0.05% THD)ll 0 W
REAR (rear 2ch driven)
25 W + 25 W (8 a/ohms, 1 kHz with 0.1 % THD)
(6 a/ohms, EIAJ)
(6 a/ohms, EIAJ)
30 W + 30 W (6 a/ohms, EIAJ)
at Dolby PRO LOGIC WIDE MODE
Main:
AorB 6to16a/ohms
A+B 12to16a/ohms
6to 16 a/ohms
6to16a/ohms
Center:
Rear:
(Pre-amplifier)
Line input (Each line input - FRONT PRE OUT)
Input sensitivity /impedance: 150 mV /47 k a/ohms
Frequency response: 10Hz to 50 kHz: ±3 dB
Tone control range: BASS: ±10 dB at 100 Hz
TREBLE: ±10dBatl0kHz
92 dB
PHONO(MM): 2.5mV/47ka/ohms
Signal-to-noise ratio
(FRONT PRE OUT):
Distortion factor: 0.01 % 1 kHz 1 V (STEREO mode)
Maximum headphone output: 284 mW (8 a/ohms)
Phono equalizer (PHONO input - REC OUT)
RIAA deviation: ±1 dB (20 Hz to 20 kHz)
Signal-to-noise ratio 74 dB (A weighting, with 5 mV input)
Rated output/Maximum output: 150 mV/S V
Distortion factor: 0.03% (1 kHz, 3 V)
• Tuner Section
Receiving Range:
Usable Sensitivity:
50 dB Quieting Sensitivity:
Signal to Noise Ratio (lHF-A):
Total Harmonic Distortion
(at 1 kHz):
[FM] (note: ~V at 75 a/ohms, 0 dBf
=
1
X
10-
15
W)
87.5 MHz - 107.9 MHz (for North America model)
87.50 MHz - 108.00 MHz (for multi-voltage model)
1.0~V(11.2dBf)
MONO 1.6 ~V (15.3 dBf)
STEREO 23 ~V (3S.5 dBf)
MONO SOdB
STEREO 75 dB
MONO 0.15%
STEREO 0.3%
[AM]
520 kHZ - 1710 kHz (for North America model)
522 kHz - 1611 kHz (for multi-voltage model)
18 ~V
50dB
• Video Section
Standard video jacks
Input and output level/impedance: 1 Vp-pl75 a / ohms
Frequency response: 5 Hz to 8 MHz +0, -3 dB
S-video output jacks
Input and output level/impedance:
Y
(brightness) signal: 1 Vp-pl75 a/ohms
C (color) signal: 0.286 Vp-p / 75 a/ohms
Frequency response: 5 Hz to 10 MHz +0, -3 dB
• General
Power supply:
Power consumption:
Maximum external dimensions:
Weight:
• Remote control unit (RC-1BO)
Batteries:
External dimensions:
Weight:
AC 120 V, 60 Hz (for North America model)
AC 115/230 V, 50/60 Hz (for multi-voltage model)
5.0 A (for North America model)
270 W (for multi-voltage model)
434 (W)
x
161 (H)
x
433 (D) mm (17-3/32"
x
6-11/32"
x
17-3/64") (without side wood boards model)
470 (W)
x
162
(H)
x
433 (D) mm (18-1/2"
x
6-3/8"
x
17-3/64") (with side wood boards model)
11.7 kg (25 Ibs 13 oz) (without side wood boards model)
13.0 kg (28 Ibs 11 oz) (with side wood boards model)
(Model with side wood boards is only muti-voltage.)
R6P/AA Type (two batteries)
70 (W)
x
215
(H)
x
19 (D) mm (2-3/4"
x
8-15/32"
x
3/4")
180 g (Approx. 6
oz)
(including batteries)
NIPPON COLUMBIA CO..LTD.
14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-11, JAPAN
Telephone: (03) 3584-8111
Cable: NIPPONCOLUMBIA TOKYO Telex: JAPANOLA J22591
Printed
in Taiwan
R.O.C. 511 2661 219
iii
412
