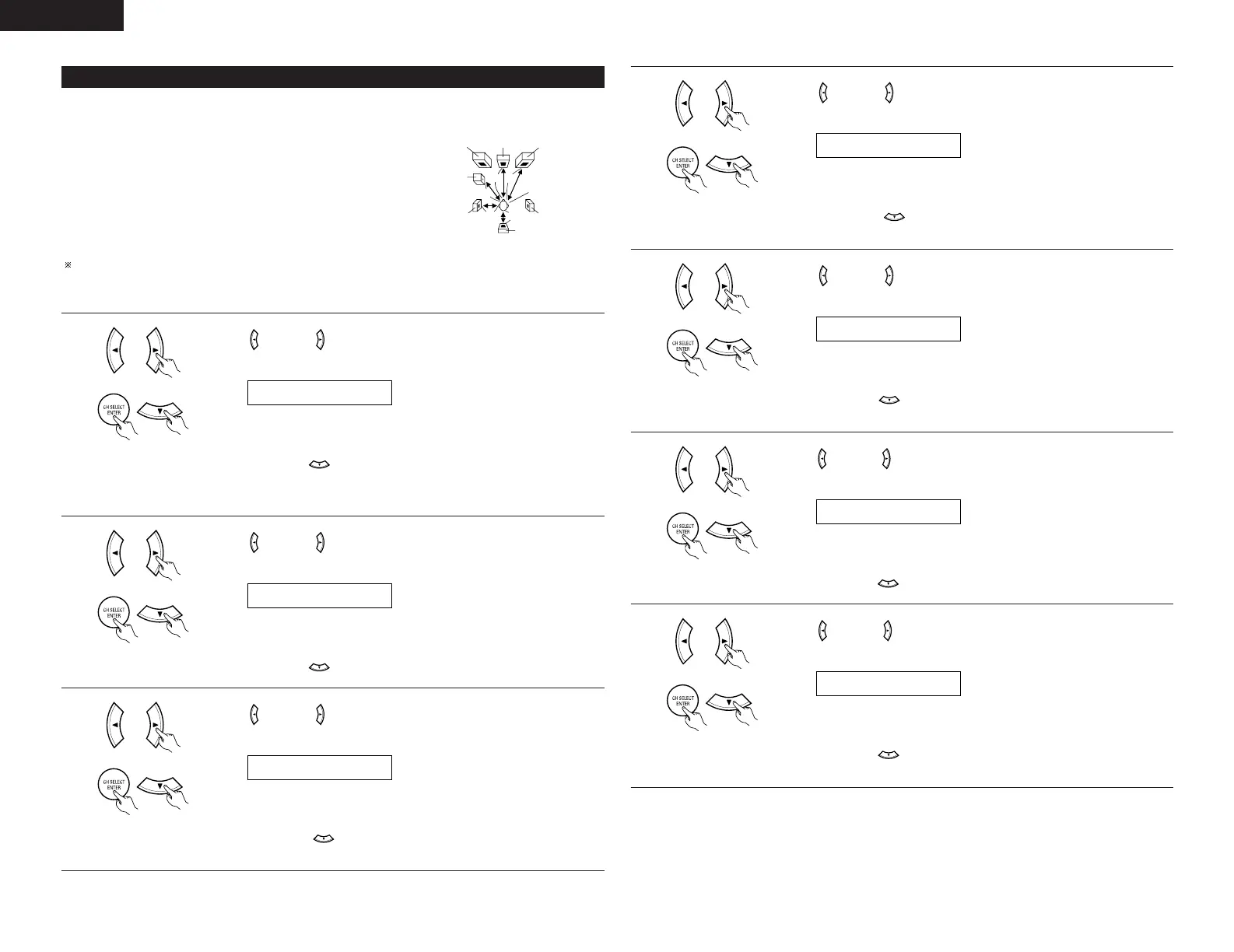

Denon AVR-684 User Manual

12
ENGLISH
• Input the distance between the listening position and the different speakers to set the delay time for the
surround mode.
Preparations:
Measure the distances between the listening position and the speakers
(L1 to L5) on the diagram at the right).
L1: Distance between center speaker and listening position
L2: Distance between front speakers and listening position
L3: Distance between surround speakers and listening position
L4: Distance between surround back speaker and listening position
L5: Distance between subwoofer and listening position
CAUTION:
Please note that the difference for every speaker should be 4.5 m or less.
NOTE:
• No setting when “None” has been selected for the Speaker Configuration setting.
Setting the delay time
L1
L2
L5
L3
L4
Center FRFL
Subwoofer
SL
Listening position
SR
SB
1
Use the (left) and (right) buttons to set the distance from the front L
speaker to the listening position.
8 FRONT L 3.6m
• The number changes in units of 0.1 meter each time one of the buttons is pressed.
Select the value closest to the measured distance.
Press the ENTER or (down) button to switch to the front R speaker setting.
2
Use the (left) and (right) buttons to set the distance from the front R
speaker to the listening position.
9 FRONT R 3.6m
• The number changes in units of 0.1 meter each time one of the buttons is pressed.
Select the value closest to the measured distance.
Press the ENTER or (down) button to switch to the center speaker setting.
3
Use the (left) and (right) buttons to set the distance from the center
speaker to the listening position.
10 CENTER 3.6m
• The number changes in units of 0.1 meter each time one of the buttons is pressed.
Select the value closest to the measured distance.
Press the ENTER or (down) button to switch to the surround L speakers
setting.
4
Use the (left) and (right) buttons to set the distance from the surround L
speakers to the listening position.
11 SURR.L 3.0m
• The number changes in units of 0.1 meter each time one of the buttons is pressed.
Select the value closest to the measured distance.
Press the ENTER or (down) button to switch to the surround R speaker
setting.
5
Use the (left) and (right) buttons to set the distance from the surround R
speakers to the listening position.
12 SURR.R 3.0m
• The number changes in units of 0.1 meter each time one of the buttons is pressed.
Select the value closest to the measured distance.
Press the ENTER or (down) button to switch to the surround back speaker
setting.
6
Use the (left) and (right) buttons to set the distance from the surround back
speakers to the listening position.
13 S.BACK 3.0m
• The number changes in units of 0.1 meter each time one of the buttons is pressed.
Select the value closest to the measured distance.
Press the ENTER or (down) button to switch to the subwoofer setting.
7
Use the (left) and (right) buttons to set the distance from the subwoofer to
the listening position.
14 SW 3.6m
• The number changes in units of 0.1 meter each time one of the buttons is pressed.
Select the value closest to the measured distance.
Press the ENTER or (down) button to enter the setting and switch the Test
Tone setting.
NOTE:
• The speaker distance can be adjusted between 0 and 18 meters in steps of 0.1 meter.
