Denon AVR-684 User Manual

24
ENGLISH

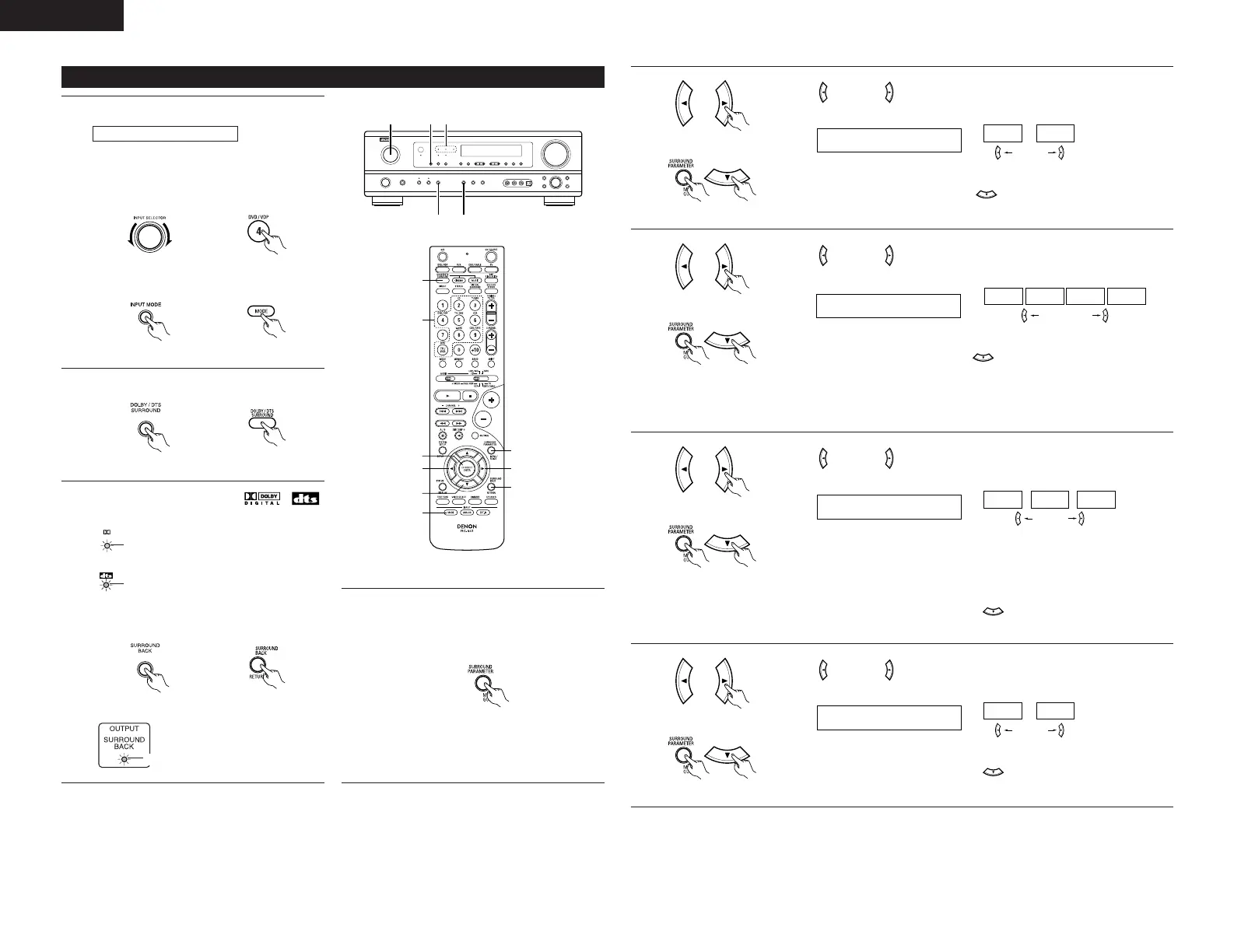

Dolby Digital mode (only with digital input) and DTS Surround (only with digital input)
23
1 1 3
4, 5, 6, 7, 8, 9, 10
3
5, 6, 7, 8, 9, 10
5, 6, 7, 8, 9, 10
5, 6, 7, 8, 9, 10
1
1
11
2
Playback with a digital input
1
Select the input source.
q Select an input source set to digital
(COAXIAL/OPTICAL) (see page 14).
Example: DVD
w Set the input mode to “AUTO” or DTS.
(Main unit) (Remote control unit)
(Main unit) (Remote control unit)
2
Select the Dolby/DTS Surround mode.
(Main unit) (Remote control unit)
3
Play a program source with the ,
mark.
DIGITAL
• The DTS indicator lights when
playing DTS sources.
Light
• The Dolby Digital indicator lights
when playing Dolby Digital
sources.
Light
Operate the SURROUND BACK button to
switch Surround Back CH ON/OFF.
(Main unit) (Remote control unit)
• Lights when the Surround
Back CH is on.
Light
4
Set the surround parameter according to the
source.
First, press the SURROUND PARAMETER
button.
(Main unit)
NOTE:
•Please make sure the “AUDIO” position of
the slide switch on the remote control unit.
5
Use the (left) and (right) buttons to set the CINEMA EQ.
CINEMA EQ OFF
ON
OFF
(Initial)
(left) button (right) button
Press the SURROUND PARAMETER or (down) button to switch to the D.
COMP. setting.
(Remote control unit)
(Remote control unit)
6
Use the (left) and (right) buttons to set the D. COMP.
D.COMP. OFF
OFF LOW MID HIGH
(Initial)
(left) button (right) button
Press the SURROUND PARAMETER or (down) button to switch to the LFE
setting.
NOTE:
• This parameter is not displayed during DTS playback.
(Remote control unit)
(Remote control unit)
7
Use the (left) and (right) buttons to set the LFE level.
LFE 0dB
-10dB
-5dB 0dB
(Initial)
(left) button (right) button
• The level can be adjusted in units of 1 dB from –10 to 0 dB.
Set to the desired level according to the speaker systems being used and the
source to be played.
Press the SURROUND PARAMETER or (down) button to switch to the
TONE DEFEAT setting.
(Remote control unit)
(Remote control unit)
8
Use the (left) and (right) buttons to set the TONE DEFEAT.
TONE DEF. ON
ON
OFF
(Initial)
(left) button (right) button
Press the SURROUND PARAMETER or (down) button to switch to the
SURROUND BACK SPEAKER setting.
(Remote control unit)
(Remote control unit)
