27
ENGLISH
1

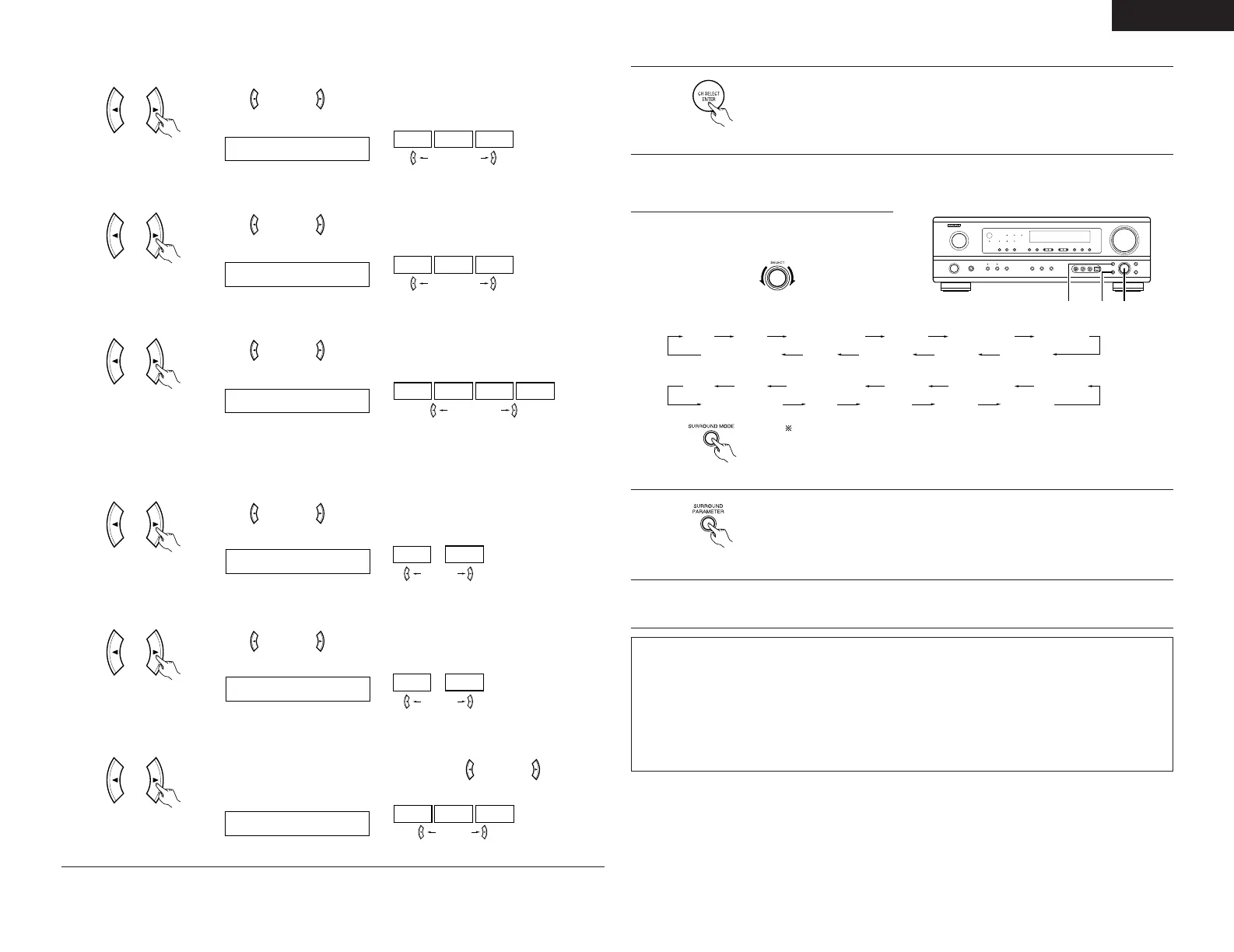

Turn the SELECT knob to select the surround
mode.
1, 321
2
Press the SURROUND PARAMETER button.
Press and hold in the surround parameter button to select the parameter you
want to set.
• The parameters which can be set differ for the different surround modes.
(Refer to “Surround Modes and Parameters” on page 28.
3
Display the parameter you want to adjust, then turn the SELECT knob to set it.
NOTES:
• When playing PCM digital signals or analog signals in the 5CH/6CH STEREO, ROCK ARENA, JAZZ CLUB,
VIDEO GAME, MONO MOVIE or MATRIX surround modes and the input signal switches to a digital signal
encoded in Dolby Digital, the Dolby surround mode switches automatically. When the input signal switches
to a DTS signal, the mode automatically switches to DTS surround.
• When the “5CH/6CH STEREO” mode is selected, the display differs according to the Surround Back CH
ON/OFF.
Surround Back CH ON: 6CH STEREO
Surround Back CH OFF: 5CH STEREO
• Operating the surround mode and surround parameters from the main unit‘s panel.
• When turned clockwise
• When turned counterclockwise
DIRECT STEREO DOLBY PRO LOGIC II
5CH/6CH STEREO
MONO MOVIE
JAZZ CLUB ROCK ARENAVIDEO GAMEMATRIXVIRTUAL SURROUND
DIRECT STEREO DOLBY PRO LOGIC II
5CH/6CH STEREO
MONO MOVIE
JAZZ CLUB ROCK ARENAVIDEO GAMEMATRIXVIRTUAL SURROUND
DTS NEO:6
DTS NEO:6
To select the surround mode while adjusting the surround parameters, tone
defeat or tone control, press the SURROUND MODE button then operate the
selector.
(Main unit)
(Main unit)
(Main unit)
(2) EFFECT LEVEL
Use the (left) and (right) buttons to set the effect level.
EFFECT LEVEL 10
15101
(Initial)
(left) button (right) button
(Remote control unit)
(3) DELAY TIME
Use the (left) and (right) buttons to set the delay time.
DELAY 30ms
110ms30ms0ms
(Initial)
(left) button (right) button
(Remote control unit)
(4) D. COMP.
Use the (left) and (right) buttons to set the D. COMP.
D.COMP. OFF
OFF LOW MID HIGH
(Initial)
(left) button (right) button
(Remote control unit)
(5) TONE DEFEAT
Use the (left) and (right) buttons to set the TONE DEFEAT.
TONE DEF. ON
ON
OFF
(left) button (right) button
(Remote control unit)
NOTE:
• This parameter is displayed during DOLBY DIGITAL playback.
(6) SURROUND BACK SPEAKER
Use the (left) and (right) buttons to set the SURROUND BACK SPEAKER.
SB:ON
ON
OFF
(left) button (right) button
(Remote control unit)
(7) DEFAULT
To reset the settings to the factory defaults, use the (left) and (right)
buttons to display “Yes”.
DEFAULT Y/N
NOY/NYES
(left) button (right) button
(Remote control unit)
Press the ENTER button to finish surround parameter mode.
4
(Remote control unit)
(Initial)
(Initial)
