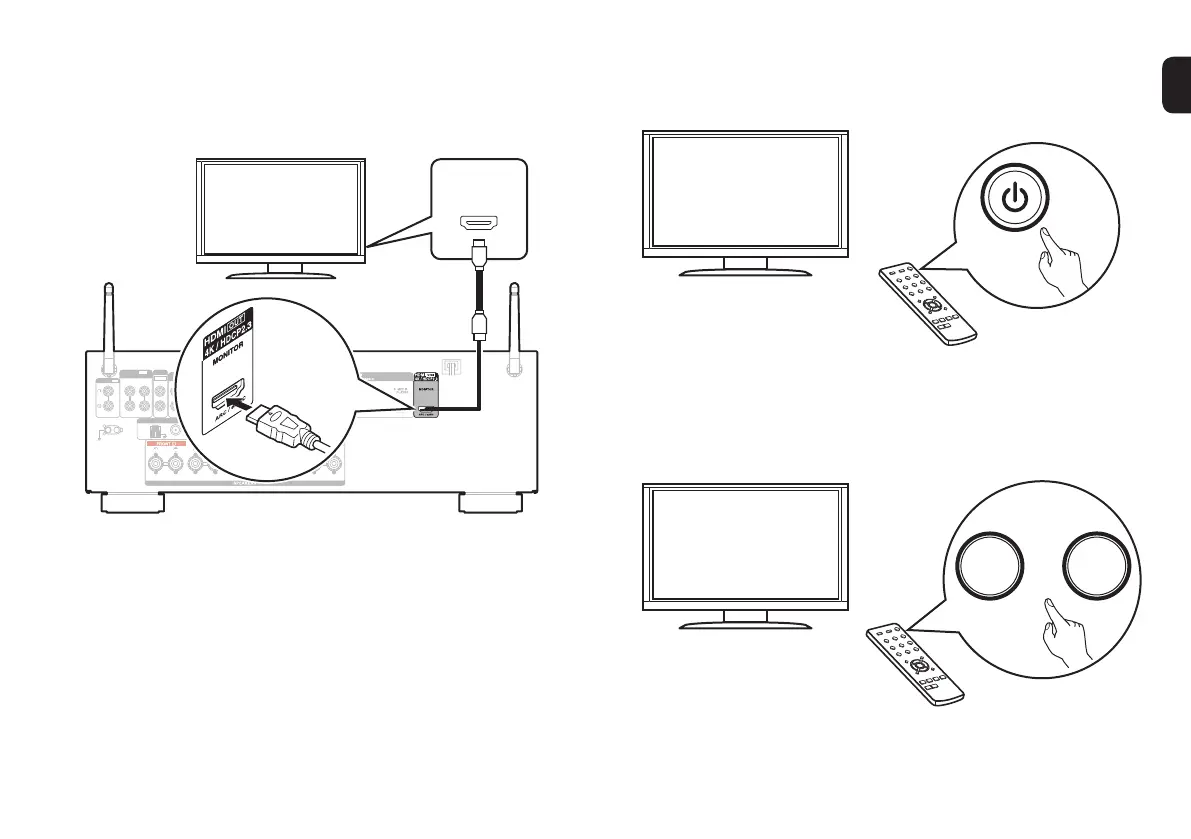

3) Connect the receiver to your TV with
an HDMI cable
PRE OUT
2
SUBWOOFER
AUDIO
(
ASSIGNABLE
)
IN
AUDIO
IN
CBL/SAT 2 MEDIA
PLAYER
1 TV
AUDIO
OPTICAL
IN
DIGITAL AUDIO
(
ASSIGNABLE
)
COAXIAL
MONITOR
VIDEO
OUT
1 CBL/SAT 2 AUX
1 CBL/SAT
2 AUX
(
ASSIGNABLE
)
SIGNAL GND
PHONO
ANTENNA
FMAM
VIDEO
IN
1
(ARC/eARC)
HDMI IN
HDMI OUT
MONITOR
(
ARC/eARC)
HDMI cable
Receiver (Rear panel)
ARC (Audio Return Channel) and eARC (Enhanced Audio
Return Channel) support:
If your TV supports ARC, your TV can send audio back to the AV receiver
when you are using your TV’s built-in video sources (TV tuner, Smart TV
streaming services, etc.) ARC requires that you enable HDMI CEC on your
TV. Please refer to your TV’s Owner’s Manual for instructions on how to
setup HDMI CEC. In addition, if your TV supports eARC, it can also send
back high bitrate audio formats such as Dolby TrueHD and DTS-HD Master
Audio. Please refer to your TV’s Owner’s Manual for additional information
about enabling the eARC function.
4) Turn on the TV
TV remote control unit
5) Select the appropriate HDMI input on
your TV
HDMI
TV/
VIDEO
INPUT
or
TV remote control unit
1. AVR-S650HE3_QSG_ENG_10A_190130.indd 6 2019/01/30 14:56:02
PrintingColor:Black

Denon AVR-S650H Specifications

General

Receiver type	stereo
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	5.2 channels
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	10 %
Power output per channel (1KHz@6 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	5
Composite video in	2
USB ports quantity	1
Speakers connectivity type	RCA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
Image formats supported	JPEG
HDCP	Yes
Display	VFL
HDCP version	2.3
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby TrueHD
Volume control	Rotary
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	340 W
Package weight	9525 g
Package width	523 mm
Package height	229 mm

Weight and Dimensions

Depth	330 mm
Width	432 mm
Height	152 mm
Weight	7800 g
