MASTER VOLUME knob
This adjusts the volume level.
ZONE2 ON/OFF button
This turns the power of ZONE2 (separate room) on/off.
ZONE2 SOURCE button
This selects the input source for ZONE2.
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations.
Tuning up / Tuning down buttons (TUNE +, –)
Select either FM broadcast or AM broadcast.

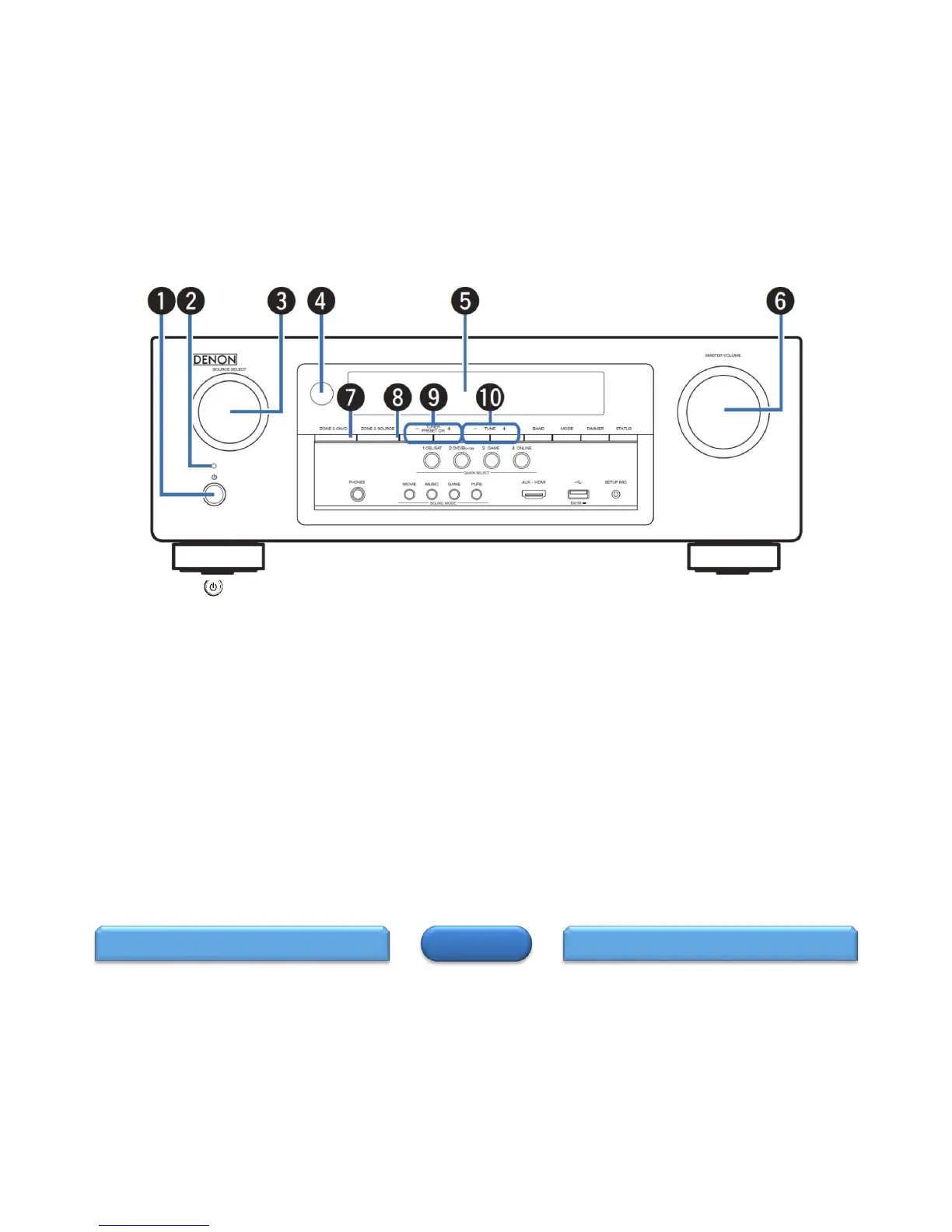

Front Panel (1 of 2)
HOME
FRONT PANEL 2DISPLAY 1
Power operation button ( )
Used to turn the power of the MAIN ZONE (room where this unit
is located)
on/off (standby).
Power indicator
This is lit as follows according to the power status:
Green: Power on
Off: Normal standby
Red:
oWhen “HDMI Control” is set to “On”
oWhen “HDMI Pass Through” is set to “On”
oWhen “Network Control” is set to “Always On”
SOURCE SELECT knob
This selects the input source.
Remote control sensor
This receives signals from the remote control unit.
Display
This displays various pieces of information.
