Denon AVR-S900W Quick Start Guide

5

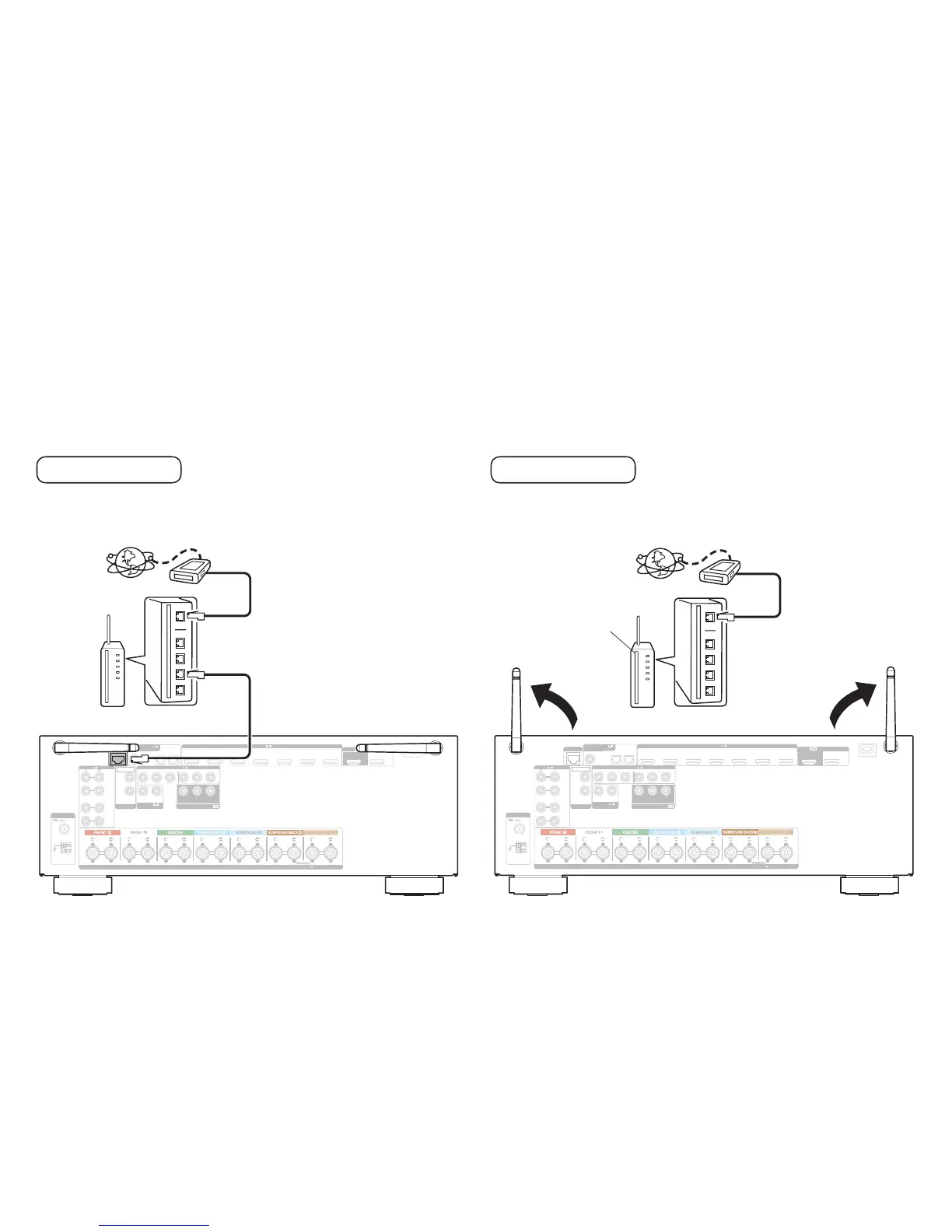

n Connect to the network.
Wired LAN
When connecting cables (wired connection), connect a LAN
cable between your receiver and your network router.
SPEAKERS
IMPEDANCE : 4㹼16 Ȑ CLASS 2 WIRING
AM
(ASSIGNABLE)
HDMI
PRE OUT
ANTENNA
2
1
1
CBL/
SAT
2
DVD
3
Blu-ray
6
AUX2
7
CD
4
GAME
5
MEDIA
PLAYER
ARC
MONITOR1
MONITOR2
3
Blu-ray
4
CD
2
DVD
1
CBL/
SAT
1 CBL/SAT
CBL/SAT
COAXIAL
OPTICAL
1
CBL/SAT
2
DVD
(ASSIGNABLE)
VIDEO
2 DVD
COMPONENT VIDEO
1
TV
AUDIO
2
CD
(ASSIGNABLE)
COMPONENT VIDEO
SUBWOOFER
PR
/
CR
PB
/
CB
Y
MONITOR
PR
/
CR
PB
/
CB
Y
PR
/
CR
PB
/
CB
Y
(ASSIGNABLE)
AUDIO
HDMI
(ASSIGNABLE)
DIGITAL AUDIO
NETWORK
Internet
Modem
Router
To WAN side
To LAN port
Wireless LAN
When using a wireless connection (Wi-Fi), rotate the
antennas upword.
SPEAKERS
IMPEDANCE : 4㹼16 Ȑ CLASS 2 WIRING
AM
(ASSIGNABLE)
HDMI
PRE OUT
ANTENNA
2
1
1
CBL/
SAT
2
DVD
3
Blu-ray
6
AUX2
7
CD
4
GAME
5
MEDIA
PLAYER
ARC
MONITOR1
MONITOR2
3
Blu-ray
4
CD
2
DVD
1
CBL/
SAT
1 CBL/SAT
CBL/SAT
COAXIAL
OPTICAL
1
CBL/SAT
2
DVD
(ASSIGNABLE)
VIDEO
2 DVD
COMPONENT VIDEO
1
TV
AUDIO
2
CD
(ASSIGNABLE)
COMPONENT VIDEO
SUBWOOFER
PR
/
CR
PB
/
CB
Y
MONITOR
PR
/
CR
PB
/
CB
Y
PR
/
CR
PB
/
CB
Y
(ASSIGNABLE)
AUDIO
HDMI
(ASSIGNABLE)
DIGITAL AUDIO
NETWORK
Router with
access point
To WAN side
Internet
Modem

Denon AVR-S900W Specifications

General

Channels	7.2
HDMI Inputs	8
HDMI Outputs	2
Wi-Fi	Yes
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Dolby Atmos	Yes
DTS:X	No
HDMI Pass-Through	Yes
Input Impedance	47 kOhm
Input Sensitivity	200 mV
THD at rated output	0.08%
Signal-To-Noise Ratio	98 dB
DAC Resolution	24-bit / 192kHz
HDMI Switching	Yes
AirPlay	Yes
DLNA	Yes
Dimensions	17.1 x 6.6 x 13.3 inches
Power Output	90 W
Response Bandwidth	10Hz-100kHz
Output Impedance / Channel	6 Ohm
Inputs	HDMI
Outputs	HDMI
Supported Audio Formats	MP3, WMA, AAC, FLAC, WAV
Supported Video Formats	4K
Output Power / Channel	90W (8 ohms, 20Hz-20kHz, 0.08% THD)
