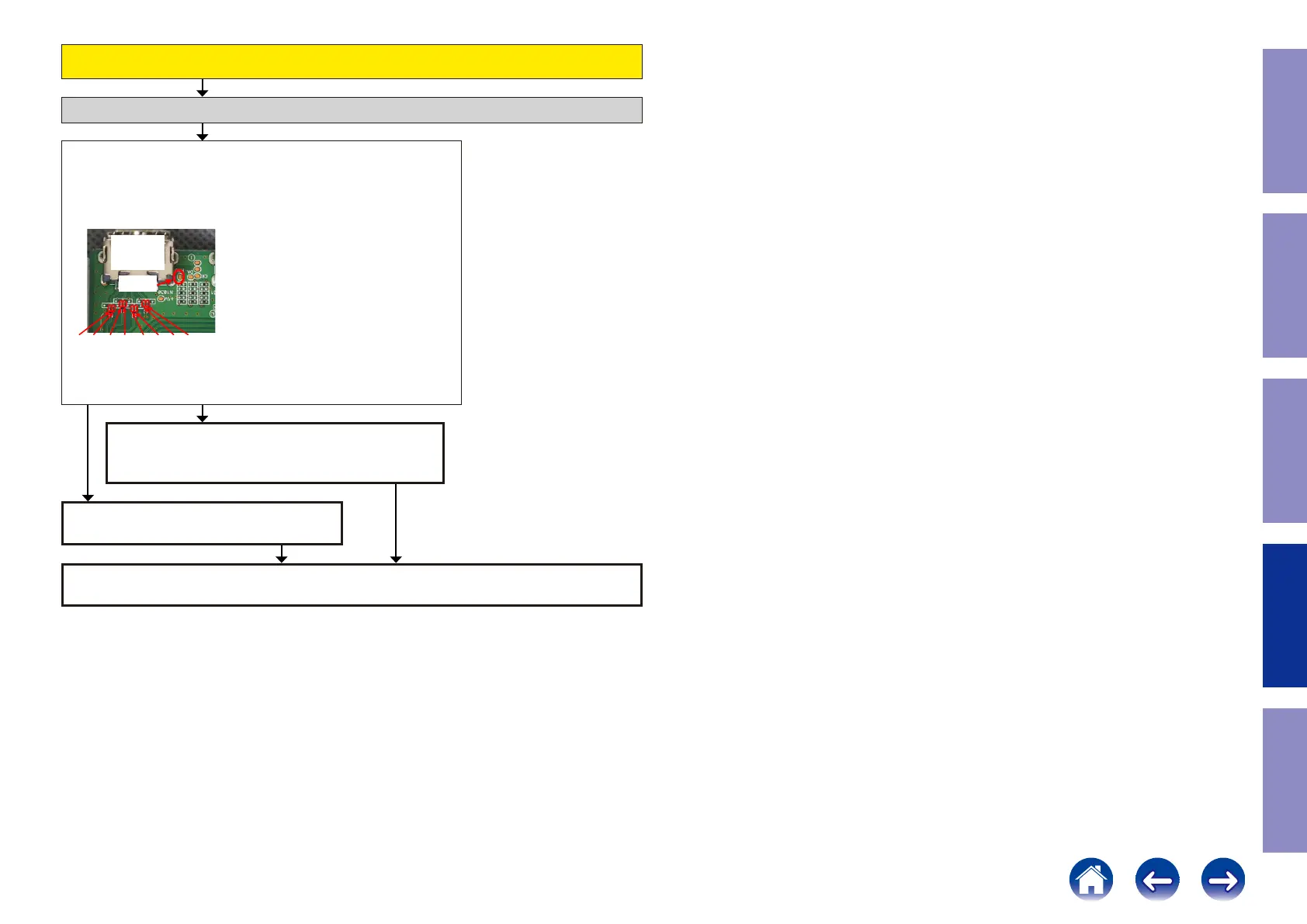

When the results of check item (65) are "00"
(Detection of HPD is not OK / Detection of RXSENSE is not OK )
Check item(71). Checking the HPD and RXSENSE. :
Does the test point of RXSENSE close to the HDMI output terminal
[N1030] indicate the (3.3V)?
Does the voltage of HPD test point close to the HDMI output terminal
[N1030] indicate "Hi" (3-5 V)?
N1030
D2+
D2-
D1+
D1-
D0+
D0-
CK+
CK-
HPD
HDMI
OUT 2
HDMI
OUT 2
Checking the HPD/RXSENSE status register. (Monitor2)
HDMI Tx [U1039] is faulty.
Replace with a new device.
Recheck from check item (3).
If it does not work, replace the PCB.
Check for a short circuit in the TMDS/ HPD line.
If there is no problem, the HDMI Tx [U1039] is faulty.
Replace with a new device.
NOYES
117
Caution in
servicing
Electrical Mechanical Repair Information Updating
To Next Page
