(4)

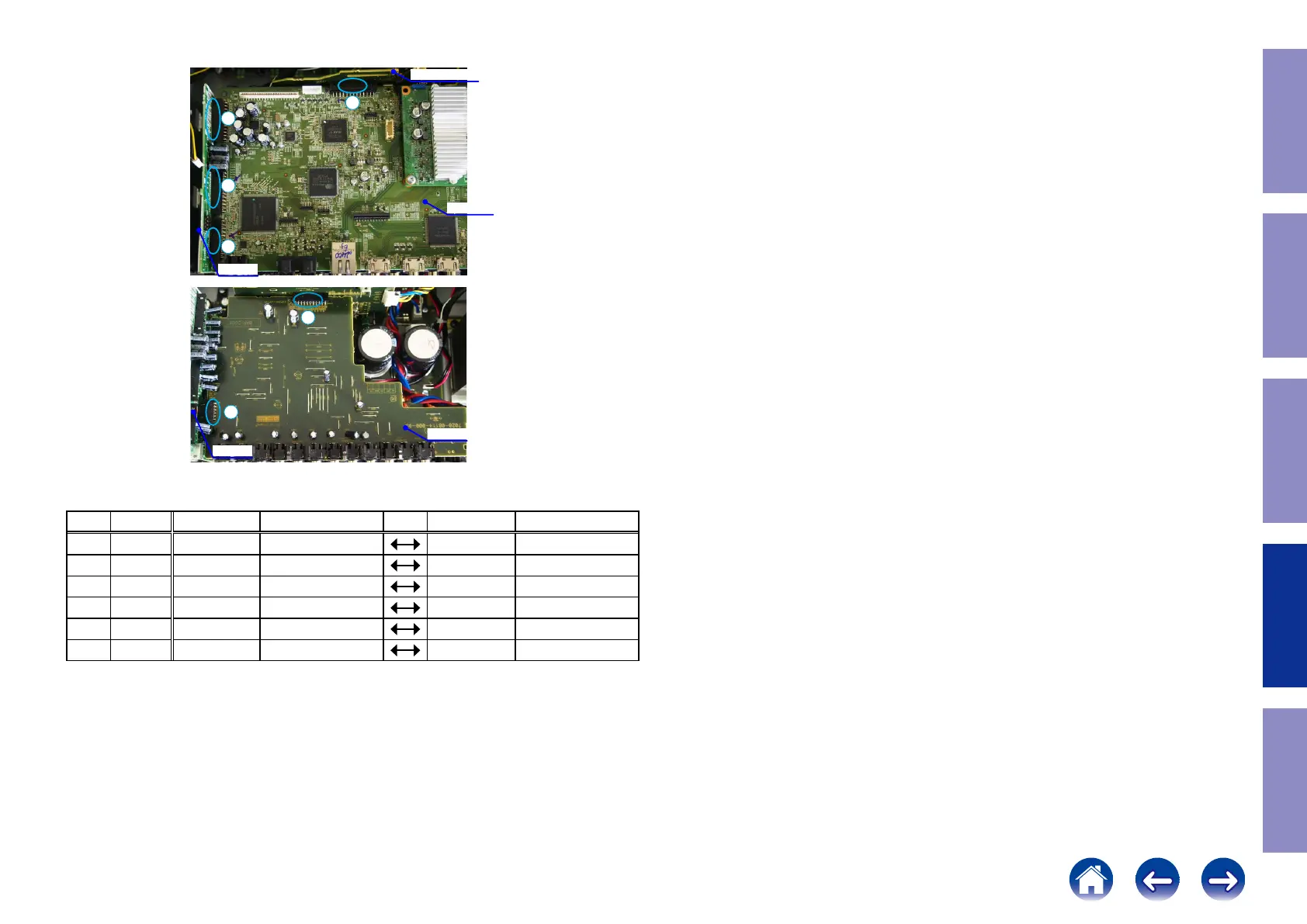

Connect the expansion cables.
Board-to-Board Connections
No.
Pin
Ref. No.
PCB
Ref. No.
PCB
q
15pin
CP4200
INPUT
N1020
DIGITAL
w
27pin
CP4205
INPUT
N1016
DIGITAL
e
23pin
CP4201
INPUT
N1014
DIGITAL
r
25pin
CP3401
FRONT CNT
N1039
DIGITAL
t
11pin
CP4204
INPUT
CN5003
VIDEO
y
21pin
CP5000
FRONT CNT
CN5000
VIDEO
FRONT CNT
DIGIT
AL
VIDEO
INPUT
INPUT
1
2
3
4
6
5
157
Caution in
servicing
Electrical
Mechanical
Repair Information
Updating
156
