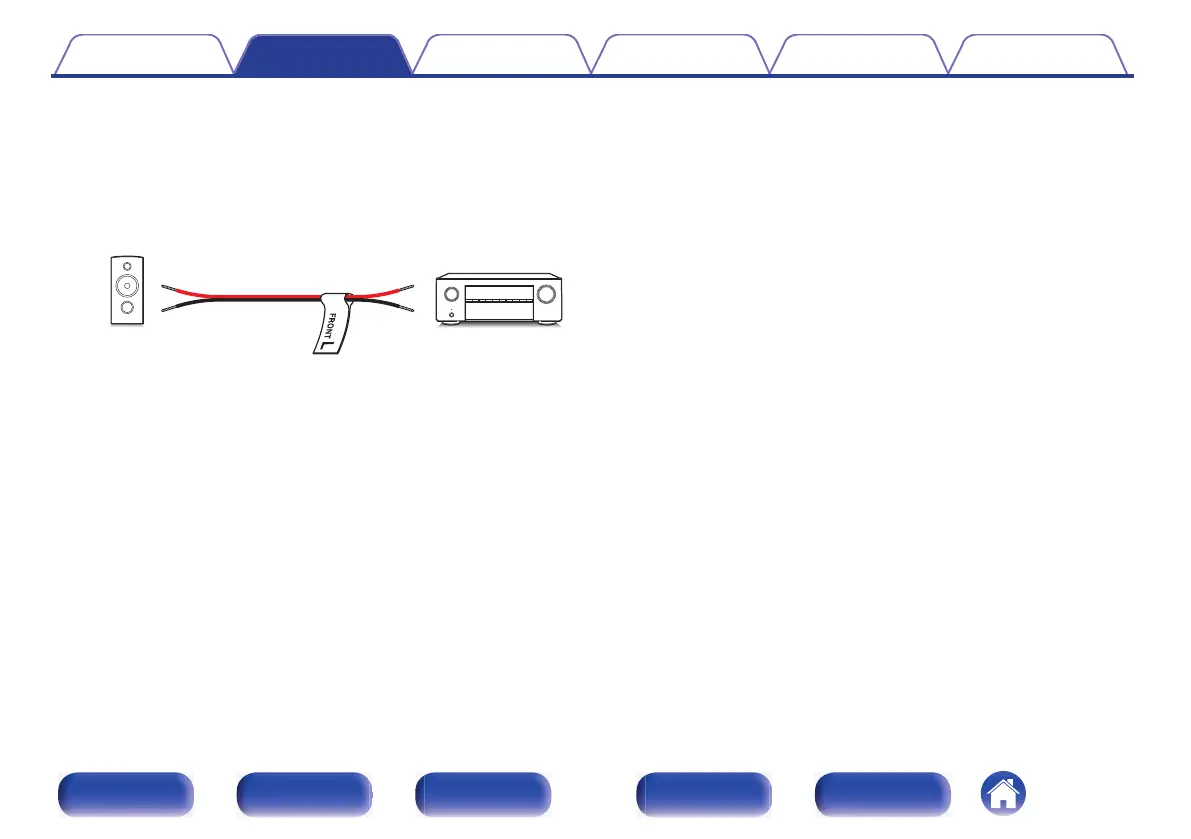

Attach the cable label for each channel to its speaker cable as shown
in the diagram.
Refer to the table and attach the label to each speaker cable.
Then, make connection so that the color of the speaker terminal
matches that of the cable label.
G
How to attach the cable labels
H
.
Speaker
This unit
Contents
Connections
Playback
Settings
Tips
Appendix
40
Front panel
Display
Rear panel
Remote
Index
39
41
Table of Contents
Owner’s Manual
1
Reset
215
Contents
2
Accessories
8
Inserting the batteries
9
Operating range of the remote control unit
9
Features
10
High quality sound
10
High performance
11
Easy operation
15
Part Names and Functions
16
Front panel
16
Display
20
Rear panel
22
Remote control unit
26
Connections
29
Cables used for connections
29
Speaker installation
30
When 7.1-channel speakers are installed using surround back speakers
34
When 5.1-channel speakers are installed
34
Layout including height speakers and ceiling speakers
35
Connecting speakers
37
Before connecting speakers
37
Connecting the speaker cables
38
Connecting the subwoofer
38
About the cable labels (supplied) for channel identification
39
Speaker configuration and “Amp Assign” settings
41
Connecting 5.1-channel speakers
42
Connecting 7.1-channel speakers
43
Example connections when using surround back speakers
43
Example connections when using front height speakers
44
Example connections when using top front speakers
45
Example connections when using top middle speakers
46
Example connections when using front Dolby Atmos Enabled speakers
47
Example connections when using surround Dolby Atmos Enabled speakers
48
Connecting multi-zone speakers
49
5.1-channel (MAIN ZONE) + 2-channel (ZONE2) speaker connection
49
Connecting a TV
50
Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)
51
Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)
53
Connection 3 : TV equipped without an HDMI connector
54
Connecting a playback device
55
Connecting a set-top box (Satellite tuner/cable TV)
56
Connecting a DVD player or Blu-ray Disc player
57
Connecting a video camcorder or game console
58
Connecting a turntable
59
Connecting a USB memory device to the USB port
60
Connecting FM/AM antennas
61
Using the AM loop antenna
62
AM loop antenna assembly
62
Connecting to a home network (LAN)
63
Wired LAN
63
Wireless LAN
64
Connecting the power cord
65
Playback
66
Basic operation
67
Turning the power on
67
Selecting the input source
67
Adjusting the volume
68
Turning off the sound temporarily (Muting)
68
Playback a DVD player/Blu-ray Disc player
68
Playing a USB memory device
69
Playing files stored on USB memory devices
70
Operations accessible through the option menu
72
Listening to music on a Bluetooth device
73
Playing music from Bluetooth device
74
Pairing with other Bluetooth devices
75
Reconnecting to this unit from a Bluetooth device
76
Listening to FM/AM broadcasts
77
Listening to FM/AM broadcasts
78
Tuning in by entering the frequency (Direct Tune)
79
Changing the tune mode (Tune Mode)
80
Tuning in to stations and presetting them automatically (Auto Preset Memory)
80
Presetting the current broadcast station (Preset Memory)
81
Listening to preset stations
81
Specify a name for the preset broadcast station (Preset Name)
82
Skipping preset broadcast stations (Preset Skip)
83
Cancelling Preset Skip
84
Listening to Internet Radio
85
Playing back files stored on a PC or NAS
87
Playing back files stored on a PC or NAS
88
Operations accessible through the option menu
90
Getting the HEOS App
91
HEOS Account
92
Playing from streaming music services
93
Selecting the music track or station from music sources
94
Listening to the same music in multiple rooms
96
Grouping rooms
96
Ungrouping rooms
97
Grouping all rooms (party mode)
98
Ungrouping all rooms
99
AirPlay function
100
Playing songs from your iPhone, iPod touch or iPad
101
Playing iTunes music with this unit
101
Play a song from your iPhone, iPod touch or iPad on multiple synced devices (AirPlay 2)
102
Spotify Connect function
103
Playing Spotify music with this unit
103
Convenience functions
104
Adding to HEOS Favorites
105
Playing back HEOS Favorites
105
Deleting a HEOS Favorites
106
Adjusting the volume of each channel to match the input source (Channel Level Adjust)
107
Adjusting the tone (Tone)
108
Displaying your desired video during audio playback (Video Select)
109
Adjusting the picture quality for your viewing environment (Picture Mode)
110
Playing the same music in all zones (All Zone Stereo)
111
Selecting a sound mode
112
Selecting a sound mode
113
Direct playback
114
Pure Direct playback
115
Auto surround playback
115
Description of sound mode types
116
Sound mode that can be selected for each input signal
120
Views on the display
123
HDMI Control function
124
Smart Menu function
125
Sleep timer function
127
Using the sleep timer
128
Quick select plus function
129
Calling up the settings
130
Changing the settings
131
Panel lock function
132
Disabling all key button operations
132
Disabling all button operations except VOLUME
132
Canceling the Panel lock function
133
Remote lock function
134
Disabling the sensor function of the remote control unit
134
Enabling the remote sensor function
134
Web control function
135
Playback in ZONE2 (Another room)
137
Connecting ZONE2
137
Playback in ZONE2
138
Settings
140
Menu map
140
Menu operations
144
Audio
145
Center Level Adjust
145
Subwoofer Level Adjust
145
Surround Parameter
146
Restorer
150
Audio Delay
151
Volume
152
Audyssey®
153
Graphic EQ
155
Video
157
Picture Adjust
157
HDMI Setup
158
Output Settings
164
On Screen Display
167
4K Signal Format
168
TV Format
169
Inputs
170
Input Assign
170
Source Rename
173
Hide Sources
173
Source Level
173
Speakers
174
Audyssey® Setup
174
Procedure for speaker settings (Audyssey® Setup)
176
Error messages
182
Retrieving Audyssey® Setup settings
183
Manual Setup
184
Amp Assign
184
Speaker Config.
185
Distances
189
Levels
191
Crossovers
192
Bass
193
Network
194
Information
194
Connection
194
Wi-Fi Setup
195
Settings
197
Network Control
199
Friendly Name
199
Diagnostics
200
AirPlay
200
HEOS Account
201
General
202
Language
202
ECO
202
ZONE2 Setup
206
Zone Rename
207
Quick Select Names
207
Front Display
208
Firmware
209
Information
212
Usage Data
213
Save & Load
214
Setup Lock
214
Reset
215
Limiting the operating zone with the remote control
216
Tips
218
Troubleshooting
220
Power does not turn on / Power is turned off
221
Operations cannot be performed through the remote control unit
222
Display on this unit shows nothing
222
No sound comes out
223
Desired sound does not come out
224
Sound is interrupted or noise occurs
227
No video is shown on the TV
228
The menu screen is not displayed on the TV
229
The color of the menu screen and operations content displayed on the television is different from normal
229
AirPlay cannot be played back
230
USB memory devices cannot be played back
231
Bluetooth cannot be played back
232
The Internet radio cannot be played back
233
Music files on PC or NAS cannot be played back
234
Various online services cannot be played
235
The HDMI Control function does not work
235
Cannot connect to a wireless LAN network
236
Update/upgrade error messages
237
Resetting factory settings
238
Resetting network settings
239
Appendix
240
About HDMI
240
Supported audio formats
242
Supported video signals
242
Relationship between video signals and monitor output
243
Playing back a USB memory devices
245
Playing back a Bluetooth device
246
Playing back a file saved on a PC or NAS
247
Playing back Internet Radio
248
Personal memory plus function
248
Last function memory
248
Sound modes and channel output
249
Sound modes and surround parameters
251
Types of input signals, and corresponding sound modes
254
Explanation of terms
257
Audyssey
257
Dolby
258
DTS
260
Audio
262
Video
264
Network
264
Others
265
Trademark information
266
Specifications
268
Audio section
268
Video section
269
Tuner section
270
Wireless LAN section
270
Bluetooth section
271
General
271
Dimensions
272
Weight
272
Index
273
License
276
Quick Start Guide
288
Cable Labels
301
Microphone Stand Assembly Instructions
302
Safety Instructions
303
Warranty
306
