Denon AVR-X1300W Service Manual

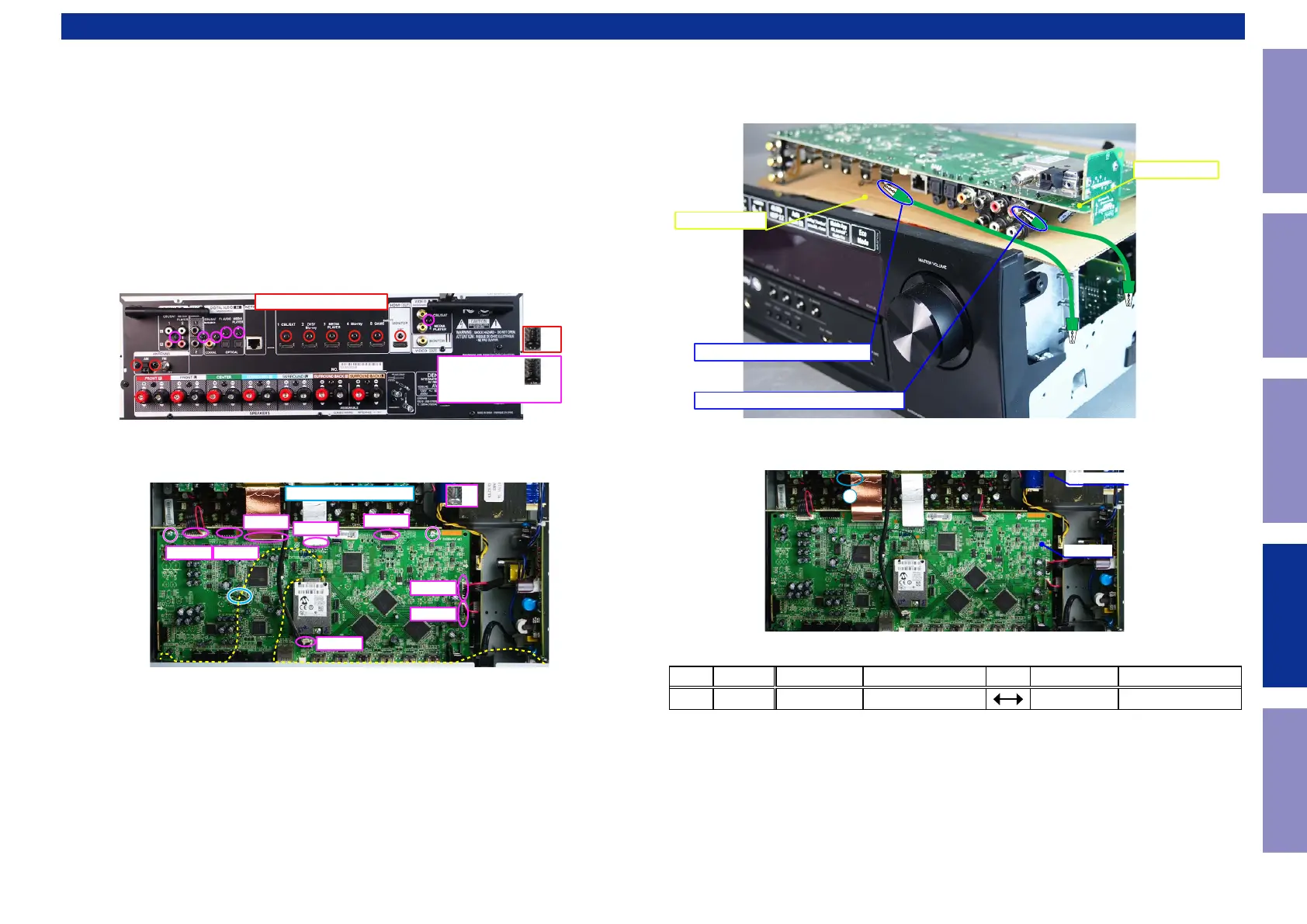

JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
Connection of Jig for DIGITAL PCB
---Items to Be Prepared---
8U-110084S : EXTENSION UNIT KIT : 1Set
Insulation sheet (Not supplied) : 1 sheet
Ground lead (Not supplied) : 2 pc
-Proceeding-
(1) Remove the screws.
(2) Remove the connector PCB.
Shooting direction: A
x8
x6
X1300WE3 only x7
FFC
FFC
CN804
CN823
CN741
CN762
CN822CN761
x2
CORD HOLDER x 1
(3) Remove the DIGITAL PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the DIGITAL PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
(4) Connect the expansion cables.
Board-to-Board Connections
No. Pin Ref. No. PCB Ref. No. PCB
q
15pin CN201 DIFF-AMP
CN822 DIGITAL
PCB DIGITAL
Insulation sheet
CHASSIS-HDMI CONNECTOR
CHASSIS-COMPOSIT CONNECTOR
DIFF-AMP
DIGITAL
1
127
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X1300W Specifications

General

Display	-
Product color	Black
Audio decoders	DSD, Dolby TrueHD
Audio amplifier	Yes
Multi-Zone quantity	2
Apple docking compatibility	Not supported
Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	16 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Power output per channel (20-20KHz@8 Ohm)	145 W
Audio formats supported	AAC, AIFF, ALAC, FLAC, MP3, WAV, WMA
HDMI in	6
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Supported video modes	2160p
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Connectivity technology	Wired
Speakers connectivity type	3.5mm
Optical drive included	No

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	215 mm
Weight	8500 g
