Denon AVR-X1300W Service Manual

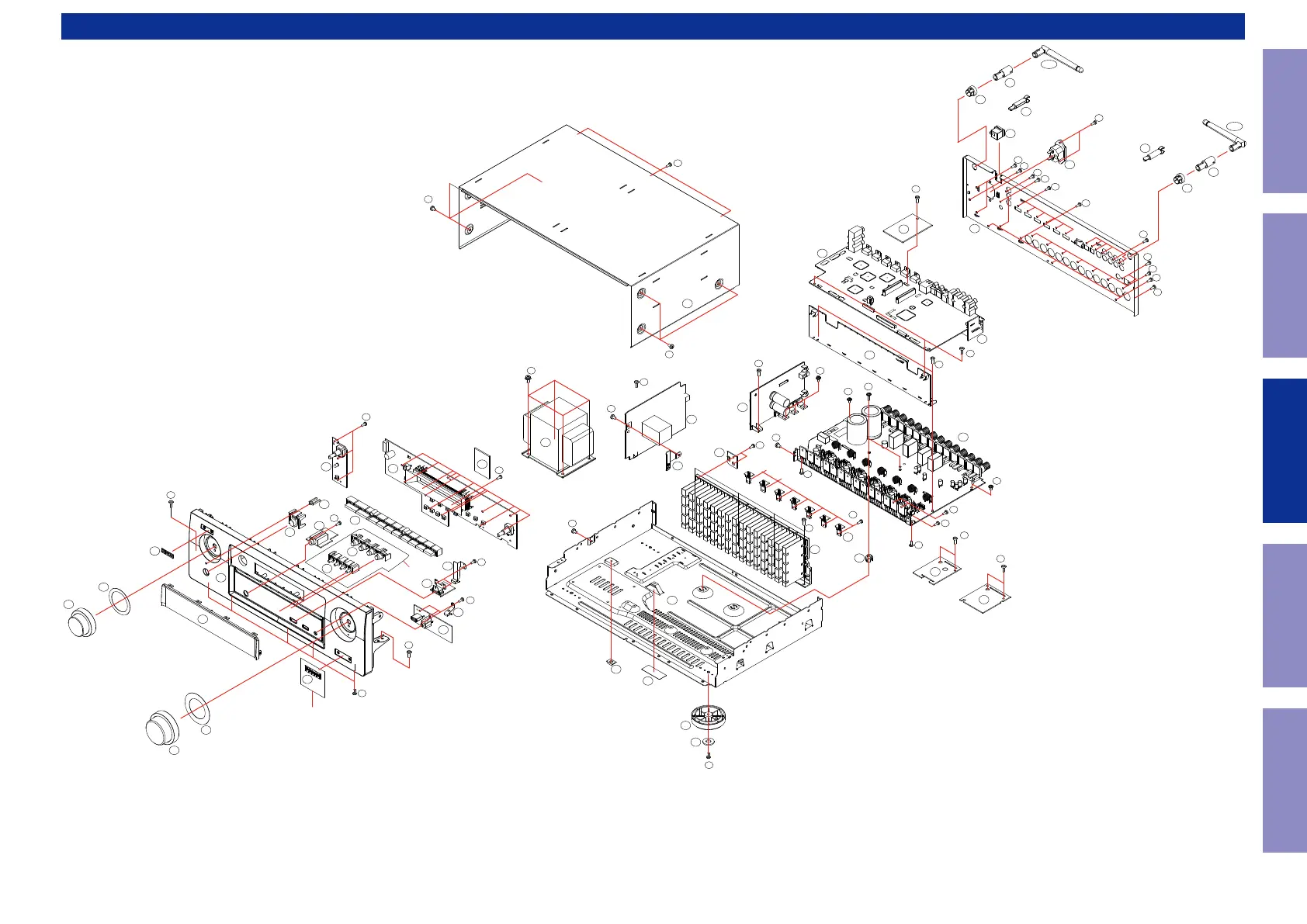

EXPLODED VIEW
WARNING:
Parts marked with this symbol
z
have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
z
z
F1
F2
F3
F4
F6
F7
F5
F9
F10
F11
F14
F15
M1
M2
M3
M4
M5
M6
M7
M9
M11
M12
M13
M14-1
M11
M12
M13
M14-2
M15
M8
M10
P1
P2
P4
P3
P5
P6
P7
P9
P8
P10
P11
P12
P13
P15
P16
S5
x5
S4
x2
S4
x2
S4
x3
S13
x1
S4
x13
S10
x4
S1
x1
S7
x1
S1
x1
S1
x1
S11
x3
S7
x1
S8
x2
S7
x1
S1
x1
S1
x1
S12
x14
S1
x2
S12
x7
S1
x2
S7
x4
S6
x3
S9
x3
S9
x3
S1
x2
S2
x2
S6
x1
S3
x2
S6
x1
S3
x2
S3
x6
S6
x6
S3
x2
S6
x7
S6
x3
S6
x1
S7
x1
S7
x1
S2
x4
S6
x2
F16
ONLY BKE3
P18
S4
x2
P19
P14
S2
x1
F17
F12
F13
S7
x1
S7
x1
S3
x1
ONLY S720W
58
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X1300W Specifications

General

Display	-
Product color	Black
Audio decoders	DSD, Dolby TrueHD
Audio amplifier	Yes
Multi-Zone quantity	2
Apple docking compatibility	Not supported
Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	16 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Power output per channel (20-20KHz@8 Ohm)	145 W
Audio formats supported	AAC, AIFF, ALAC, FLAC, MP3, WAV, WMA
HDMI in	6
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Supported video modes	2160p
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Connectivity technology	Wired
Speakers connectivity type	3.5mm
Optical drive included	No

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	215 mm
Weight	8500 g
