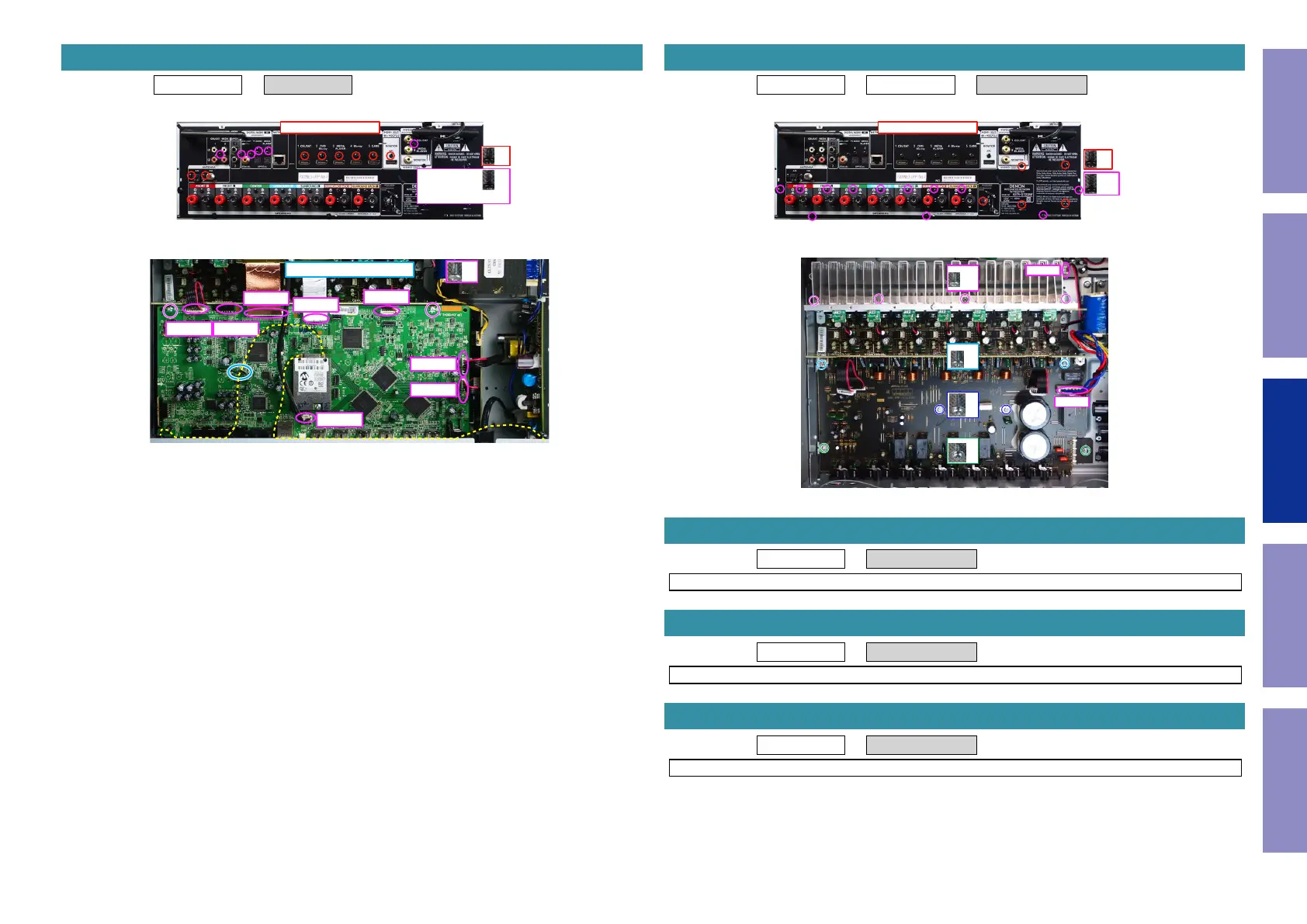

Proceeding : TOP COVER → DIGITAL PCB
(1) Remove the screws.
(2) Remove the CORD HOLDER and connectors. Remove the FFC. Remove the screws.
2. DIGITAL PCB
Shooting direction: A
x8
x6
X1300WE3 only x7
FFC
FFC
CN804
CN823
CN741
CN762
CN822CN761
x2
CORD HOLDER x 1
Proceeding : TOP COVER → DIGITAL PCB → RADIATOR ASSY
(1) Remove the screws.
(2) Remove the screws. Remove the connector.
Proceeding : TOP COVER → SMPS PCB
See "EXPLODED VIEW" for instructions on removing the SMPS PCB.
Proceeding : TOP COVER → REGULATOR PCB
See "EXPLODED VIEW" for instructions on removing the REGULATOR PCB.
Proceeding : TOP COVER → TRANS POWER
See "EXPLODED VIEW" for instructions on removing the transformer (TRANS).
3. RADIATOR ASSY
Shooting direction: A
x5
x12
x2
x2
x2
x4
CN502
CN104
4. SMPS PCB
5. REGULATOR PCB
6. TRANS POWER
