Denon AVR-X1600H Service Manual

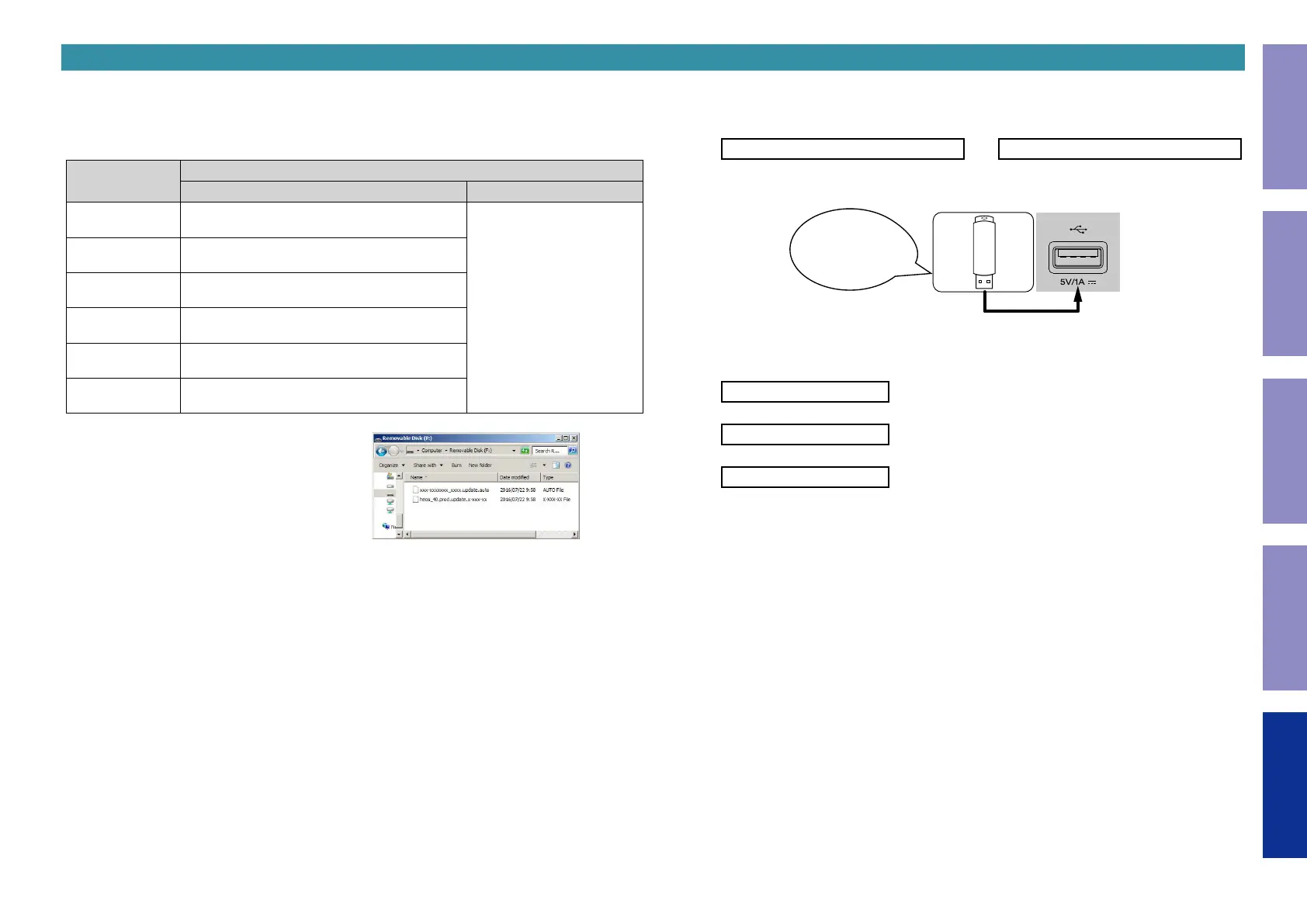

5. Normal Firmware Update Method from USB Flash Drive
5.1. File structure on USB ash drive
Copy the normal update les onto the USB ash drive in the following structure.
After unzipping the HW component USB update les for the target model and LEGO USB update les,
store them in the root of the same USB ash drive.
Model Area
Download from SDI
For HW component For LEGO component
North America (E3)
DPMS_AVR-X1600HE3_LEGO_xxxx.zip
Product ID : 000101150100
heos_40.prod_x.xxx.xx.zip
Europe (E2)
DPMS_AVR-X1600HE2_LEGO_xxxx.zip
Product ID : 000101150200
Japan (JP)
DPMS_AVR-X1600HJP_LEGO_xxxx.zip
Product ID : 000101150400
China (E1C)
DPMS_AVR-X1600HE1C_LEGO_xxxx.zip
Product ID : 000101150500
North America (E3)
DPMS_AVR-S750HE3_LEGO_xxxx.zip
Product ID : 000101150700
Europe (E2)
DPMS_AVR-S750HE2_LEGO_xxxx.zip
Product ID : 000101150900
USB ash drive root
+ AVR-xxxxHxx_xxxx.update.auto
+ heos_40.prod.update.x-xxx-xx
5.2. Start normal update
NOTE :
• Remove the LAN cable from this unit when updating.
(Do not connect to a wired or wireless network.)
• Do not remove the USB ash drive until updating is completed.
• Do not turn off the power until updating is completed.
• It takes a maximum of approximately 25 minutes for update to complete.
Once an update is started, normal operations cannot be performed until it is completed.
The GUI menu settings and image adjustment settings of this unit may be initialized.
Note down the settings before updating, and set them again after updating.
(1) Press the power button to turn on the power.
(2) Wait for this unit to start up.
(3) Set the input source to HEOS Music.
Check that the display is as shown below.
–TuneIn Internet Radio
or
No Network Connection
Content of the display is scrolled.
(4) Insert the USB ash drive into the USB port.
(5) USB Update starts automatically.
The Standby LED lights red.
Display during USB update
Please wait–––––
↓
Update–––**% **m
↓
Update Completed
It takes a maximum of approximately 25 minutes for update to complete.
(6) The unit restarts when update is complete.
(7) After updating the rmware, check the version.
See "1. Version Display Mode"
Download firmware
in USB flash drive.
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
158

Denon AVR-X1600H Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	4 - 16 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	6
AC (power) in	Yes
Composite video in	2
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Clamp terminals
Display	-
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
AM band range	520 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Pandora, Spotify, Tidal, TuneIn
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	440 W
Operating temperature (T-T)	5 - 35 °C
Package weight	10600 g
Certification	CE
Package depth	435 mm
Package width	523 mm
Package height	232 mm

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	215 mm
Weight	8600 g
