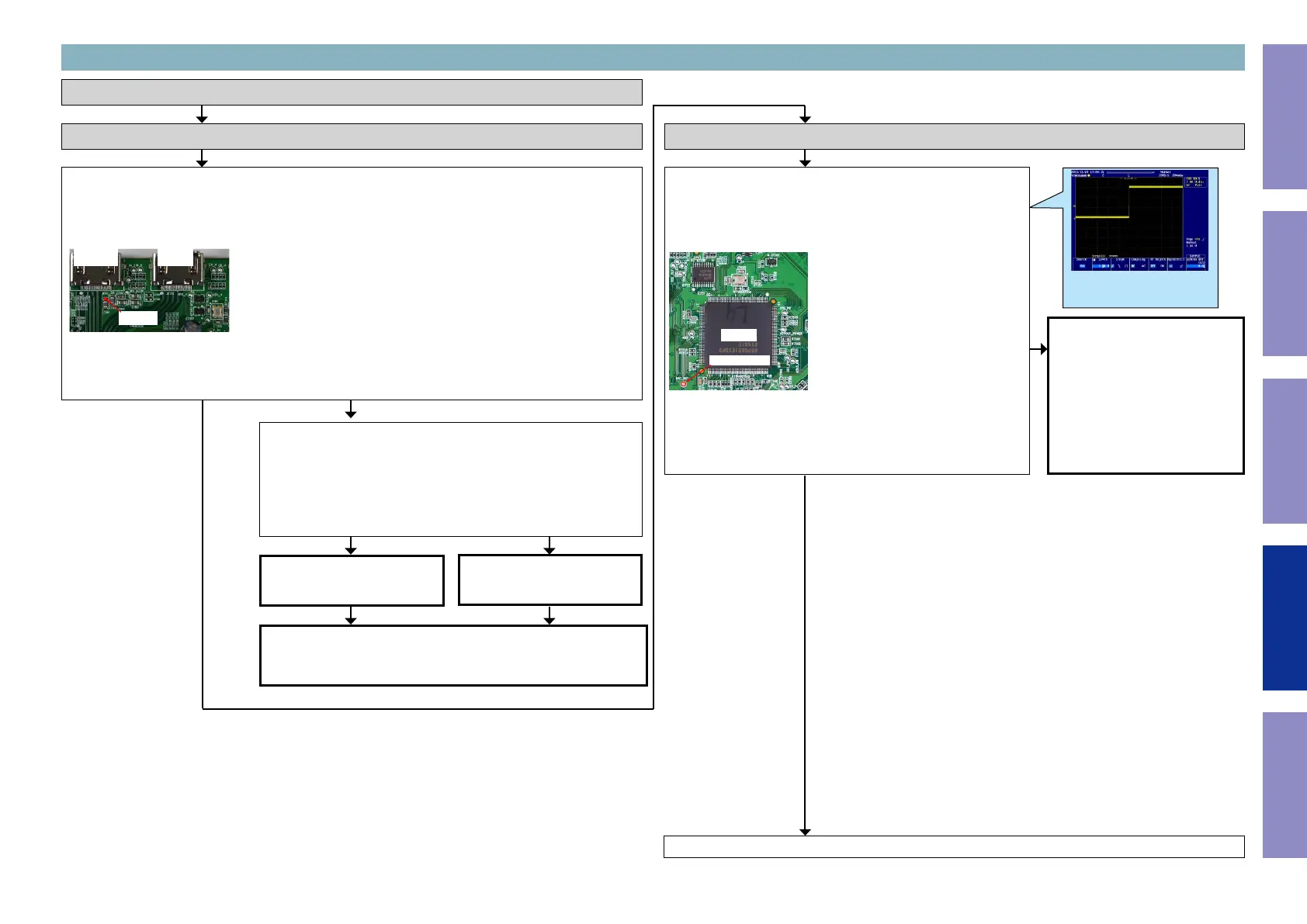

3-7. Error Code H1-16 failure detection procedure
Check the power supply voltage. (ARC IC)
Check item(3-7.1.). Check the power supply voltage. :
Does the power supply voltage of the ARC IC [IC724] indicate the correct voltage (1.2V)?
The test points are as follows.
JK731
HDMI 4
[GAME]
JK741
HDMI 5
[MEDIA PLAYER]
L7364
Check item(3-7.2.). Check the power supply voltage. :
Check the power components [IC725] and the pattern on the sub-
strate.
If there is no problem, remove the ARC IC [IC724] from the substrate
and measure the voltage at the test point of check item (3-7.1.).
Is the power supply voltage correct (1.2V)?
Replace with a new device.
The power supply circuit is
faulty.
Replace the PCB.
Recheck from check item (3.1.).
If it does not work, replace the PCB.
Checking device. [IC724 : Sil9437]
NOYES
NOYES
Go to next page.
YES
Checking the reset waveform. (ARC IC)
Check item(3-7.3.). Checking the reset waveform :
Check the waveform.
Is the "RESET" waveform of the ARC IC [IC724] correct (like the
one shown in the diagram) when the power is turned on?
The test points are fallows.
IC751
ARC_RST
Check the reset circuit between
CPU [IC751] and ARC IC [IC724].
If there is no problem, the ARC IC
[IC724] is faulty.
Replace with a new device.
Recheck from check item (3.1.).
If it does not work, replace the
PCB.
NO
Examples of conrmation waveform
Voltage scale : 1.0V/div
Time scale : 20ms/div
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
97
