Denon AVR-X1600H Service Manual

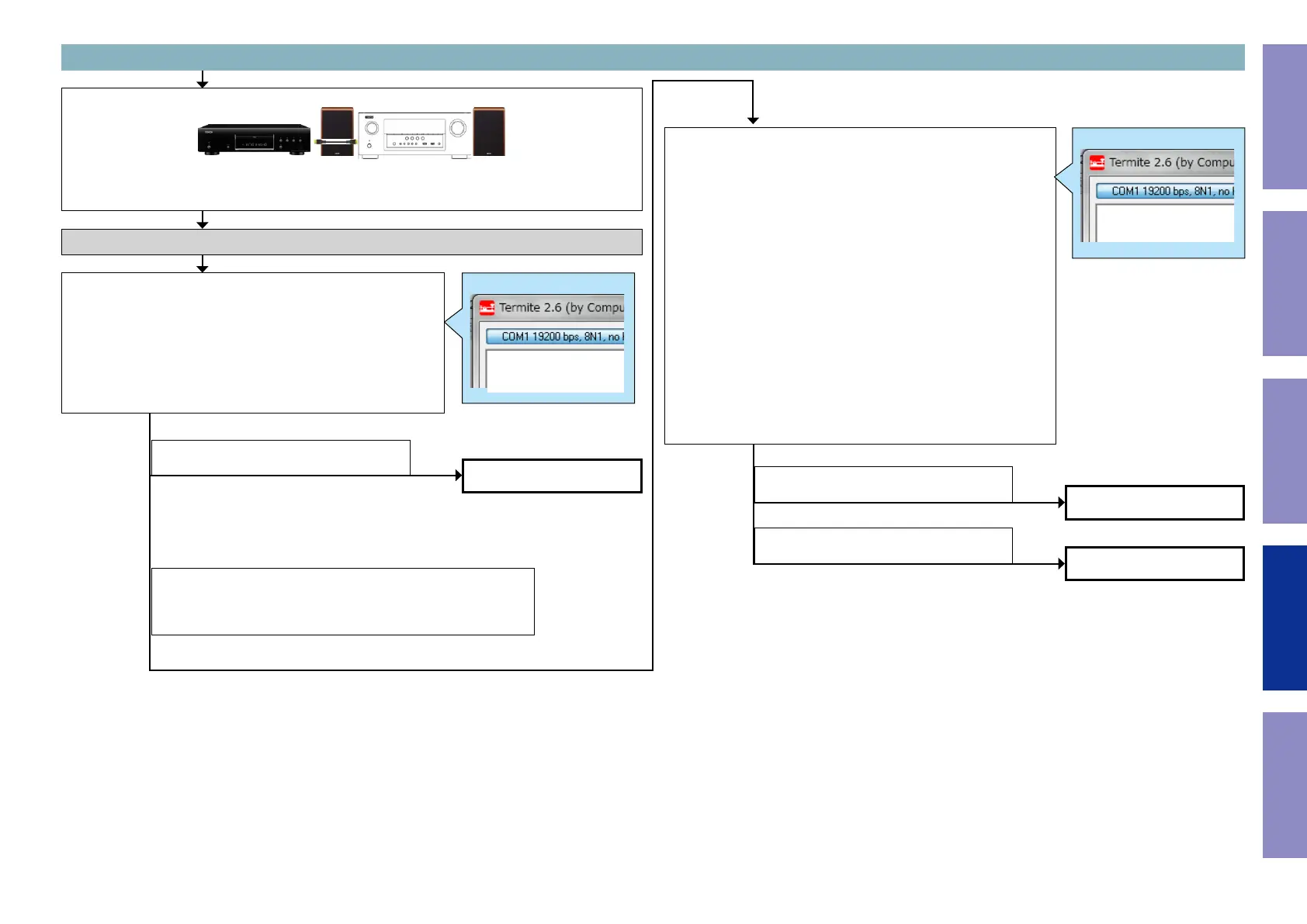

3-8. HDMI Rx [MN864788] failure detection procedure
Checking operation between the HDMI (Rx/Tx) device and the player
b
In order to check, connect the player to the HDMI terminal and congure the player as AVR source.
Check the sound output while turning on the player.
Checking the +5V/DDC status register (HDMI Rx/Tx)
Check item(3-8.1.). Checking the 5V status register :
Send the following command from Termite.exe.
Send the command "i 0006 00FF 0001".
Move to the branch destination according to the value returned.
Example
i 0006 00FF 0001
HDMI IN 4, 5 "00"
(Detection of 5V is not OK.)
"00 or 04"
(Detection of DDC is not OK.)
"22"
(Detection of DDC is OK)
HDMI IN4 "22 or 20"HDMI IN5 "11 or 10"
(Detection of 5V is OK)
Go to check item (3-8.3.).
Go to check item (3-8.4.)
Go to check item (3-8.5.)
Check item(3-8.2.). Checking the DDC status register :
Send the following command from Termite.exe.
Case of HDMI IN4
Send the command "i 0003 0054 0001".
Case of HDMI IN5
Send the command "i 0003 0024 0001".
Move to the branch destination according to the value returned.
Example
i 0003 0054 0001
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
99

Denon AVR-X1600H Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	4 - 16 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	6
AC (power) in	Yes
Composite video in	2
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Clamp terminals
Display	-
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
AM band range	520 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Pandora, Spotify, Tidal, TuneIn
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	440 W
Operating temperature (T-T)	5 - 35 °C
Package weight	10600 g
Certification	CE
Package depth	435 mm
Package width	523 mm
Package height	232 mm

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	215 mm
Weight	8600 g
