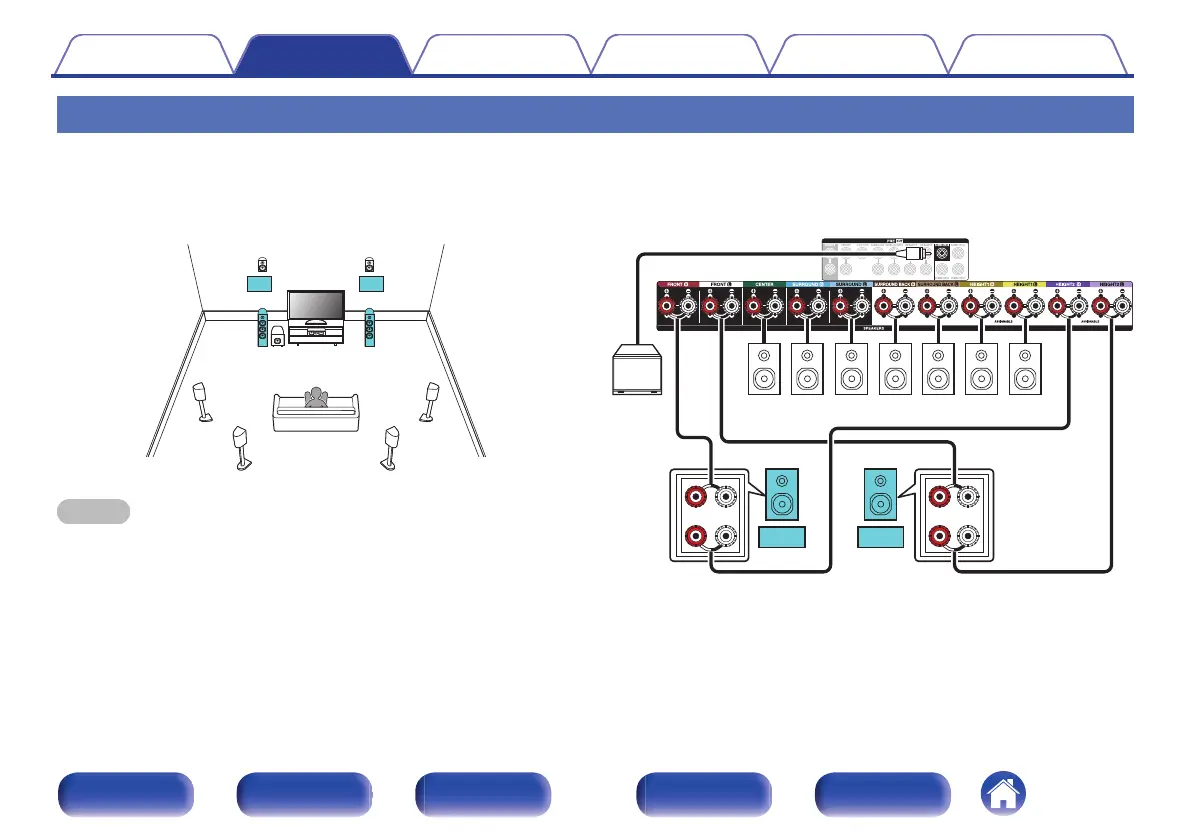

Connecting 7.1-channel speakers: Bi-amp connection of front speakers
This system plays back 7.1-channels. You can use the bi-amp connection for front speakers. Bi-amp connection is a method to connect separate
amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This connection enables back EMF (power returned
without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality.
You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically
switch according to the input signal and sound mode.
FHL
SW
C
SL
SBL
FHR
SR
SBR
FL
(Bi-Amp)
FR
(Bi-Amp)
NOTE
0
When making bi-amp connections, be sure to remove the short-circuiting plate or
wire between the speaker’s woofer and tweeter terminals.
wqwq
(R) (L)
FLFR
SW
SBR SBL FHR FHLCSRSL
z
2
z
2
z
1
z
1
z1
The speaker terminals for bi-amp connections to the front speakers vary
depending on the MAIN ZONE layout. Refer to “Amp Assign” - “Bi-Amp”.
(v p. 212)
z2
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers
can be connected to the HEIGHT1 speaker terminals. Set the speaker to be
connected from “Height” - “Layout” in the menu. (v p. 208)
