Inputs
Perform settings related to input source playback.
You do not have to change the settings to use the unit. Make settings when needed.

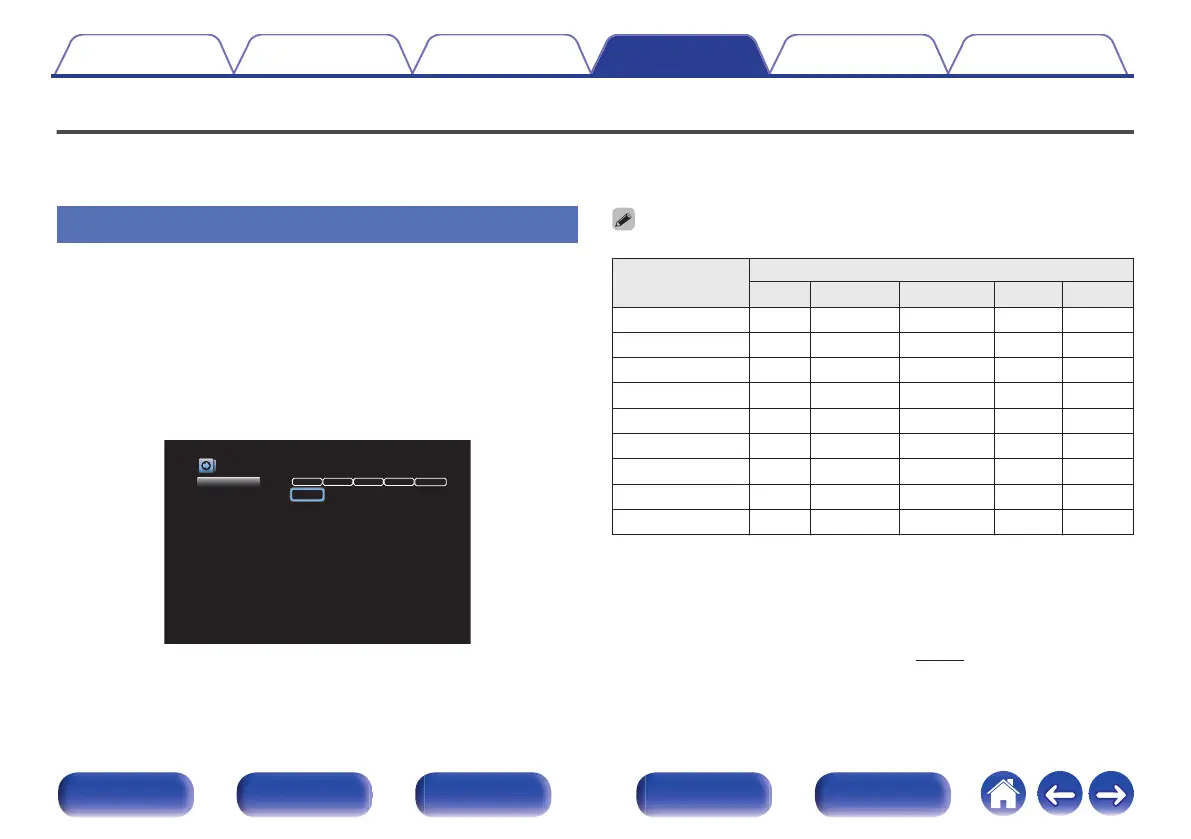

Input Assign
By making connections as indicated by the input sources printed on the
audio/video input connectors of this unit, you can just press one of the
input source select buttons to easily play back audio or video from a
connected device.
Please change the assignment of the HDMI input connector, digital audio
input connector, analog audio input connector, component video input
connector and video input connector when connecting an input source
that differs from that printed to the audio/video input connectors of this
unit.
.
DIGITAL ANALOGHDMI COMP VIDEO
Inputs/Input Assign
Set Defaults
CBL/SAT
DVD
Blu-ray
Game
Media Player
TV Audio
AUX1
AUX2
1
2
3
4
5
-
Front
6
1
2
3
4
-
-
Front
-
1
2
-
-
-
-
-
-
1
2
-
3
-
-
Front
-
COAX1
COAX2
-
-
-
OPT1
-
-
Changes HDMI input assignments
CD - 5 - -
OPT2
0
By default, each item is set as follows.
Input source
Input connector
HDMI DIGITAL ANALOG COMP VIDEO
CBL/SAT 1 COAX1 1 1 1
DVD 2 COAX2 2 2 2
Blu-ray 3 – 3 – –
Game 4 – 4 – 3
Media Player 5 – – – –
TV Audio – OPT1 – – –
AUX1 Front – Front – Front
AUX2 6 – – – –
CD – OPT2 5 – –
n
TV set top box/satellite users please note
When using the digital audio output on a TV/satellite box:
To play the video signal assigned to “HDMI” combined with the audio
signal assigned at “Input Assign” - “DIGITAL”, you will also need to
select “Digital” in the “Input Mode”. (v p. 207)
