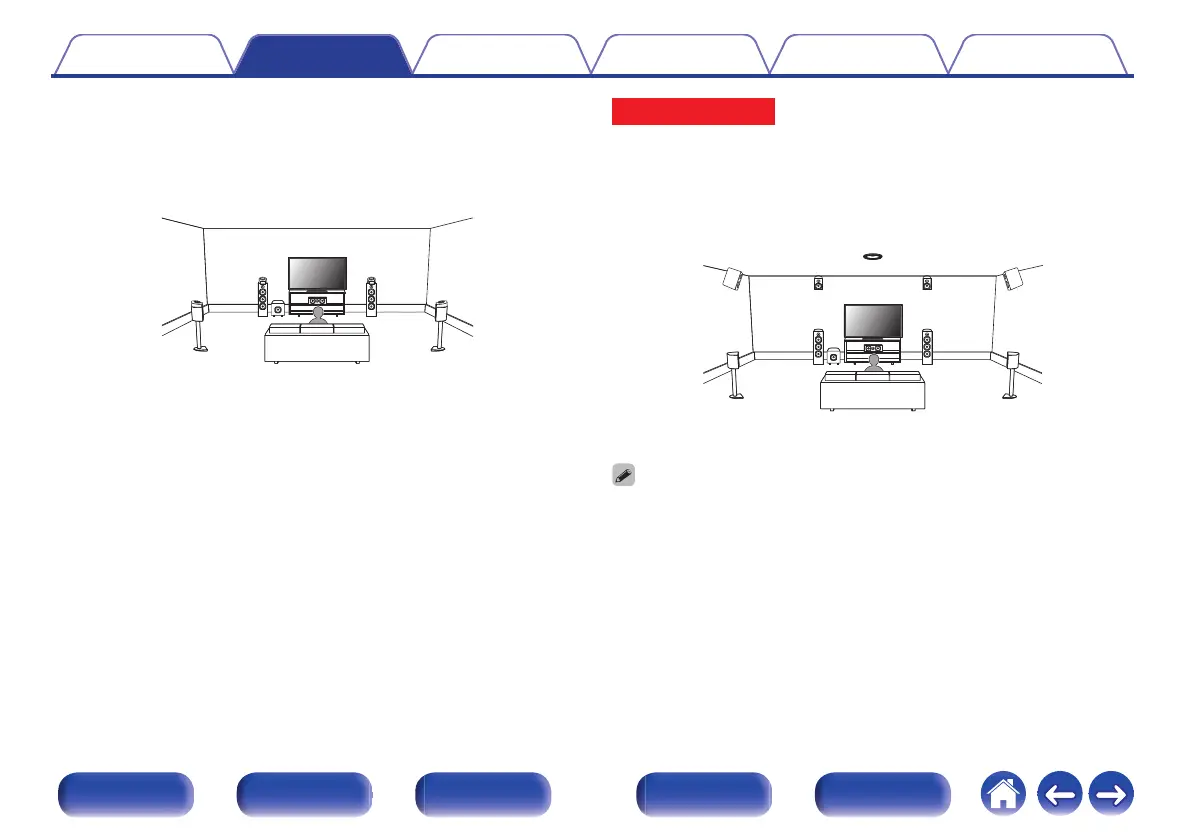

Dolby Atmos Enabled speaker layout example
Combination of 5.1-channel layout and front Dolby/surround Dolby
speakers.
.
C
FL FR
FDL FDR
SW
SL SR
SDL SDR
Upgrade (Auro-3D)
n
Auro-3D layout example
Combination of 5.1-channel speakers with Front Height/Surround
Height/Top Surround speakers.
.
FHL FHR
SHL
SHR
TS
FL FR
SW
SL SR
C
0
For the best Auro-3D experience Surround Height speakers are recommended,
however you may substitute Rear Height speakers from a Dolby Atmos speaker
setup in place of Surround Height speakers.
