TECHNICAL SPECIFICATIONS FOR AVR-X510BT
n
Audio Section
• Power amplifier
Rated output :
Front :
70 W + 70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
90 W + 90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Center :
70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Surround :
70 W + 70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
90 W + 90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Output connectors : 6 – 16 Ω/ohms
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (Direct mode)
S/N : 98 dB (IHF–A weighted, Direct mode)
n
Tuner section
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10
–15
W)
Reception frequency range (for E1 / E1C) :
[FM] 87.5 MHz – 108.0 MHz [AM]522 kHz – 1611 kHz
Effective sensitivity :
[FM]1.2 μV (12.8 dBf) [AM]18 μV
50 dB sensitivity :
[FM]MONO 2.8 μV (20.2 dBf)
S/N ratio:
[FM]MONO 70 dB (IHF–A weighted, Direct mode)
STEREO 67 dB (IHF–A weighted, Direct mode)
Distortion (at 1 kHz) :
[FM]MONO 0.7 %
STEREO 1.0 %
n
Bluetooth Section
Communications system : Bluetooth Version 2.1 + EDR
(Enhanced Data Rate)
Transmission power : Maximum 2.5 mW (Class 2)
Maximum communication range : Approx. 10m 2 in line of sight
Frequency band : 2.4 GHz band
Modulation scheme : FHSS (Frequency-Hopping Spread Spectrum)
Supported proles : A2DP (Advanced Audio Distribution Prole)1.2
AVRCP (Audio Video Remote Control Prole)1.4
Corresponding codec : SBC, AAC
Transmission range (A2DP) : 20 Hz - 20,000 Hz
n
General
Power supply : (for E1) : AC 230 V, 50 Hz / 60Hz
(for E1C) : AC 220 V, 50 Hz
Power consumption :310W
Power consumption in standby mode: 0.1 W
Power consumption in CEC standby mode: 0.5W
Power consumption when Bluetooth standby is used: 1W

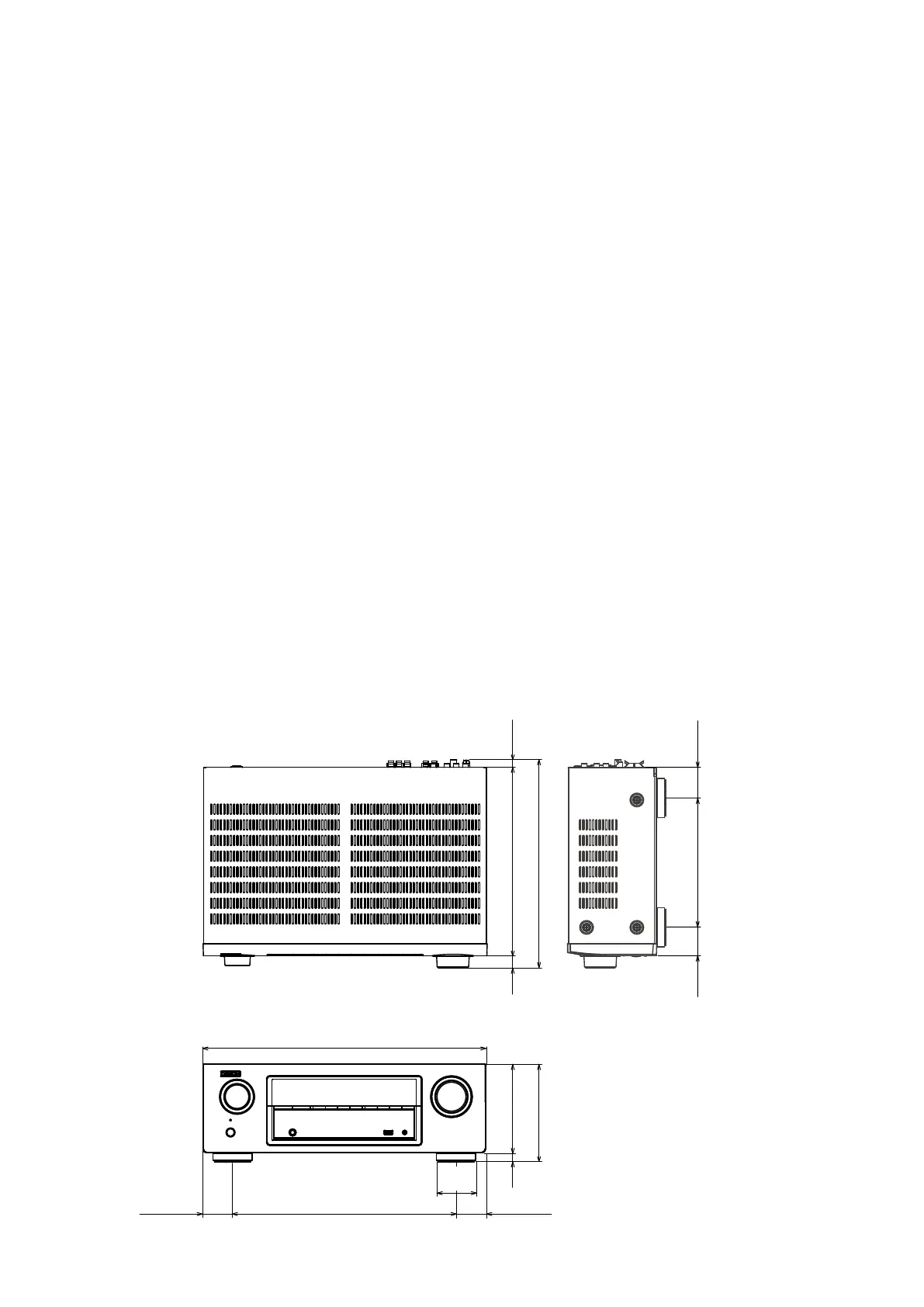

DIMENSION
Unit : in. (mm)
Weight : 16 lbs 9 oz (7.5 kg)
10
To Next Page
