Denon AVR-X540BT User Manual

.
MASTER VOLUME
PHONES
SETUP MIC
TUNER
PRESET CH
TUNE
DIMMER STATUS
QUICK SELECT
BluetoothGAMECBL/SAT
3214
DVD/Blu-ray
SOURCE SELECT
Q
4
Q
3
Q
2
Q1
K

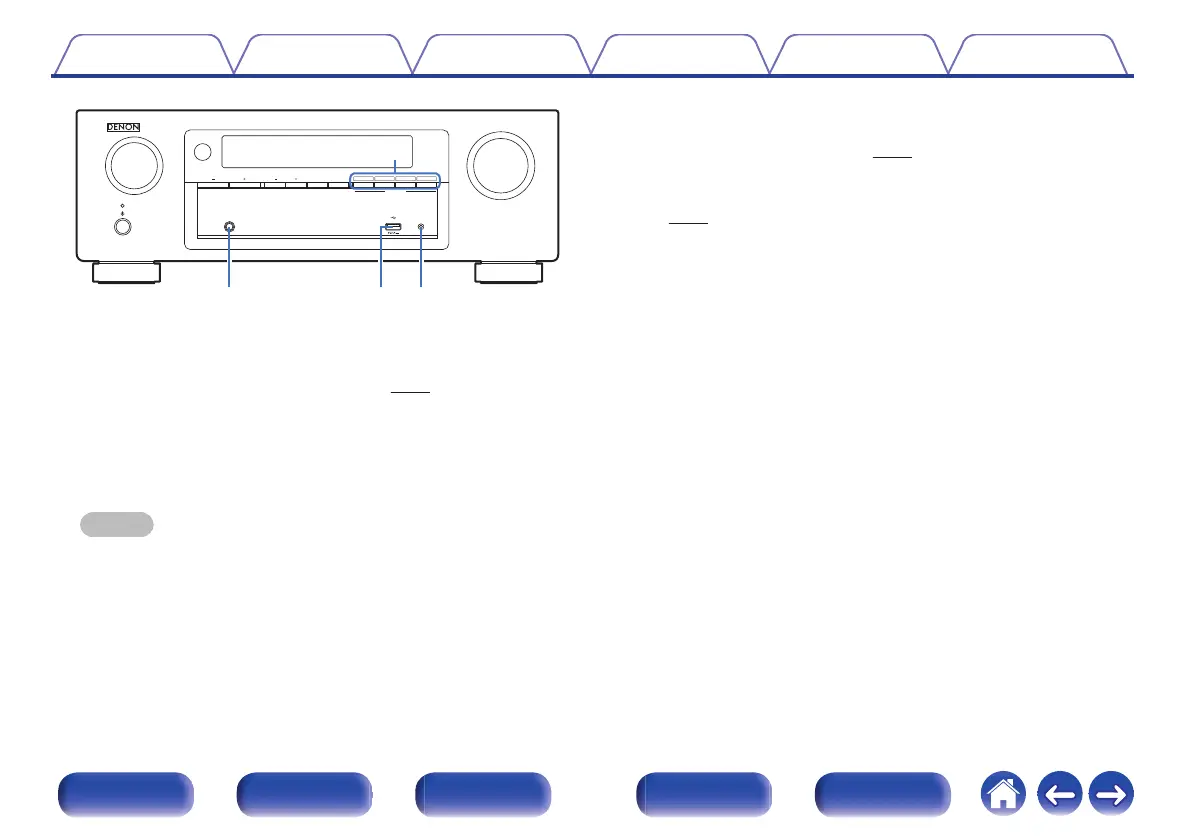

QUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v
p. 68)
L
Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the SUBWOOFER
connectors.
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
M
USB port (T)
This is used to connect USB storages (such as USB memory devices)
and the USB cable supplied. (v
p. 33)
N
SETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v
p. 89)
Contents
Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

Denon AVR-X540BT Specifications

General

Channels	5.2
HDMI Inputs	5
HDMI Outputs	1
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Auto Speaker Calibration	No
Number of Power Amps	5
Output Power (6 ohm, 1 kHz, 0.7% 2ch Drive)	90 W
Output Power (6 ohm, 1 kHz, 10% 1ch Drive)	140 W
Composite In	2
Composite Out	1
Digital In: Optical	2
Analog In	2
Speaker Terminal: Screw	Yes
FM Tuner with RDS	Yes
3D Signal Pass-Through	Yes
Audio Return Channel	Yes
HDMI Standby Pass-Through	Yes
CEC	Yes
Auto Speaker Setup by Microphone	No
Dimensions (W x H x D)	434 x 151 x 319 mm
Weight	7.5 kg
Total Harmonic Distortion	0.08 %
Input Sensitivity/Impedance	200 mV / 47 kΩ
Signal-to-Noise Ratio	98 dB
Ethernet Port	No
Wi-Fi	No
Power Output per Channel	70W (8 ohms, 20Hz - 20kHz, 0.08% THD)
Frequency Response	10Hz - 100kHz
Supported Audio Formats	MP3, WMA, AAC
