Denon AVR-X540BT User Manual

.
MASTER VOLUME
PHONES
SETUP MIC
TUNER
PRESET CH
TUNE
DIMMER STATUS
QUICK SELECT
BluetoothGAMECBL/SAT
3214
DVD/Blu-ray
SOURCE SELECT
trqw e y
uioQ0

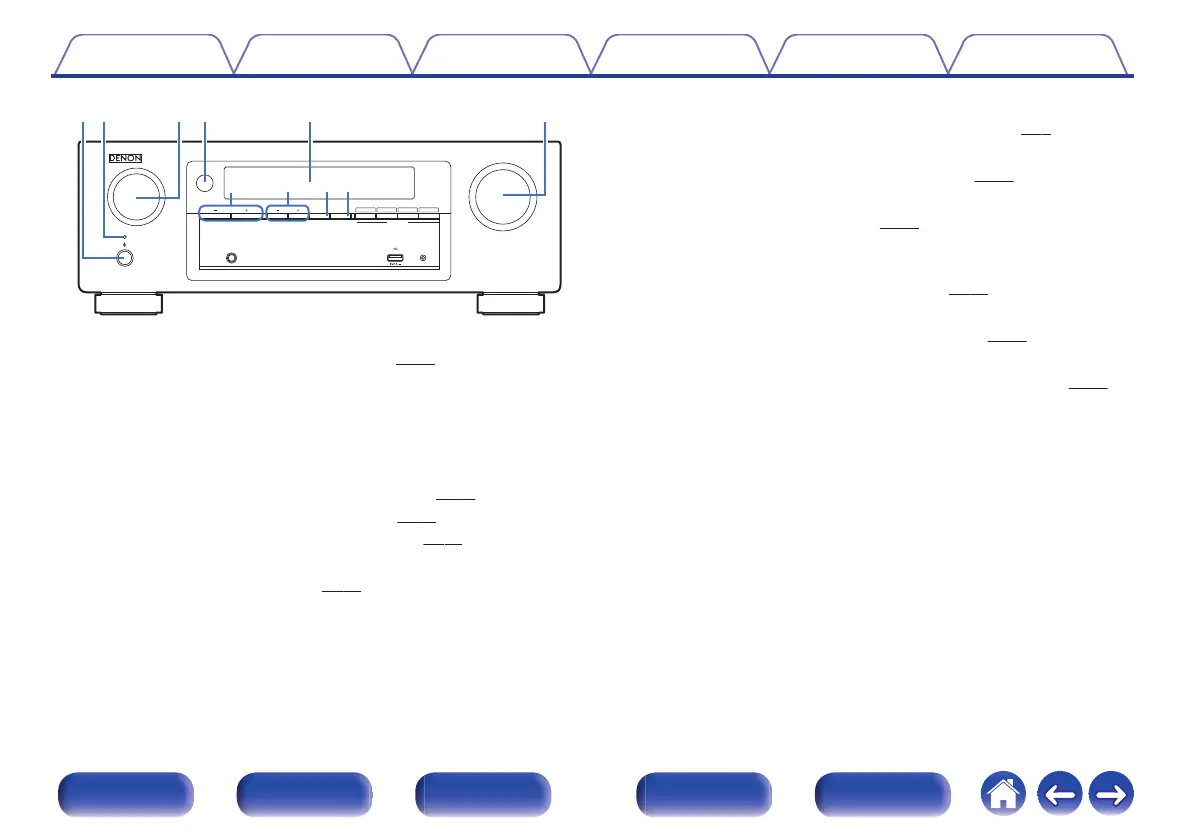

A
Power operation button (X)
Used to turn the power on/off (standby). (v p. 38)
B
Power indicator
This is lit as follows according to the power status:
0
Green: Power on
0
Off: Normal standby
0
Red:
0
When “HDMI PassThrough” is set to “On” (v p. 80)
0
When “HDMI Control” is set to “On” (v
p. 81)
0
When “BluetoothStandby” is set to “On” (v p. 97)
C
SOURCE SELECT knob
This selects the input source. (v p. 38)
D
Remote control sensor
This receives signals from the remote control unit. (v
p. 6)
E
Display
This displays various pieces of information. (v p. 13)
F
MASTER VOLUME knob
This adjusts the volume level. (v
p. 39)
G
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v
p. 53)
H
Tuning buttons (TUNE +, –)
Select either FM broadcast or AM broadcast. (v p. 48)
I
DIMMER button
Each press of this switches the brightness of the display. (v p. 98)
J
STATUS button
Each press of this switches the status information that is shown on the
display.
Contents
Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

Denon AVR-X540BT Specifications

General

Channels	5.2
HDMI Inputs	5
HDMI Outputs	1
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Auto Speaker Calibration	No
Number of Power Amps	5
Output Power (6 ohm, 1 kHz, 0.7% 2ch Drive)	90 W
Output Power (6 ohm, 1 kHz, 10% 1ch Drive)	140 W
Composite In	2
Composite Out	1
Digital In: Optical	2
Analog In	2
Speaker Terminal: Screw	Yes
FM Tuner with RDS	Yes
3D Signal Pass-Through	Yes
Audio Return Channel	Yes
HDMI Standby Pass-Through	Yes
CEC	Yes
Auto Speaker Setup by Microphone	No
Dimensions (W x H x D)	434 x 151 x 319 mm
Weight	7.5 kg
Total Harmonic Distortion	0.08 %
Input Sensitivity/Impedance	200 mV / 47 kΩ
Signal-to-Noise Ratio	98 dB
Ethernet Port	No
Wi-Fi	No
Power Output per Channel	70W (8 ohms, 20Hz - 20kHz, 0.08% THD)
Frequency Response	10Hz - 100kHz
Supported Audio Formats	MP3, WMA, AAC
