Denon AVR-X540BT User Manual

Connecting speakers
Install speakers and connect them to this unit. (“Speaker installation” (v p. 20), “Speaker connection” (v p. 22))

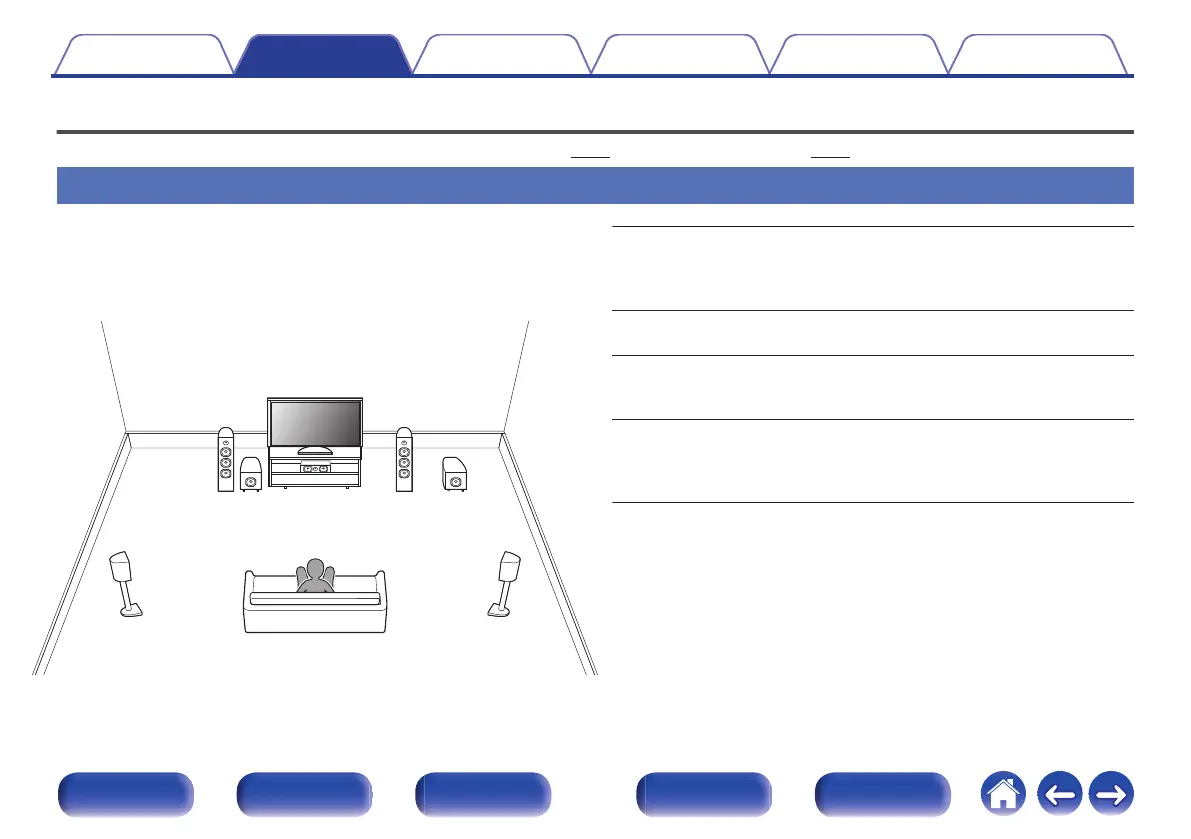

Speaker installation
Determine the speaker system depending on the number of speakers you
are using and install each speaker and subwoofer in the room.
Speaker installation is explained using this example of a typical
installation.
.
FL
SW1
C
SL
FR
SR
SW2
FL/FR
(Front speaker left/
right):
Place the FRONT left and right speakers an
equal distance from the main listening position.
The distance between each speaker and your TV
should also be the same.
C
(Center speaker):
Place the CENTER speaker in between the front
speakers and above or below your TV.
SL/SR
(Surround speaker left/
right):
Place the SURROUND left and right speakers an
equal distance to the left and right sides of the
main listening position.
SW 1/2
(Subwoofer) :
Place the SUBWOOFER at a convenient location
near the front speakers. If you have two
subwoofers, place them asymmetrically across
the front of your room.
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index

Denon AVR-X540BT Specifications

General

Channels	5.2
HDMI Inputs	5
HDMI Outputs	1
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Auto Speaker Calibration	No
Number of Power Amps	5
Output Power (6 ohm, 1 kHz, 0.7% 2ch Drive)	90 W
Output Power (6 ohm, 1 kHz, 10% 1ch Drive)	140 W
Composite In	2
Composite Out	1
Digital In: Optical	2
Analog In	2
Speaker Terminal: Screw	Yes
FM Tuner with RDS	Yes
3D Signal Pass-Through	Yes
Audio Return Channel	Yes
HDMI Standby Pass-Through	Yes
CEC	Yes
Auto Speaker Setup by Microphone	No
Dimensions (W x H x D)	434 x 151 x 319 mm
Weight	7.5 kg
Total Harmonic Distortion	0.08 %
Input Sensitivity/Impedance	200 mV / 47 kΩ
Signal-to-Noise Ratio	98 dB
Ethernet Port	No
Wi-Fi	No
Power Output per Channel	70W (8 ohms, 20Hz - 20kHz, 0.08% THD)
Frequency Response	10Hz - 100kHz
Supported Audio Formats	MP3, WMA, AAC
