Denon AVR-X580BT Quick Start Guide

5
HDMI IN
(ARC/eARC)
HDMI OUT
MONITOR
(ARC/eARC)
HDMI cable
AVR (Rear panel)

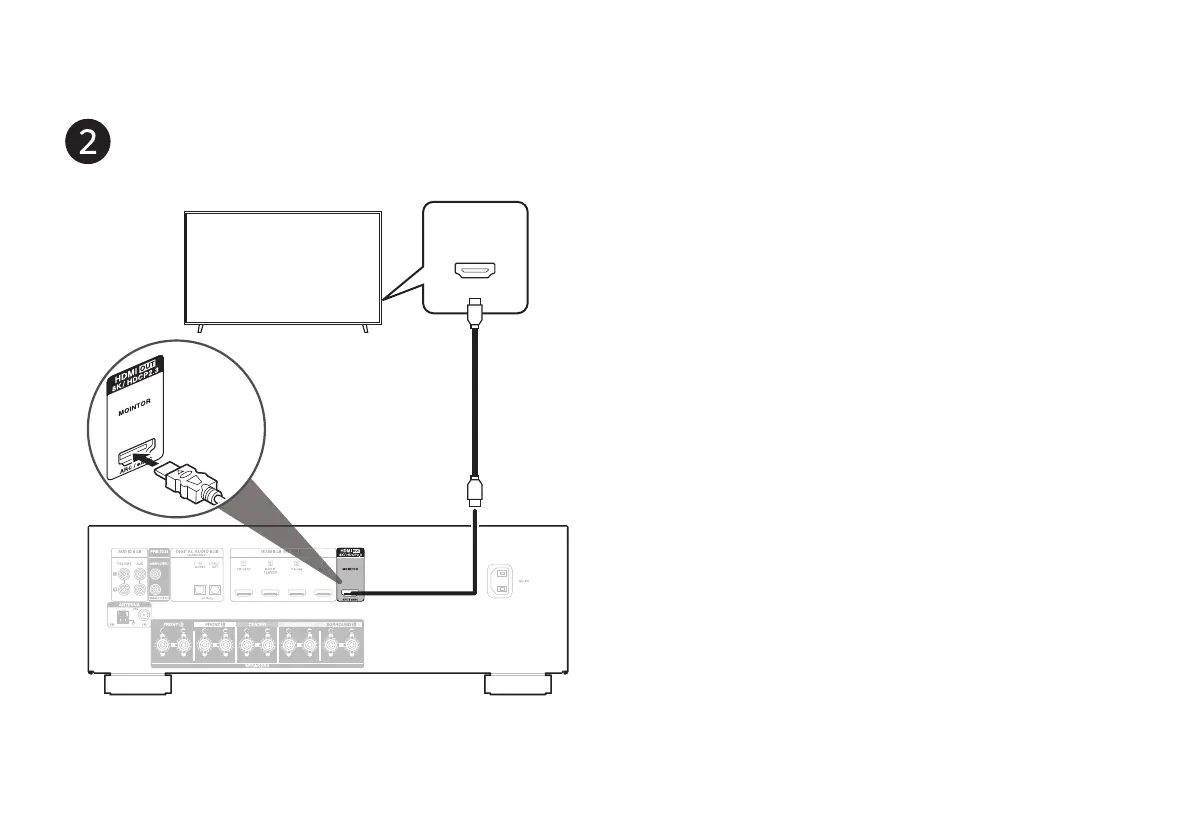

Connect the AVR to your TV
Using a high quality HDMI cable*, connect one end to the HDMI
port labeled “eARC” or “ARC” on your TV. Connect the other
end to the HDMI OUT MONITOR port on your AVR.
What is ARC and eARC?
Audio Return Channel or “ARC” sends audio back to the AVR
using the same HDMI cable that sends video from your AVR
to your TV. This allows your AVR to process the sound from
your TV’s built-in tuner and apps. TVs with an Enhanced Audio
Return Channel or “eARC” port provide additional support for
high bitrate multichannel audio (Dolby TrueHD and DTS-HD).
Please refer to your TV owner’s manual for details about eARC
support for your particular model.
* For 4K TVs, we recommend using an HDMI cable labeled
“High Speed” and “with Ethernet” .
* For 8K TVs, we recommend using an HDMI cable labeled
“Ultra High Speed”.
1. AVR-X580BTE2_QSG_ENG_00A_220613.indd 51. AVR-X580BTE2_QSG_ENG_00A_220613.indd 5 2022/06/13 17:06:232022/06/13 17:06:23

Denon AVR-X580BT Specifications

General

Channels	5.2
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	90W
HDMI Inputs	5
HDMI Outputs	1
4K Pass-through	Yes
4K/60Hz Pass-through	Yes
4K/120Hz Pass-through	No
HDR Support	HDR10, HLG
Bluetooth	Yes
Dolby Vision	Yes
Audio Return Channel (ARC)	Yes
HDMI 2.1	No
HDCP 2.3 support	Yes
FM Tuner	Yes
AM Tuner	Yes
Wi-Fi	No
Dolby Atmos	No
DTS:X	No
Auto Speaker Calibration	No
Dimensions (W x H x D)	434 x 151 x 319 mm
Power Output per Channel	70W (8 ohms, 20 Hz - 20 kHz, 0.08% 2ch driven)
Dolby Audio	Dolby Digital, Dolby Digital Plus, Dolby TrueHD
DTS Audio	DTS-HD Master Audio
